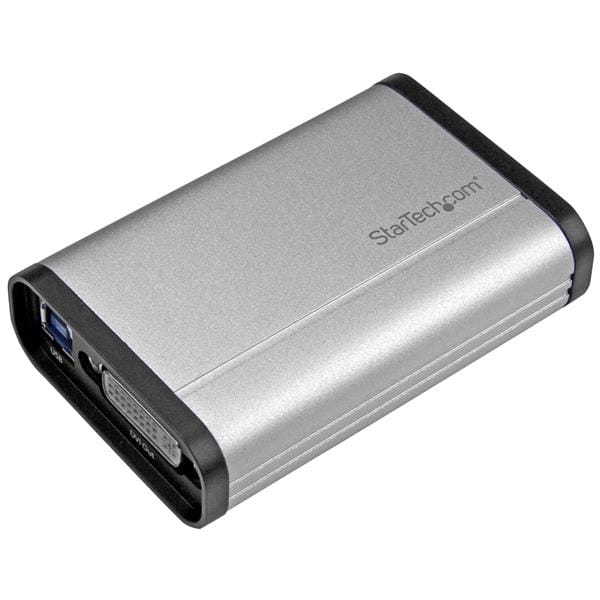

This capture device turns your USB 3.0 computer into a digital video recorder for high-quality DVI video, leveraging USB 3.0 transfer speed to capture raw 1080p video at 60 frames per second. The capture device records video from your DVI source device and also includes a 3.5 mm audio input jack that lets you record the video's accompanying analog audio output, or add your own independent audio source for voice over commentary.
Seamless picture quality at 1080p 60 FPS
Record lossless video at 60 FPS, ensuring every frame of content is saved, unlike 30-frame-per-second capture devices that only catch half the action. 1080p60 exactly matches the output of most computer video cards, which is great for recording the output from your PC, server, or POS station, when creating software training and tutorial videos. With support for 1080p video, you can ensure crystal-clear capture quality at high-definition resolution, and create high-quality video to distribute internally throughout your business or distribution over the internet.
Use your own software, with DirectShow compatibility
This USB capture card is capable of capturing lossless raw video, making it compatible with Microsoft® DirectShow. With raw video capture, you can record video using your preferred third-party DirectShow software such as Open Broadcaster Software (OBS).
H.264 encoding for wide device compatibility
The software that's included with the capture card encodes in H.264 -- the most widely adopted video codec in the world. H.264 encoding capability ensures the video files you save will be compatible with almost any video player, such as the media software on your PC, Mac, iOS or Android™ devices, with no editing or converting needed. H.264 is also widely supported by most software titles, including Adobe Premiere® and Windows Media® Encoder.
The USB32DVCAPRO is backed by a 2-year StarTech.com warranty and free lifetime technical support.
| Connector(s) | |
| Connector A | 3.5 mm Mini-Jack (3 Position) Female Input |
| DVI-I (29 pin) Female Input | |
| Connector B | USB Type-B (9 pin) USB 3.0 Female |
| Environmental | |
| Humidity | 20% to 80% (non-condensing) |
| Operating Temperature | 0?C to 40?C (32?F to 104?F) |
| Storage Temperature | -5?C to 40?C (23?F to 105?F) |
| Hardware | |
| Audio | Yes |
| Converter Type | Format Converter |
| Industry Standards | MPEG4 (H.264) |
| Packaging Information | |
| Shipping (Package) Weight | 0.5 kg [1 lb] |
| Performance | |
| Audio Specifications | 2-channel stereo audio |
| Maximum Analog Resolutions | 1920 x 1080 60 FPS |
| Maximum Digital Resolutions | 1920 x 1080 60 FPS |
| Supported Resolutions | 1920 x 1080, 1280 x 720, 1024 x 768, 800 x 600 |
| Wide Screen Supported | Yes |
| Physical Characteristics | |
| Product Height | 24.3 mm [1 in] |
| Product Length | 92.2 mm [3.6 in] |
| Product Weight | 102 g [3.6 oz] |
| Product Width | 61.1 mm [2.4 in] |
| Power | |
| Power Source | USB-Powered |
| Software | |
| OS Compatibility | Windows? 10, 8.1, 8, 7 |
| Special Notes / Requirements | |
| Note | This video capture device requires a USB 3.0 port (or higher). The video capture device does not work with USB 2.0 ports (or lower). |
| What's in the Box | |
| Included in Package | quick start guide |
| USB 3.0 cable | |
| USB 3.0 capture device for DVI video | |
| Technical details | |
| Internal The product is built in. |
 |
| Host interface Interface that enables a host controller to communicate with a driver. | USB 3.2 Gen 1 (3.1 Gen 1) |
| Interface Interface ports to connect pieces of equipment. USB (Universal Serial Bus) has become the most popular wired interface to connect peripherals. USB 2.0 supports speeds up to 480 Mbit/s (USB 1: 12 Mbit/s). The interface FireWire is also known as the IEEE 1394 standard. Enhanced IDE (EIDE)is sometimes referred to as Fast ATA, Fast IDE or ATA-2. | USB Type-B |
| Chipset Set of electronic components in an integrated circuit that manages the data flow between the processor, memory and peripherals. It is usually found in the motherboard of a computer. Chipsets are usually designed to work with a specific family of microprocessors. Because it controls communications between the processor and external devices, the chipset plays a crucial role in determining system performance. | Mstar MST3363CNK-170 |
| Video capture resolution (max) | 1920 x 1080 pixels |
| Mean time between failures (MTBF) Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism. | 504825 h |
| Product colour The colour e.g. red, blue, green, black, white. | Black,Silver |
| Housing material What the casing of the product is made of. | Aluminum |
| Video | |
| Analog signal format system The supported protocols for exchanging analog signals. | NTSC,PAL 60,PAL M |
| Supported resolutions | 1920 x 1080, 1280 x 720, 1024 x 768, 800 x 600 |
| Maximum frame rate This is the maximum frame rate, also known as frame frequency and frames per second (FPS). It is the frequency (rate) at which an imaging device produces unique consecutive images called frames. The term applies equally well to film and video cameras, computer graphics, and motion capture systems. Frame rate is most often expressed in frames per second (FPS) and is also expressed in progressive scan monitors as hertz (Hz). | 60 fps |
| Audio | |
| Audio support |
 |
| Supported audio channels | 2 |
| File formats | |
| Import video formats supported | H.264,MPEG4 |
| Ports & interfaces | |
| Audio (L/R) in The two sockets (ports) for receiving left audio signal (white cable) and right audio signal (red cable). | 1 |
| DVI-I ports quantity This is the amount of DVI-I interfaces. Digital Visual Interface (DVI) is a video display interface developed by the Digital Display Working Group (DDWG). The digital interface is used to connect a video source to a display device, such as a computer monitor. DVI-I is DVI integrated, which means it can support digital and analog. | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity | 1 |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 61.1 mm |
| Depth The distance from the front to the back of something. | 92.2 mm |
| Height The measurement of the product from head to foot or from base to top. | 24.3 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 102 g |
| Power | |
| USB powered The device can be powered via a USB connection. |
|
| Software | |
| Windows operating systems supported Windows vesions wich can be used with the device. | Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 Pro,Windows 10 Pro x64,Windows 7,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64 |
| Mac compatibility Product can be used with Apple Mac software and/or hardware. |
|
| Mac operating systems supported Mac operating systems e.g. OS X can be used with the device. | Mac OS X 10.11 El Capitan,Mac OS X 10.12 Sierra,Mac OS X 10.13 High Sierra,Mac OS X 10.14 Mojave |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -5 - 40 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Packaging data | |
| Package weight Weight of the packaged product. | 462 g |
| Package height The distance from the top to the bottom of the packaging. | 52 mm |
| Package width The distance from one side of the packaging to the other. | 150 mm |
| Package depth The distance from the front to the back of the packaging. | 217 mm |
| Certificates | |
| RoHS compliance The Restriction of Hazardous Substances (RoHS) Directive aims to restrict certain dangerous substances commonly used in electrical and electronic equipment. Any RoHS compliant product is tested for the presence of Lead (Pb), Cadmium (Cd), Mercury (Hg), Hexavalent chromium (Hex-Cr), Polybrominated biphenyls (PBB), and Polybrominated diphenyl ethers (PBDE). PBB and PBDE are flame retardants used in several plastics. For Cadmium and Hexavalent chromium, there must be less than 0.01% of the substance by weight at raw homogeneous materials level. For Lead, PBB, and PBDE, there must be no more than 0.1% of the material, when calculated by weight at raw homogeneous materials. Any RoHS compliant component must have 100 ppm or less of mercury and the mercury must not have been intentionally added to the component. In the EU, some military and medical equipment are exempt from RoHS compliance. |
|
| Certification | CE, FCC, TAA |
| Packaging content | |
| Cables included | USB |
| Quick installation guide |
|
| SKU | 247016 |
| MPN | USB32DVCAPRO |
| Brand | Startech |
| Product Condition | Brand New/Unused |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://www.startech.com/ |
