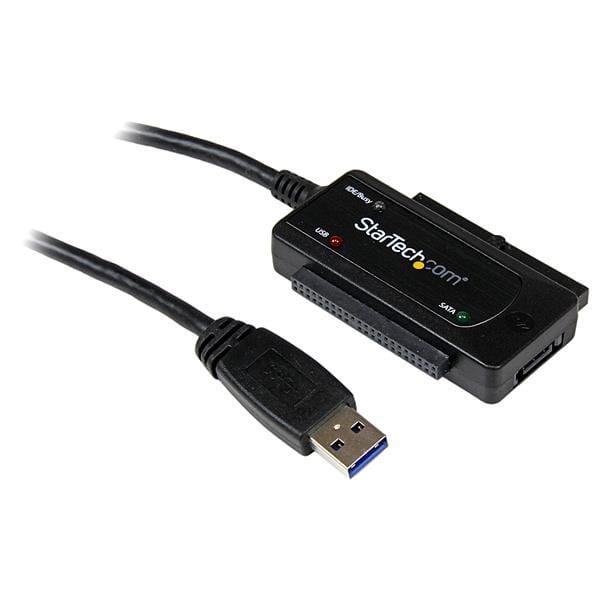

The USB3SSATAIDE USB 3.0 to IDE/SATA Adapter Cable connects any standard 2.5in or 3.5in SATA or IDE hard drive to a computer through an available USB 3.0 Port (Backward compatible with USB 2.0). The adapter lets you connect a bare drive with no enclosure, saving time and hassle.
The USB 3.0 SATA/IDE Adapter lets you externally connect a bare drive with no drive enclosure or HDD dock required, and features LED indicators that allow you to easily monitor status and activity updates.
The adapter cable works with Windows®, Linux, and Mac® computers and does not require any software or driver installation - a true plug-and-play solution for adding cost-effective external storage, or overcoming incompatibility between all hard drives and USB enabled motherboards that may not be SATA or IDE-equipped.
Backed by our 2-year warranty, the USB3SSATAIDE USB 3.0 to IDE/SATA Adapter Cable comes complete with universal adapter and power cords, providing the additional power required to connect 3.5-inch and larger capacity 2.5-inch hard drives.
| Connector(s) | |
| Drive Connectors | IDE (40 Pin, EIDE/PATA) Female |
| IDE (44 Pin, EIDE/PATA, 2.5" HDD) Female | |
| LP4 (4 pin, Molex Large Drive Power) Male | |
| SATA (7 pin, Data) Female | |
| SATA Power (15 pin) Female | |
| Host Connectors | USB Type-A (9 pin) USB 3.0 Male |
| Environmental | |
| Humidity | 5% ~ 85% RH |
| Operating Temperature | 0?C to 50?C (32?F to 122?F) |
| Storage Temperature | -20?C to 60?C (-4?F to 140?F) |
| Hardware | |
| Bus Type | USB 3.0 |
| Chipset ID | Innostor - IS611 |
| Compatible Drive Types | SATA & IDE |
| Drive Size | 2.5in & 3.5in |
| Interface | SATA & IDE |
| Number of Drives | 1 |
| Indicators | |
| LED Indicators | IDE Detect/Activity |
| SATA Detect/Activity | |
| USB Link | |
| Packaging Information | |
| Shipping (Package) Weight | 653 g [23.1 oz] |
| Performance | |
| ATAPI Support | Yes |
| Maximum Data Transfer Rate | 4.8 Gbps |
| MTBF | 35,000 hours |
| Type and Rate | USB 3.0 - 4.8 Gbit/s |
| Physical Characteristics | |
| Color | Black |
| Enclosure Type | Plastic |
| Product Height | 18 mm [0.7 in] |
| Product Length | 70 mm [2.8 in] |
| Product Weight | 62 g [2.2 oz] |
| Product Width | 43 mm [1.7 in] |
| Power | |
| Output Current | 2A |
| Power Source | AC Adapter Included |
| Software | |
| OS Compatibility | OS independent; No software or drivers required |
| Special Notes / Requirements | |
| Note | Backwards compatible with USB 1.1 standard, but not recommended due to slow transfer rate. |
| What's in the Box | |
| Included in Package | instruction manual |
| power adapter breakout cable | |
| SATA data cable | |
| universal power adapter (NA/JP, UK, EU, AU) | |
| USB 3.0 to SATA/IDE converter | |
| Ports & interfaces | |
| Connector 1 This is the first connector in the device. | USB 3.0 A |
| Connector 2 This is the second connector in the device. | IDE/SATA/LP4 |
| Connector gender To distinguish parts on a cable interface, connectors are grouped under genders. Sockets or jacks are considered to be female whilst plugs are referred to as male. | Male/Female |
| Performance | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Housing material What the casing of the product is made of. | Plastic |
| Data transfer rate Rate at which data can be transferred. Usually expressed in units per second. May vary with network configurations. | 4.8 Gbit/s |
| Chipset Set of electronic components in an integrated circuit that manages the data flow between the processor, memory and peripherals. It is usually found in the motherboard of a computer. Chipsets are usually designed to work with a specific family of microprocessors. Because it controls communications between the processor and external devices, the chipset plays a crucial role in determining system performance. | Innostor - IS611 |
| Hot-swap |
 |
| LED indicators | Activity,Link |
| Plug and Play Indicates whether this product supports is "plug and play". Plug and play is hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration. |
|
| RoHS compliance The Restriction of Hazardous Substances (RoHS) Directive aims to restrict certain dangerous substances commonly used in electrical and electronic equipment. Any RoHS compliant product is tested for the presence of Lead (Pb), Cadmium (Cd), Mercury (Hg), Hexavalent chromium (Hex-Cr), Polybrominated biphenyls (PBB), and Polybrominated diphenyl ethers (PBDE). PBB and PBDE are flame retardants used in several plastics. For Cadmium and Hexavalent chromium, there must be less than 0.01% of the substance by weight at raw homogeneous materials level. For Lead, PBB, and PBDE, there must be no more than 0.1% of the material, when calculated by weight at raw homogeneous materials. Any RoHS compliant component must have 100 ppm or less of mercury and the mercury must not have been intentionally added to the component. In the EU, some military and medical equipment are exempt from RoHS compliance. |
|
| Certification | CE, FCC |
| Power | |
| Output current | 2000 mA |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 50 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Relative humidity | 5 - 85% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 70 mm |
| Depth The distance from the front to the back of something. | 43 mm |
| Height The measurement of the product from head to foot or from base to top. | 18 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 62 g |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 215 mm |
| Package depth The distance from the front to the back of the packaging. | 150 mm |
| Package height The distance from the top to the bottom of the packaging. | 52 mm |
| Package weight Weight of the packaged product. | 419 g |
| Package type The type of product package e.g. box. | Box |
| Packaging content | |
| AC adapter included |
|
| Cables included | AC,SATA |
| Manual |
|
| Other features | |
| Interface Interface ports to connect pieces of equipment. USB (Universal Serial Bus) has become the most popular wired interface to connect peripherals. USB 2.0 supports speeds up to 480 Mbit/s (USB 1: 12 Mbit/s). The interface FireWire is also known as the IEEE 1394 standard. Enhanced IDE (EIDE)is sometimes referred to as Fast ATA, Fast IDE or ATA-2. | USB 3.0 |
| SKU | 247310 |
| MPN | USB3SSATAIDE |
| Brand | Startech |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://www.startech.com/ |
