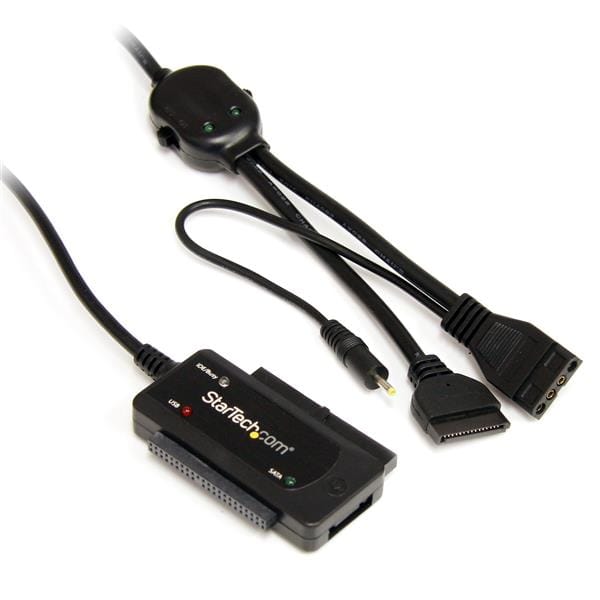

This USB 2.0 to IDE/SATA Adapter Cable connects any standard 2.5in or 3.5in SATA or IDE hard drive to a computer through USB 2.0. The adapter lets you connect a bare drive with no enclosure, saving time and hassle.
The USB 2.0 SATA/IDE Adapter features LED indicators that allow you to easily monitor status and activity updates, and is designed for durability and reliability.
| Connector(s) | |
| Drive Connectors | IDE (40 Pin, EIDE/PATA) Female |
| IDE (44 Pin, EIDE/PATA, 2.5" HDD) Female | |
| LP4 (4 pin, Molex Large Drive Power) Female | |
| SATA (7 pin, Data) Plug | |
| SATA Power (15 pin) Receptacle | |
| Host Connectors | USB Type-A (4 pin) USB 2.0 Male |
| Hardware | |
| Chipset ID | JMicron - JM20337 |
| Compatible Drive Types | SATA & IDE |
| Drive Size | 2.5in & 3.5in |
| Indicators | |
| LED Indicators | IDE Detect/Activity |
| SATA Detect/Activity | |
| USB Link | |
| Packaging Information | |
| Shipping (Package) Weight | 456 g [16.1 oz] |
| Performance | |
| ATAPI Support | Yes |
| Maximum Data Transfer Rate | 480 Mbps |
| Type and Rate | USB 2.0 - 480 Mbit/s |
| Physical Characteristics | |
| Color | Black |
| Enclosure Type | Plastic |
| Product Height | 15 mm [0.6 in] |
| Product Length | 70 mm [2.8 in] |
| Product Weight | 54 g [1.9 oz] |
| Product Width | 43 mm [1.7 in] |
| Power | |
| Input Current | 1A |
| Input Voltage | 110V-240V AC |
| Output Current | 2A |
| Output Voltage | 12/5V DC |
| Plug Type | Custom |
| Power Consumption (In Watts) | 24 |
| Power Source | AC Adapter Included |
| Software | |
| OS Compatibility | OS independent; No software or drivers required |
| Special Notes / Requirements | |
| Note | Backwards compatible with USB 1.1 standard, but not recommended due to slow transfer rate. Tested with 6TB 4Kn 7200 RPM drive in Mac OS 10.12 and Windows 10 |
| What's in the Box | |
| Included in Package | instruction manual |
| power adapter breakout cable | |
| SATA data cable | |
| universal power adapter (NA/JP, UK, EU, AU) | |
| USB 2.0 to SATA/IDE converter | |
| Ports & interfaces | |
| Connector 1 This is the first connector in the device. | USB A |
| Connector 2 This is the second connector in the device. | IDE(40-pin) + IDE(44-pin)+ LP4 (4-pin) + SATA (7-pin) + SATA (15-pin) |
| Connector gender To distinguish parts on a cable interface, connectors are grouped under genders. Sockets or jacks are considered to be female whilst plugs are referred to as male. | Male/Female |
| Connector(s) | 1 x SATA Data 7 pin, 1 x IDE 40 pin, 1 x IDE 44, 1 x SATA, 1 x LP4 |
| Adapter type | USB 2.0 - IDE/SATA |
| Performance | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Housing material What the casing of the product is made of. | Plastic |
| Data transfer rate Rate at which data can be transferred. Usually expressed in units per second. May vary with network configurations. | 0.48 Gbit/s |
| Chipset Set of electronic components in an integrated circuit that manages the data flow between the processor, memory and peripherals. It is usually found in the motherboard of a computer. Chipsets are usually designed to work with a specific family of microprocessors. Because it controls communications between the processor and external devices, the chipset plays a crucial role in determining system performance. | JMicron JM20337 |
| LED indicators | Activity,Link |
| RoHS compliance The Restriction of Hazardous Substances (RoHS) Directive aims to restrict certain dangerous substances commonly used in electrical and electronic equipment. Any RoHS compliant product is tested for the presence of Lead (Pb), Cadmium (Cd), Mercury (Hg), Hexavalent chromium (Hex-Cr), Polybrominated biphenyls (PBB), and Polybrominated diphenyl ethers (PBDE). PBB and PBDE are flame retardants used in several plastics. For Cadmium and Hexavalent chromium, there must be less than 0.01% of the substance by weight at raw homogeneous materials level. For Lead, PBB, and PBDE, there must be no more than 0.1% of the material, when calculated by weight at raw homogeneous materials. Any RoHS compliant component must have 100 ppm or less of mercury and the mercury must not have been intentionally added to the component. In the EU, some military and medical equipment are exempt from RoHS compliance. |
 |
| Certification | CE, FCC |
| Compatible operating systems List of desktop operating systems tested as compatible with this product. | Windows 8/8.1 (32/64bit), 7 (32/64bit), Server 2008 (32/64), Vista(32/64), Server 2003 (32/64) XP(32/64), 2000, Apple Mavericks (10.9) OSX Mountain Lion (10.8), Lion (10.7), Snow Leopard (10.6), Linux |
| Power | |
| Input voltage The voltage (V) which is required to power the product. | 110 - 240 V |
| Output voltage | 12 V |
| Output current | 2000 mA |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 43 mm |
| Depth The distance from the front to the back of something. | 70 mm |
| Height The measurement of the product from head to foot or from base to top. | 15 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 54 g |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 149 mm |
| Package depth The distance from the front to the back of the packaging. | 215 mm |
| Package height The distance from the top to the bottom of the packaging. | 53 mm |
| Package weight Weight of the packaged product. | 410 g |
| Package length | 7.48 |
| Packaging content | |
| AC adapter included |
|
| Cables included | SATA |
| Manual |
|
| Other features | |
| Technical features | 480 Mbits/Sec |
| SKU | 246862 |
| MPN | USB2SATAIDE |
| Brand | Startech |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://www.startech.com/ |
