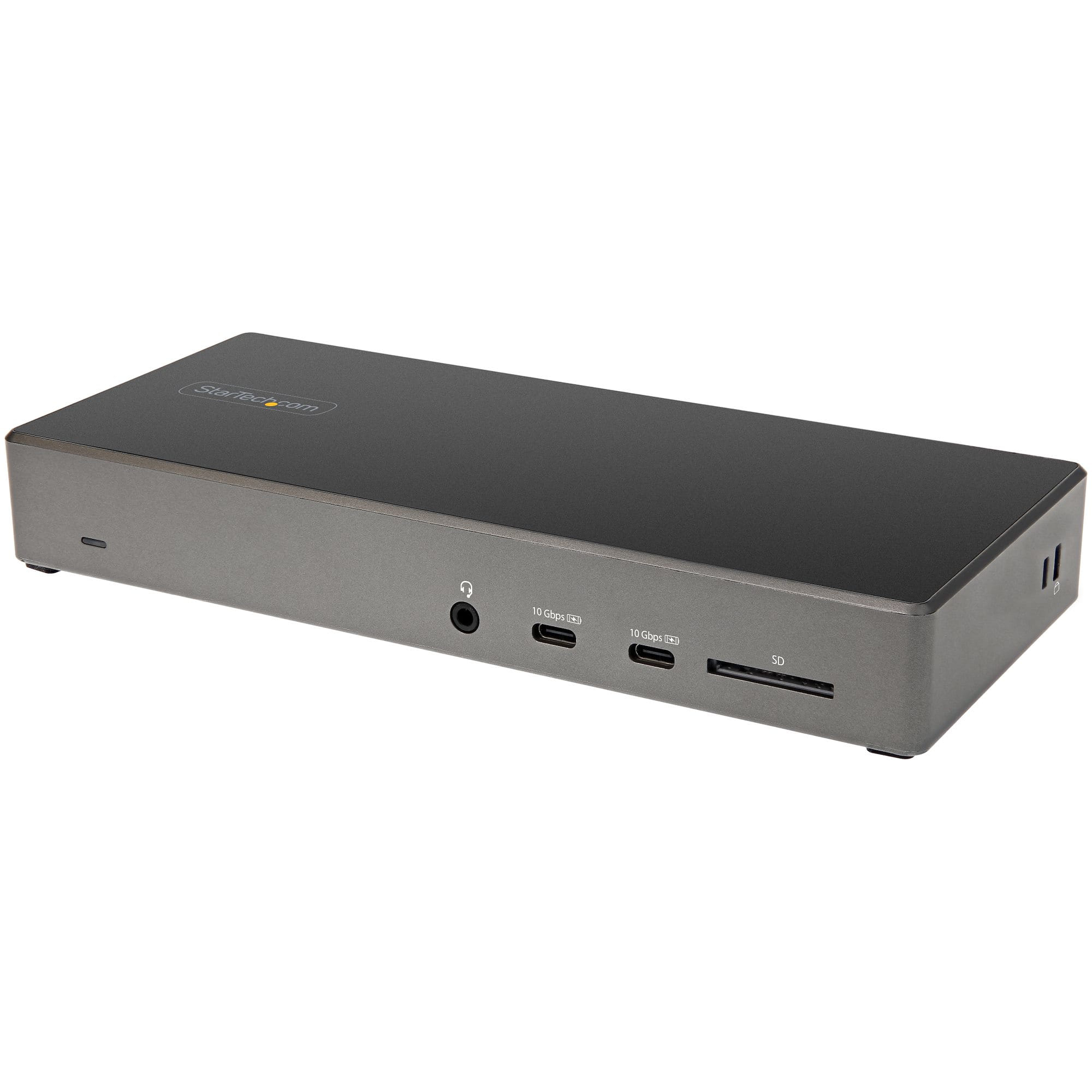

StarTech.com USB C Dock - Triple 4K Monitor USB Type-C Docking Station - 100W Power Delivery - DP 1.4 Alt Mode & DSC, 2x DisplayPort 1.4/HDMI 2.0 - 6xUSB (2x 10Gbps), SD - Windows/Chrome, Wired, USB 3.2 Gen 2 (3.1 Gen 2) Type-C, 100 W, 3.5 mm, 10,100,1000 Mbit/s, 10BASE-T,100BASE-TX,1000BASE-T
USB Type-C Docking Station Triple 4K with DP 1.4 & HDMI 2.0 100W PD 6x Downstream USB PortsThis USB-C Gen 2 10Gbps docking station turns your USB-C or Thunderbolt 3 Windows laptop or Chromebook into a powerful workstation. A USB 3.2 Gen 2 Type-C dock features everything you need, from triple video outputs up to 4K 60Hz to 10Gbps USB-C & USB-A downstream peripheral ports to 100W Power Delivery.HDMI & DisplayPort for Multiple Monitor OutputsThis USB-C Gen 2 docking station with DP 1.4 and HDMI 2.0 HBR3 support, is a perfect choice for dual or triple monitor setup, supporting up to triple 4K 30Hz nearly uncompressed video resolution output , with two DisplayPort and one HDMI outputs. Maximum dual and triple 4K display performance is supported on USB-C 11th Gen Intel-based (DP 1.4 HBR3 with DSC support) Windows Thunderbolt 3 or USB-C laptops, but backwards compatibility to older laptop generations and lower resolution monitor requirements.DP 1.4 HBR3 with DSC EnabledDP 1.4 HBR3 (without DSC)DP 1.2 HBR2Triple DisplayUp to 4096 x 2160 @ 30HzUp to 1920 x 1080 @ 60HzUp to 1600 x 900 @ 60HzDual DisplayUp to 4096 x 2160 @ 60Hz**HDMI port + DP port or 2 DP portsUp to 2560 x 1440 @ 60HzUp to 1920 x 1080 @ 60HzSingle DisplayUp to 4096 x 2160 @ 60HzUp to 3840 x 2160 @ 60HzUp to 3840 x 2160 @ 30HzPower & Charge with 100W Power DeliveryPower and charge USB-C/Thunderbolt 3 workstation laptops & ultrabooks with 100 watt power delivery, to keep high performance laptops sufficiently charged during heavy productivity usage.Charge smartphones and other devices with USB-C downstream charging ports featuring BC 1.2 charging specification. Fast-charge ports support always-on charging so devices will charge whether or not a host laptop is connected.Integrated 6-Port USB Hub & SD Card ReaderThis USB-C Gen 2 docking station features 6 downstream USB ports in total to connect USB peripherals and an SD (4.0) card reader for media storage. 2x USB-C 3.2 Gen 2 - 10 Gbps (BC 1.2 Fast-Charge + Aways-On) 2x USB-A 3.2 Gen 1 - 5 Gbps 2x USB-A 2.0 - 480 Mbps SD 4.0 Card ReaderAlso included, is a gigabit Ethernet port with PXE Boot, as well as 4-position TRRS stereo audio for a headset and mic.Additional Security FeaturesThis USB-C docking station comes with plenty of security features two K-slots for a Kensington style laptop lock.Enhance Productivity and Device Management with the StarTech.com Connectivity Tools ApplicationDeveloped to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes: Advanced Windows Layout Utility : To setup and save custom windows layouts. Mac Address Pass-Through Utility : To improve network security. USB Event Monitoring Utility : To track and log connected USB devices Wi-Fi Auto Switch Utility : Enabling users to quickly access faster network speeds via wired LAN.For more information and to download the StarTech.com Connectivity Tools application, please visit: www.StarTech.com/Connectivity-ToolsThe StarTech.com Advantage
| Ports & interfaces | |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| Host interface Interface that enables a host controller to communicate with a driver. | USB 3.2 Gen 2 (3.1 Gen 2) Type-C |
| USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black. | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity Number of USB 3.1 (3.1 Gen 2) ports with Type-C connector. USB 3.1 (3.1 Gen 2) is USB interface version which supports transfer rate up to 10 Gbit/s (SuperSpeed+). USB Type-C connector has symmetrical design architecture and compatible with Thunderbolt 3 interface. | 2 |
| USB Power Delivery |
 |
| USB Power Delivery up to | 100 W |
| HDMI ports quantity The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards. | 1 |
| HDMI version | 2.0 |
| DisplayPorts quantity Number of DisplayPorts. A DisplayPort is a digital display interface developed by the Video Electronics Standards Association (VESA). The interface is primarily used to connect a video source to a display device such as a computer monitor, though it can also be used to carry audio, USB, and other forms of data. | 2 |
| DisplayPort version | 1.4 |
| Combo headphone/mic port |
|
| Headphone outputs Number of sockets /ports where headphones are connected. | 1 |
| Headphone connectivity How headphones connect to a device e.g. wirelessly or via a cable and connector. | 3.5 mm |
| DC-in jack The socket/plug where the DC electricity supply connects to the device. |
|
| Network | |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
|
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 1 |
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 10,100,1000 Mbit/s |
| Copper ethernet cabling technology | 10BASE-T,100BASE-TX,1000BASE-T |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.3ab,IEEE 802.3i,IEEE 802.3u |
| Performance | |
| Card reader integrated The device includes a card reader e.g. a card reader in the disk bay of a computer or thin client to permit log-on using smart/pin cards. |
|
| Compatible memory cards Types of memory cards which can be used with this product. | MMC,SD |
| HD type Type of supported High Definition (e.g. Full HD, 4K Ultra HD). | 4K Ultra HD |
| Maximum digital resolution | 3840 x 2160 pixels |
| Number of displays supported The number of displays that can be used with this product. | 3 |
| Maximum refresh rate | 60 Hz |
| Cable lock slot Holes on the edge of devices through which a cable lock can be passed, so the device can be locked to a desk etc. |
|
| Product colour The colour e.g. red, blue, green, black, white. | Black, Grey |
| LED indicators |
|
| Certification | CE, FCC, RoHS |
| Power | |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
| Power plug type | Type M |
| Compatible power plug types | AU, JP, US |
| Software | |
| Windows operating systems supported Windows vesions wich can be used with the device. | Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 IoT Enterprise,Windows 10 Pro,Windows 10 Pro x64,Windows 10 x64,Windows 8.1,Windows 8.1 Enterprise,Windows 8.1 Enterprise x64,Windows 8.1 Pro,Windows 8.1 Pro x64,Windows 8.1 x64 |
| Mac operating systems supported Mac operating systems e.g. OS X can be used with the device. | Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur |
| Mobile operating systems supported The operating systems e.g. Android, iOS, that can be used with the mobile device. | Android 10,Android 9.0,iPadOS |
| Other operating systems supported | Chrome |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 90 mm |
| Depth The distance from the front to the back of something. | 210 mm |
| Height The measurement of the product from head to foot or from base to top. | 30 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 300 g |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 150 mm |
| Package depth The distance from the front to the back of the packaging. | 270 mm |
| Package height The distance from the top to the bottom of the packaging. | 94 mm |
| Package weight Weight of the packaged product. | 1.4 kg |
| Packaging content | |
| Cables included | USB Type-C to USB Type-C |
| AC adapter included |
|
| Quick start guide Instructions, either online, as a computer program or in paper form, to allow you to set up and start using the product quickly. |
|
| Logistics data | |
| Master (outer) case width | 282 mm |
| Master (outer) case length | 390 mm |
| Master (outer) case height | 195 mm |
| Products per shipping (inner) case | 4 pc(s) |
| Other features | |
| Cable length How long the cable is. | 1 m |
| Chipset Set of electronic components in an integrated circuit that manages the data flow between the processor, memory and peripherals. It is usually found in the motherboard of a computer. Chipsets are usually designed to work with a specific family of microprocessors. Because it controls communications between the processor and external devices, the chipset plays a crucial role in determining system performance. | Cypress - CYPD4236, Synaptics - VMM5320BJG-R |
| SKU | 597366 |
| MPN | DK31C2DHSPD |
| Brand | Startech |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 3 Years Warranty |
| Warranty Contact | https://www.startech.com/ |
