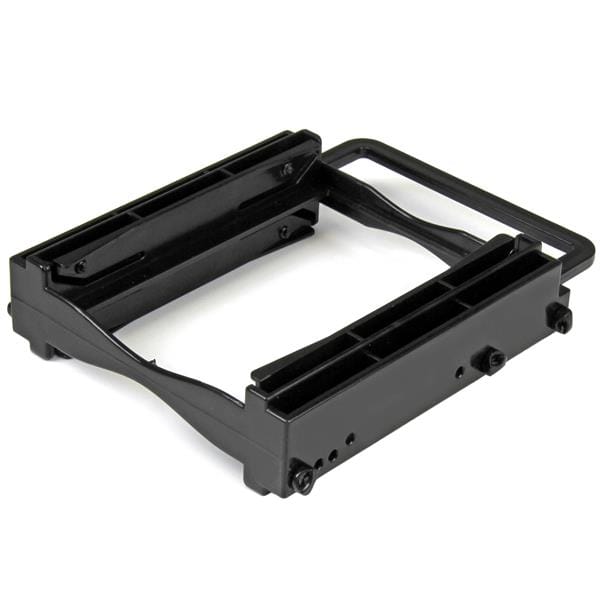

Install your drives in no time - with no tools required. This tool-less mounting bracket lets you mount two 2.5? solid-state drives or hard drives into a 3.5? bay in your desktop computer.
Easy, tool-less drive installation
The bracket design lets you quickly secure your drives into the mounting bracket, without using tools. Then you simply put the bracket into a 3.5? drive bay in your computer and hold it in place using the tool-less pegs.
Wide compatibility
Designed for versatility, the tool-less mounting bracket supports a wide range of 2.5? solid-state drives or hard drives, ranging from 5 to 12.5 mm in height.
Designed for trouble-free use
The lightweight mounting bracket is designed for trouble-free, reliable performance. BRACKET225PT is backed by a StarTech.com 2-year warranty and free lifetime technical support.
| Hardware | |
| Compatible Drive Types | SATA & IDE |
| Drive Installation | Fixed |
| Drive Size | 2.5in |
| Number of 2.5 inch bays | 2 |
| Supported Drive Height(s) | 12.5mm |
| 5mm | |
| 7mm | |
| 9.5mm | |
| Packaging Information | |
| Shipping (Package) Weight | 81 g [2.9 oz] |
| Physical Characteristics | |
| Color | Black |
| Enclosure Type | Plastic |
| Max Drive Height | 12.5 mm [0.5 in] |
| Product Height | 29.5 mm [1.2 in] |
| Product Length | 132 mm [5.2 in] |
| Product Weight | 52 g [1.8 oz] |
| Product Width | 100 mm [3.9 in] |
| What's in the Box | |
| Included in Package | dual 2.5" SSD/HDD to 3.5" mounting bracket |
| mounting pegs for bracket installation | |
| quick start guide | |
| Features | |
| Size (imperial) Physical dimension. | 8.89 cm (3.5") |
| Type Characteristics of the device. | Bezel panel |
| Number of HDDs supported The total number of hard drives that can be used in/with this product. | 2 |
| HDD size The amount of data that the hard drive can store. | 2.5" |
| HDD interface The way that a hard disk drive (HDD) is connected to the rest of the computer through a 'bus' such as ATA or SCSI. | IDE/ATA,Serial ATA |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Material The material from which a thing is or can be made e.g. wood, plastic. | Plastic |
| Certification | CE, REACH |
| RoHS compliance The Restriction of Hazardous Substances (RoHS) Directive aims to restrict certain dangerous substances commonly used in electrical and electronic equipment. Any RoHS compliant product is tested for the presence of Lead (Pb), Cadmium (Cd), Mercury (Hg), Hexavalent chromium (Hex-Cr), Polybrominated biphenyls (PBB), and Polybrominated diphenyl ethers (PBDE). PBB and PBDE are flame retardants used in several plastics. For Cadmium and Hexavalent chromium, there must be less than 0.01% of the substance by weight at raw homogeneous materials level. For Lead, PBB, and PBDE, there must be no more than 0.1% of the material, when calculated by weight at raw homogeneous materials. Any RoHS compliant component must have 100 ppm or less of mercury and the mercury must not have been intentionally added to the component. In the EU, some military and medical equipment are exempt from RoHS compliance. |
 |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 100 mm |
| Depth The distance from the front to the back of something. | 132 mm |
| Height The measurement of the product from head to foot or from base to top. | 29.5 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 52 g |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 109 mm |
| Package depth The distance from the front to the back of the packaging. | 143 mm |
| Package height The distance from the top to the bottom of the packaging. | 37 mm |
| Package weight Weight of the packaged product. | 81 g |
| Packaging content | |
| Quick start guide Instructions, either online, as a computer program or in paper form, to allow you to set up and start using the product quickly. |
|
| Number of pegs | 6 |
| SKU | 239862 |
| MPN | BRACKET225PT |
| Brand | Startech |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://www.startech.com/ |
