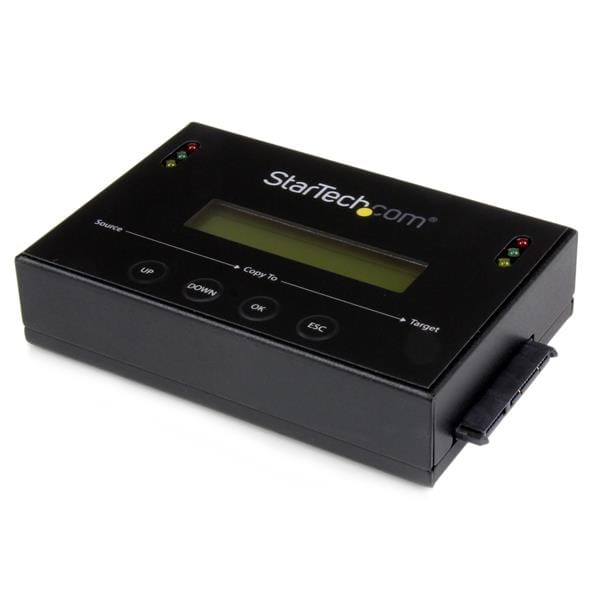

The SATDUP11IMG standalone SATA hard drive duplicator, lets you create an exact duplicate of a SATA hard drive (HDD) / solid state drive (SSD), or create a single backup library drive containing multiple images you can copy to additional drives at any time.
Fast, Simple Drive Duplication
Reduce clutter with the SATDUP11IMG eliminating the number of drives required when creating backups of multiple unique drive images. Using a single backup library drive, you can store several unique drive images on a single SSD / HDD, ensuring fast duplication at 6 GBpm and minimal clutter.This is an ideal solution if you frequently re-image different computer systems, because it means you'll only have to carry a single backup library drive to restore multiple drive images onto different systems.
Hassle-free Performance
The versatile duplicator also offers standard one-to-one drive duplication in three different modes: file & system copy, all partitions copy and whole copy. This is ideal for one-time drive duplication, eliminating the hassle of creating a drive image for a one-time project.
Intuitive Operation
With an easy-to-read LCD display and intuitive four-button menu operation, the SATDUP11IMG ensures hassle-free setup and control. The menu gives you push-button access to many value-added features that ensure simple task management such as: drive to drive duplication, drive to Image library backup and restore, and many more. It also provides numerous advanced setup options for experienced users.
For added compatibility with different drive types in duplication, the SATDUP11IMG supports the use of various drive adapters. The below list of StarTech.com adapters have been specifically tested, to ensure compatibility with this drive duplicator:
2.5/3.5in IDE drives - SAT2IDEADP
mSATA drives - SAT2MSAT25
M.2 (NGFF) drives - SAT32M225
The SATDUP11IMG is TAA compliant and backed by a 2-year StarTech.com warranty and lifetime technical support.
| Connector(s) | |
| Drive Connectors | SATA Data & Power Combo (7+15 pin) Receptacle |
| Environmental | |
| Humidity | 20% ~ 80% |
| Operating Temperature | 5C to 45C (41F to 113F) |
| Storage Temperature | -20C to -85C (-4F to 185F) |
| Hardware | |
| Compatible Drive Types | SATA |
| Drive Size | 2.5in & 3.5in |
| Interface | SATA |
| Number of Drives | 2 |
| Indicators | |
| LED Indicators | Destination Drive Activity Indicator |
| Destination Drive Error Indicator | |
| Destination Drive Power Indicator | |
| LCD Display | |
| Source Drive Activity Indicator | |
| Source Drive Error Indicator | |
| Source Drive Power Indicator | |
| Packaging Information | |
| Shipping (Package) Weight | 1.7 kg [3.8 lb] |
| Performance | |
| Max Drive Capacity | Currently tested with up to 6TB 7200 RPM 3.5" hard drives per bay and 1TB 7200 RPM 2.5" hard drives per bay |
| Maximum Data Transfer Rate | 6 Gbps |
| Type and Rate | SATA III (6 Gbps) |
| Physical Characteristics | |
| Product Height | 28 mm [1.1 in] |
| Product Length | 129 mm [5.1 in] |
| Product Weight | 350 g [12.4 oz] |
| Product Width | 77 mm [3 in] |
| Power | |
| Center Tip Polarity | Positive |
| Input Current | 1.4A |
| Input Voltage | 100 ~ 240 AC |
| Output Current | 5A |
| Output Voltage | 12 DC |
| Power Consumption (In Watts) | 60 |
| Power Source | AC Adapter Included |
| Software | |
| OS Compatibility | OS independent; No software or drivers required |
| Special Notes / Requirements | |
| Note | For duplication, the destination drive must be of equal or greater size than the source drive. |
| What's in the Box | |
| Included in Package | 1:1 HDD/SSD Duplicator |
| eSATA + 12V power cable (Type M power connector) | |
| eSATA + 5V power cable (Type F power connector) | |
| HDD/SSD pads | |
| Instruction Manual | |
| Long SATA cable | |
| Short SATA cable | |
| Universal power adapter (UK/NA/EU) | |
| Technical details | |
| Product type The sub-category of the product. | HDD/SSD duplicator |
| Interface Interface ports to connect pieces of equipment. USB (Universal Serial Bus) has become the most popular wired interface to connect peripherals. USB 2.0 supports speeds up to 480 Mbit/s (USB 1: 12 Mbit/s). The interface FireWire is also known as the IEEE 1394 standard. Enhanced IDE (EIDE)is sometimes referred to as Fast ATA, Fast IDE or ATA-2. | SATA |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| LED indicators | Activity,Power |
| Hard drive | |
| Supported HDD sizes The size of the hard disk drives which can be used by the device. | 2.5,3.5" |
| Supported HDD interfaces The type of interfaces that can be used with the hard disk drive e.g. parallel ATA (PATA), serial ATA (SATA), SCSI. | Serial ATA,Serial ATA II,Serial ATA III |
| Power | |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
| Input current | 1.4 A |
| Output current | 5 A |
| Included power plug types | EU,NA,UK |
| Operational conditions | |
| Operating relative humidity (H-H) | 20 - 80% |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 5 - 45 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 85 °C |
| Weight & dimensions | |
| Dimensions (WxDxH) Dimensions of the product (Width x Depth x Height). | 77 x 129 x 28 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 358 g |
| Certificates | |
| RoHS compliance The Restriction of Hazardous Substances (RoHS) Directive aims to restrict certain dangerous substances commonly used in electrical and electronic equipment. Any RoHS compliant product is tested for the presence of Lead (Pb), Cadmium (Cd), Mercury (Hg), Hexavalent chromium (Hex-Cr), Polybrominated biphenyls (PBB), and Polybrominated diphenyl ethers (PBDE). PBB and PBDE are flame retardants used in several plastics. For Cadmium and Hexavalent chromium, there must be less than 0.01% of the substance by weight at raw homogeneous materials level. For Lead, PBB, and PBDE, there must be no more than 0.1% of the material, when calculated by weight at raw homogeneous materials. Any RoHS compliant component must have 100 ppm or less of mercury and the mercury must not have been intentionally added to the component. In the EU, some military and medical equipment are exempt from RoHS compliance. |
 |
| Certification | CE, FCC |
| Packaging data | |
| Package dimensions (WxDxH) Dimensions of the packaged product (Width x Depth x Height). | 118 x 260 x 184 mm |
| Package weight Weight of the packaged product. | 1.71 kg |
| Package height The distance from the top to the bottom of the packaging. | 119 mm |
| Package width The distance from one side of the packaging to the other. | 185 mm |
| Cables included | SATA,eSATA |
| AC adapter included |
|
| Manual |
|
| Display | |
| Display The description of display that can includes display type, resolution, size etc. | LCD |
| SKU | 245028 |
| MPN | SATDUP11IMG |
| Brand | Startech |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://www.startech.com/ |
