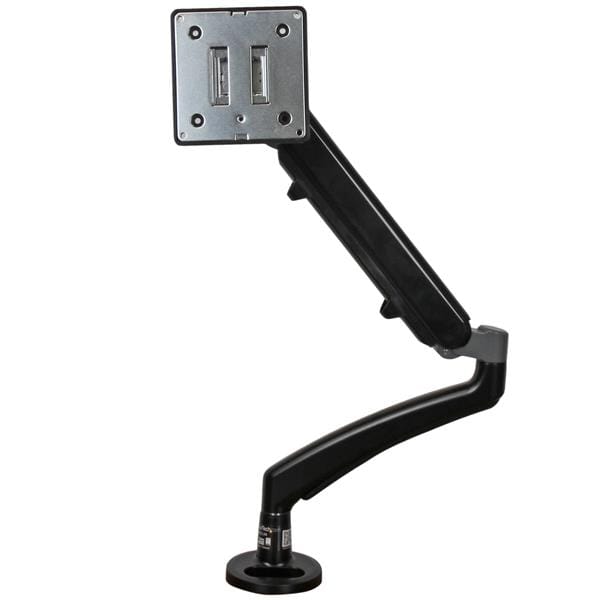

This slim, articulating monitor arm lets you mount a flat-panel display on your desk or table, with dynamic adjustments that make it easy to position your monitor for the perfect viewing angle and optimal comfort. This TAA compliant product adheres to the requirements of the US Federal Trade Agreements Act (TAA), allowing government GSA Schedule purchases.
The versatile monitor arm lets you extend, tilt, pan, swivel and pivot your display with a full range of motion across multiple axes, and features spring-assisted height adjustments for effortless positioning. For viewing longer pages or blocks of code without having to scroll down your screen, the LCD arm also supports simple landscape-to-portrait display rotation.
With a stylish, slim design that looks great and takes up only a small amount of desk space, the monitor arm gives you the flexibility to locate your display as needed while reclaiming valuable workspace on your desk. Mounting your display above the desk surface enables you to adjust your display height, position and viewing angles easily, for an ergonomic work environment.
Supporting 12 - 26" displays up to a maximum weight capacity of 15lbs (7kg), the monitor-mounting arm holds your display with ease, and integrates a cable management channel to keep things neat. For added installation flexibility, the included mounting hardware can either clamp to the side of your desk / table or mount through a grommet hole.
The StarTech.com ARMSLIM monitor arm is backed by a StarTech.com 2-year warranty and free, lifetime technical support.
| Hardware | |
| # of Displays Supported | 1 |
| Articulating | Yes |
| Height Adjustment | One-Touch (Spring Assisted) |
| Mounting Options | Desk & Grommet Clamp |
| VESA Hole Pattern(s) | 100x100 mm |
| 75x75 mm | |
| Packaging Information | |
| Shipping (Package) Weight | 4.2 kg [9.4 lb] |
| Performance | |
| Display Rotation | +/- 90? |
| Height Adjustment | Yes |
| Maximum Arm Extension | 596 mm [23.5 in] |
| Maximum Display Size | 26in |
| Mounting Surface Thickness | 0.78 - 4.33in (20 - 110mm) |
| Pan | 360? |
| Swivel / Pivot | 180? around the support post 360? at the elbow |
| Tilt | +90? / -65? |
| Weight Capacity | 7 kg [15.5 lb] |
| Physical Characteristics | |
| Color | Black |
| Enclosure Type | Steel and Plastic |
| Product Weight | 2 kg [4.4 lb] |
| What's in the Box | |
| Included in Package | 2-in-1 Desk / Grommet Clamp |
| 3mm Allen Wrench | |
| 6mm Allen Wrench | |
| Articulating Monitor Arm | |
| Instruction Manual | |
| Thumb Screws | |
| Mounting | |
| Minimum screen size compatibility The minimum screen size which can be used with this product. | 30.5 cm (12") |
| Maximum weight capacity The maximum weight that the product is designed to hold/store. | 7 kg |
| Maximum screen size compatibility The maximum screen size which can be used with this product. | 86.4 cm (34") |
| Mounting What size the mounting head of the product is, to couple it with a camera. | Clamp |
| Minimum VESA mount | 75 x 75 mm |
| Maximum VESA mount | 100 x 100 mm |
| Number of displays supported The number of displays that can be used with this product. | 1 |
| Mounting type Type of mounting e.g. wall mounting. | Desk |
| Desk thickness (min) | 2 cm |
| Desk thickness (max) | 10 cm |
| Distance to the wall (max) | 59.6 cm |
| Ergonomics | |
| Height adjustment The part of the device that can be adjusted to change the height. |
 |
| Tilt angle range | -65 - 90° |
| Swivel angle | 360° |
| Angle of rotation | 90° |
| Pivot angle | 0 - 360° |
| Pan range | 0 - 360° |
| Cord management |
|
| Design | |
| Housing material What the casing of the product is made of. | Plastic,Steel |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| RoHS compliance The Restriction of Hazardous Substances (RoHS) Directive aims to restrict certain dangerous substances commonly used in electrical and electronic equipment. Any RoHS compliant product is tested for the presence of Lead (Pb), Cadmium (Cd), Mercury (Hg), Hexavalent chromium (Hex-Cr), Polybrominated biphenyls (PBB), and Polybrominated diphenyl ethers (PBDE). PBB and PBDE are flame retardants used in several plastics. For Cadmium and Hexavalent chromium, there must be less than 0.01% of the substance by weight at raw homogeneous materials level. For Lead, PBB, and PBDE, there must be no more than 0.1% of the material, when calculated by weight at raw homogeneous materials. Any RoHS compliant component must have 100 ppm or less of mercury and the mercury must not have been intentionally added to the component. In the EU, some military and medical equipment are exempt from RoHS compliance. |
|
| Certification | TAA, REACH, CE |
| Weight & dimensions | |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 3.2 kg |
| Package width The distance from one side of the packaging to the other. | 348 mm |
| Package depth The distance from the front to the back of the packaging. | 461 mm |
| Package height The distance from the top to the bottom of the packaging. | 129 mm |
| Package weight Weight of the packaged product. | 4.2 kg |
| Packaging content | |
| Wrench included |
|
| Clamp included |
|
| Screws included |
|
| Number of screws | 4 |
| Manual |
|
| SKU | 239764 |
| MPN | ARMSLIM |
| Brand | Startech |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Warranty Period | 10 Years Warranty |
| Warranty Contact | https://www.startech.com/ |
