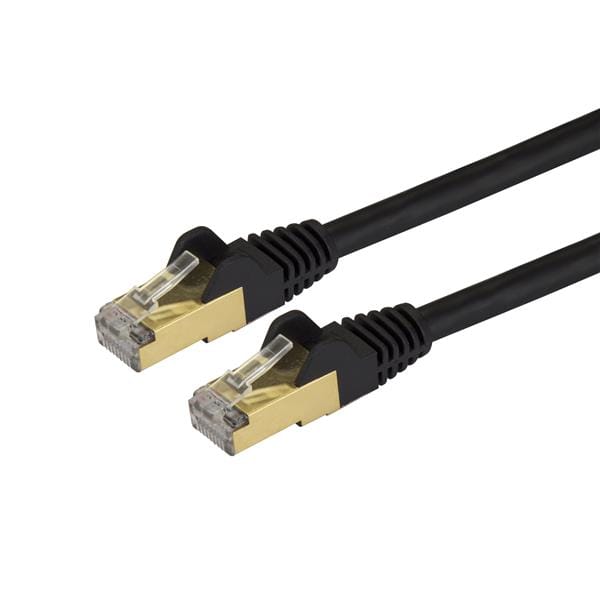

This 7-foot Cat6a cable meets or exceeds all Category 6a cable specifications to ensure reliable 10Gb network connections. The cable is shielded to protect your network against electromagnetic interference (EMI/RFI) and system noise, providing the perfect solution for fast and safe network connections.
Reliable Cat6a 10 Gigabit connections
Each cable is tested for up to 500 MHz frequency and is more than suitable for 10GBase-T Ethernet networks.
Constructed with 100% copper and foil-shielded, twisted-pair wiring, this cable was built for quality performance. The cable is designed to keep the data signals traveling through your network free from interference and is perfect in environments that are prone to large amount of EMI.
The 50-micron gold connectors deliver optimum conductivity and eliminate signal loss due to oxidation or corrosion.
Secured network connections
For easier cable runs, the snagless connectors protect the RJ45 clips during installation, making them less likely to snag or break. This ensures a sturdy connection by preventing the cable from becoming loose from the port.
Plus, the molded boots offer strain relief that stops the RJ45 connector termination points from bending at sharp angles, which reduces the risk of damage to the cable that could decrease network performance.
The C6ASPAT7BK is backed by StarTech.com?s lifetime warranty for guaranteed reliability.
| Connector(s) | |
| Connector A | RJ-45 Male |
| Connector B | RJ-45 Male |
| Hardware | |
| Cable Jacket Type | PVC - Polyvinyl Chloride |
| Cable Shield Type | Aluminum-polyester foil |
| Cable Type | Shielded Snag-less |
| Fire Rating | CMG Rated (General Purpose) |
| Number of Conductors | 4 Pair STP |
| Packaging Information | |
| Package Quantity | 1 |
| Shipping (Package) Weight | 104 g [3.7 oz] |
| Performance | |
| Cable Rating | CAT6a - 10Gbit/s |
| Physical Characteristics | |
| Cable Length | 2.1 m [7 ft] |
| Color | Black |
| Conductor Type | Stranded Copper |
| Product Length | 2.1 m [7 ft] |
| Product Weight | 89 g [3.1 oz] |
| Wire Gauge | 25 AWG |
| What's in the Box | |
| Included in Package | 7 ft Black Shielded Snagless 10 Gigabit Cat 6a STP Patch Cable |
| Features | |
| Cable colour Colour of the cable e.g. white, gray. | Black |
| Cable length How long the cable is. | 2.1 m |
| Cable standard The category of the cable, which is determined by performance characteristics and test requirements. | Cat6a |
| Cable shielding The protective layer for the cable, typically made of plastic. | S/UTP (STP) |
| Connector 1 This is the first connector in the device. | RJ-45 |
| Connector 2 This is the second connector in the device. | RJ-45 |
| Connector gender To distinguish parts on a cable interface, connectors are grouped under genders. Sockets or jacks are considered to be female whilst plugs are referred to as male. | Male/Male |
| Jacket material | Polyvinyl chloride (PVC) |
| Conductor type | Stranded |
| Conductor material | Copper |
| Cable rating | CMG (CM) |
| Cabling technology Type of cable technology performance. | 10GBase-T |
| Ethernet interface type | 10 Gigabit Ethernet |
| AWG wire size | 26 |
| Data transfer rate Rate at which data can be transferred, usually measured in units per second. May vary with network configurations. | 10000 Mbit/s |
| Frequency | 500 MHz |
| Snagless cable boot |
 |
| Plug and Play Indicates whether this product supports is "plug and play". Plug and play is hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration. |
|
| Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras. |
|
| RoHS compliance The Restriction of Hazardous Substances (RoHS) Directive aims to restrict certain dangerous substances commonly used in electrical and electronic equipment. Any RoHS compliant product is tested for the presence of Lead (Pb), Cadmium (Cd), Mercury (Hg), Hexavalent chromium (Hex-Cr), Polybrominated biphenyls (PBB), and Polybrominated diphenyl ethers (PBDE). PBB and PBDE are flame retardants used in several plastics. For Cadmium and Hexavalent chromium, there must be less than 0.01% of the substance by weight at raw homogeneous materials level. For Lead, PBB, and PBDE, there must be no more than 0.1% of the material, when calculated by weight at raw homogeneous materials. Any RoHS compliant component must have 100 ppm or less of mercury and the mercury must not have been intentionally added to the component. In the EU, some military and medical equipment are exempt from RoHS compliance. |
|
| Certification | CE, REACH |
| Weight & dimensions | |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 87 g |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Package width The distance from one side of the packaging to the other. | 200 mm |
| Package depth The distance from the front to the back of the packaging. | 220 mm |
| Package height The distance from the top to the bottom of the packaging. | 20 mm |
| Package weight Weight of the packaged product. | 96 g |
| Logistics data | |
| Master (outer) case width | 37 cm |
| Master (outer) case length | 41.5 cm |
| Master (outer) case height | 27.5 cm |
| Quantity per master (outer) case | 100 pc(s) |
| SKU | 239925 |
| MPN | C6ASPAT7BK |
| Brand | Startech |
| Product Condition | Brand New/Unused |
| Warranty Period | Limited Lifetime Warranty |
| Warranty Contact | https://www.startech.com/ |
