1.8v/3.3v SSD support, SATA port mounted, SATA III (6 Gbps)

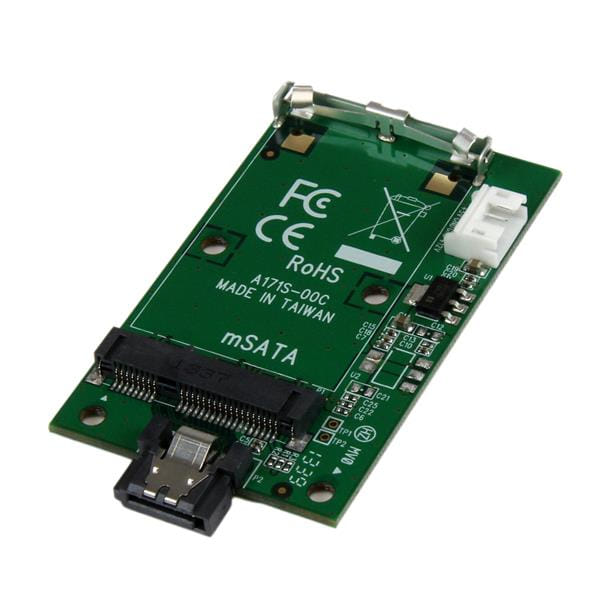

The SAT32MSATM SATA to mSATA adapter enables you to connect an mSATA SSD to any standard SATA port, ideal for connecting an mSATA SSD to an ITX computer systems that does not have an mSATA port.
The adapter enables you to harness the speed of upgrading to a faster drive by connecting an mSATA SSD to any SATA-enabled desktop computer. Allowing for faster boot time, and increased performance in regular operation.
For a hassle-free, tool-less installation where space may be limited the adapter connects and mounts directly into the SATA port.
The SAT32MSATM is backed by a StarTech.com 2-year warranty and free lifetime technical support.
| Connector(s) | |
| Drive Connectors | mSATA (52 pin, Mini SATA) Slot Female |
| Host Connectors | Molex (4 pin, PWM) Male |
| SATA (7 pin, Data) Receptacle | |
| Environmental | |
| Humidity | Operating 20% to 80% Non Operating 15% to 90% |
| Operating Temperature | 5?C to 50?C (41?F to 122?F) |
| Storage Temperature | -25?C to 70?C (-13?F to 158?F) |
| Hardware | |
| Compatible Drive Types | mSATA (Mini SATA) |
| Drive Installation | Fixed |
| Number of Drives | 1 |
| Packaging Information | |
| Shipping (Package) Weight | 34 g [1.2 oz] |
| Performance | |
| Type and Rate | SATA III (6 Gbps) |
| Physical Characteristics | |
| Product Height | 7 mm [0.3 in] |
| Product Length | 76 mm [3 in] |
| Product Weight | 14 g [0.5 oz] |
| Product Width | 41 mm [1.6 in] |
| Software | |
| OS Compatibility | OS independent; No software or drivers required |
| What's in the Box | |
| Included in Package | Instruction Manual |
| SATA Power to 4-pin Molex Power Adapter | |
| SATA to mSATA Adapter | |
| Ports & interfaces | |
| Host interface Interface that enables a host controller to communicate with a driver. | SATA |
| Output interface The socket (port) where the output connectors are connected. | mSATA |
| SATA revision | 3.0 |
| Peripheral (Molex) power connectors (4-pin) White 4-pinned connector used to connect a peripheral to the power supply. | 1 |
| Design | |
| Internal The product is built in. |
 |
| Product colour The colour e.g. red, blue, green, black, white. | Red |
| RoHS compliance The Restriction of Hazardous Substances (RoHS) Directive aims to restrict certain dangerous substances commonly used in electrical and electronic equipment. Any RoHS compliant product is tested for the presence of Lead (Pb), Cadmium (Cd), Mercury (Hg), Hexavalent chromium (Hex-Cr), Polybrominated biphenyls (PBB), and Polybrominated diphenyl ethers (PBDE). PBB and PBDE are flame retardants used in several plastics. For Cadmium and Hexavalent chromium, there must be less than 0.01% of the substance by weight at raw homogeneous materials level. For Lead, PBB, and PBDE, there must be no more than 0.1% of the material, when calculated by weight at raw homogeneous materials. Any RoHS compliant component must have 100 ppm or less of mercury and the mercury must not have been intentionally added to the component. In the EU, some military and medical equipment are exempt from RoHS compliance. |
|
| Certification | CE, FCC |
| Features | |
| Data transfer rate (max) | 6 Gbit/s |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 5 - 50 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -25 - 70 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 15 - 90% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 41 mm |
| Depth The distance from the front to the back of something. | 76 mm |
| Height The measurement of the product from head to foot or from base to top. | 7 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 14 g |
| Packaging data | |
| Manual |
|
| Package width The distance from one side of the packaging to the other. | 225 mm |
| Package depth The distance from the front to the back of the packaging. | 125 mm |
| Package height The distance from the top to the bottom of the packaging. | 10 mm |
| Package weight Weight of the packaged product. | 35 g |
| Other features | |
| Package length | 4.92 |
| SKU | 211015 |
| MPN | SAT32MSATM |
| Brand | Startech |
| Product Condition | Brand New/Unused |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://www.startech.com/ |
