SAT2IDEADP Support 40/44 pin IDE Hard Drives

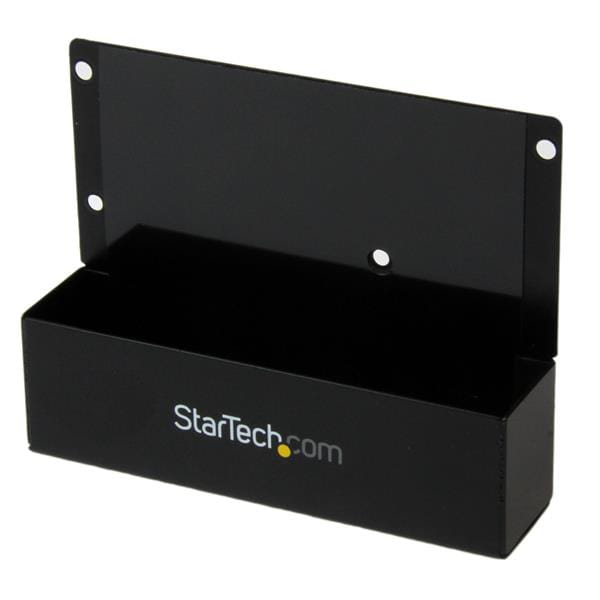

The SAT2IDEADP SATA to IDE hard drive adapter enables you to use your 2.5-inch/3.5-inch IDE-based (PATA) hard drives in most StarTech.com SATA-based HDD docking stations and drive duplicators. The SATA-IDE adapter features all-metal construction that ensures maximum durability, and is fully compatible with IDE hard drives up to ATA-133 (133MBps).
The unique mounting style of the SATA/IDE adapter enables it to be easily mounted to an IDE/ATA hard drive, and inserted into a SATA hard drive dock bay, for quick and easy retrieval of data from older HDDs. The adapter can also be used to install IDE hard drives into SATA-only desktop computers, or any other scenario that requires an IDE hard drive to be connected through Serial ATA.
The SAT2IDEADP hard drive adapter works with most StarTech.com SATA HDD Docking Stations and Duplicators, including:
- SATDOCK2REU3
- SDOCK2U33
- SDOCKU33EBV
- UNIDOCKU33
- SATADOCK22UE
- SATDOCK2UEGB
- SATDOCK22RE
- SATDOCK22R
- SATDOCKU3S
- SATADOCKU2
- SATADOCKU2E
- SATDOCK4U2E
- SATDOCK4U3E
- SATDOCKCRH
- SATDOCKU3E
- SATDOCKU2EGB
- SATDOCKU2GB
Backed by 2-year warranty and free, lifetime technical support.
| Connector(s) | |
| Connector Type(s) | SP4 (4 pin, Small Drive Power) Male |
| Drive Connectors | IDE (40 Pin, EIDE/PATA) Female |
| IDE (44 Pin, EIDE/PATA, 2.5" HDD) Female | |
| LP4 (4 pin, Molex Large Drive Power) Female | |
| Host Connectors | SATA (7 pin, Data) Plug |
| SATA Power (15 pin) Plug | |
| Environmental | |
| Humidity | 8% ~ 90% RH |
| Operating Temperature | 5?C to 80?C (41?F to 176?F) |
| Storage Temperature | -40?C to 70?C (-40?F to 158?F) |
| Hardware | |
| Chipset ID | Jmicron - JM20330 |
| Compatible Drive Types | IDE (ATA) |
| Drive Installation | Fixed |
| Drive Size | 2.5in & 3.5in |
| Fan(s) | No |
| LBA support | 48-bit |
| Number of Drives | 1 |
| Packaging Information | |
| Shipping (Package) Weight | 230 g [8.1 oz] |
| Physical Characteristics | |
| Color | Black |
| Enclosure Type | Steel |
| Product Height | 26 mm [1 in] |
| Product Length | 101 mm [4 in] |
| Product Weight | 104 g [3.7 oz] |
| Product Width | 78 mm [3.1 in] |
| Software | |
| OS Compatibility | OS independent; No software or drivers required |
| What's in the Box | |
| Included in Package | 40-pin IDE cable |
| 40-pin to 44-pin IDE cable with power | |
| Instruction Manual | |
| Package of mounting screws | |
| SATA to IDE adapter | |
| SP4 to LP4 Power cable | |
| Ports & interfaces | |
| Connector 1 This is the first connector in the device. | SATA 7-pin + SATA 15-pin |
| Connector 2 This is the second connector in the device. | IDE 40-pin + IDE 44-pin + LP4 |
| Connector gender To distinguish parts on a cable interface, connectors are grouped under genders. Sockets or jacks are considered to be female whilst plugs are referred to as male. | Male/Female |
| Performance | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Chipset Set of electronic components in an integrated circuit that manages the data flow between the processor, memory and peripherals. It is usually found in the motherboard of a computer. Chipsets are usually designed to work with a specific family of microprocessors. Because it controls communications between the processor and external devices, the chipset plays a crucial role in determining system performance. | JMicron - JM20330 |
| Storage drive sizes supported The sizes of storage drives that can be used with the product. | 2.5,3.5" |
| RoHS compliance The Restriction of Hazardous Substances (RoHS) Directive aims to restrict certain dangerous substances commonly used in electrical and electronic equipment. Any RoHS compliant product is tested for the presence of Lead (Pb), Cadmium (Cd), Mercury (Hg), Hexavalent chromium (Hex-Cr), Polybrominated biphenyls (PBB), and Polybrominated diphenyl ethers (PBDE). PBB and PBDE are flame retardants used in several plastics. For Cadmium and Hexavalent chromium, there must be less than 0.01% of the substance by weight at raw homogeneous materials level. For Lead, PBB, and PBDE, there must be no more than 0.1% of the material, when calculated by weight at raw homogeneous materials. Any RoHS compliant component must have 100 ppm or less of mercury and the mercury must not have been intentionally added to the component. In the EU, some military and medical equipment are exempt from RoHS compliance. |
 |
| Certification | CE, FCC, REACH |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 5 - 80 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 70 °C |
| Relative humidity | 8 - 90% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 78 mm |
| Depth The distance from the front to the back of something. | 101 mm |
| Height The measurement of the product from head to foot or from base to top. | 26 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 104 g |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 110 mm |
| Package depth The distance from the front to the back of the packaging. | 147 mm |
| Package height The distance from the top to the bottom of the packaging. | 52 mm |
| Package weight Weight of the packaged product. | 218 g |
| Package length | 5.63 |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Manual |
|
| SKU | 211008 |
| MPN | SAT2IDEADP |
| Brand | Startech |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://www.startech.com/ |
