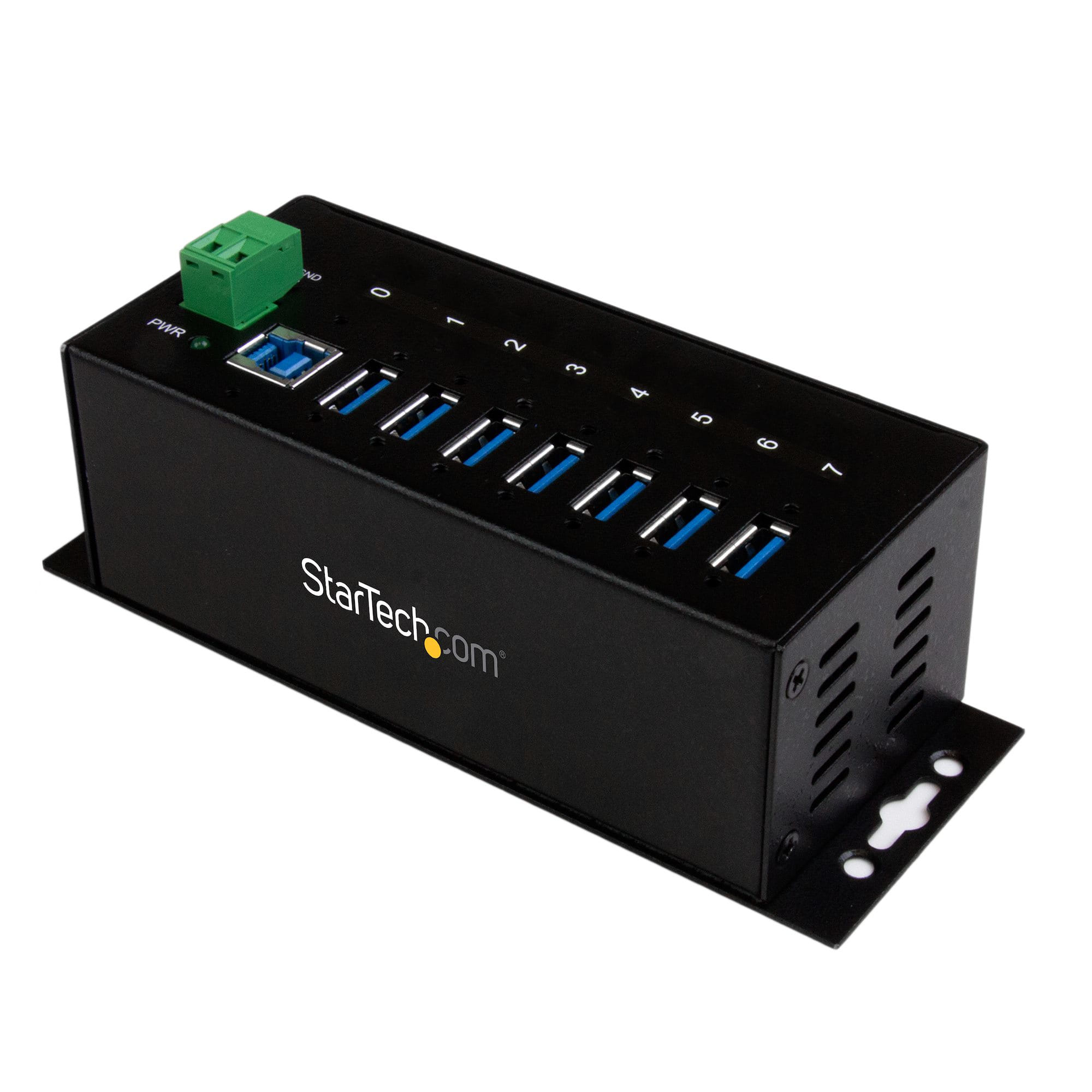

Startech Rugged Metal 7-Port USB 3.0 Hub - DIN Rail And Wall-mountable

Item No:
218995
MPN:
ST7300USBME
$231.82

Startech Rugged Metal 7-Port USB 3.0 Hub - DIN Rail And Wall-mountable

$231.82
Payment options
Shipping Information
  • Available for shipping
  • Usually leaves our partner warehouse in 2-4 business days
Store Availability
  • 3-5 business days at Bankstown Store
  • 3-5 business days at Castle Hill Store
  • 2-4 business days at Northmead Store
Shipping Estimate
350W surge protection, 15kV ESD Protection, Wall mountable

Engineered to meet the challenges of tough industrial environments, this USB 3.0 hub lets you expand your connectivity options by adding seven external USB 3.0 ports to your computer.

Now you can increase your everyday productivity by gaining powerful and convenient access to your external hard drives, printers, mobile devices and other peripherals.

Photo of the hub installed on a DIN rail in a test bench environment

Reliable performance even in tough industrial environments

Designed for performance and durability, the industrial-grade hub features a rugged, metal housing. Its wide-range 7-48V DC terminal block input gives you the flexibility to power the hub as required, based on your own power input capabilities. Plus, it supports an extended operating temperature range (0?C to 70?C), helping to ensure reliable performance even in the most demanding factory and industrial environments.

The rugged hub also offers ESD protection to each USB port, which can help safeguard your investments by preventing damage to your connected devices.

Secure and versatile installation on DIN rails or surfaces

This wall-mountable USB 3.0 hub can be securely mounted to surfaces, under desks, and in other high traffic areas where there is a concern that USB connections may become unplugged. Plus, it also includes optional DIN rail mounts for use with equipment rack installations.

Supports transfer speeds up to 5Gbps

Compliant with SuperSpeed USB 3.0, this industrial hub supports 5Gbps bandwidth. It's also backward compatible with USB 2.0 and 1.x specifications, simultaneously supporting older USB peripherals or legacy systems that lack USB 3.0 capabilities.

The ST7300USBME is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Connector(s)
Connector Type(s)Terminal Block (2 Wire)
USB Type-A (9 pin) USB 3.0 Female
USB Type-B (9 pin) USB 3.0 Female
Environmental
Humidity5%~95% RH (Non-condensing)
Operating Temperature0?C to 70?C (32?F to 158?F)
Storage Temperature-20?C to 85?C (-4?F to 185?F)
Hardware
Bus TypeUSB 3.0
Chipset IDGenesys Logic - GL3520
Fast-Charge Port(s)Yes
Industry StandardsUSB Battery Charging Specification Rev. 1.2
USB 3.0 - Backward compatible with USB 2.0 and 1.1
InterfaceUSB 3.0
Ports7
USB-C Device Port(s)No
USB-C Host ConnectionNo
Indicators
LED IndicatorsPower (Green)
Packaging Information
Shipping (Package) Weight610 g [21.5 oz]
Performance
Maximum Data Transfer Rate5 Gbps
MTBF126,106 Hours
Surge Protection15kV ESD protection
Type and RateUSB 3.0 - 5 Gbit/s
Physical Characteristics
ColorBlack
Enclosure TypeSteel
Form FactorIndustrial
Product Height45 mm [1.8 in]
Product Length145 mm [5.7 in]
Product Weight325 g [11.5 oz]
Product Width54 mm [2.1 in]
Power
Input Voltage7 ~ 48 DC
Power SourceTerminal Block
Software
OS CompatibilityOS Independent; No additional drivers or software required
Special Notes / Requirements
NoteIf connected to a USB 2.0 host port, performance may be limited
This product is intended for use with terminal block power only ? Standard AC adapter not available
System and Cable RequirementsHost computer with an available USB 3.0 port
What's in the Box
Included in Package7 Port Industrial USB 3.0 Hub
DIN Rail Mounting Kit
Instruction Manual
Terminal Block (2 Wire)
USB 3.0 A - B Cable
Ports & interfaces
Host interface Interface that enables a host controller to communicate with a driver. USB 3.2 Gen 1 (3.1 Gen 1) Type-B
Hub interfaces A hub is a device for connecting multiple devices together. The hub interface is where the hub connects to other devices via input/output (I/O) ports. USB 3.2 Gen 1 (3.1 Gen 1) Type-A
Ports quantity The number of ports or external interfaces to which other equipment can be connected. 7
Terminal block port
Features
Data transfer rate Rate at which data can be transferred, usually measured in units per second. May vary with network configurations. 5000 Mbit/s
Product colour The colour e.g. red, blue, green, black, white. Black
Housing material What the casing of the product is made of. Steel
Surge protection
LED indicators Power
Certification CE, FCC, RoHS, TAA, REACH
Power
Power source type What the power source is. DC
Input voltage The voltage (V) which is required to power the product. 7 - 48 V
Weight & dimensions
Width The measurement or extent of something from side to side. 54 mm
Depth The distance from the front to the back of something. 145 mm
Height The measurement of the product from head to foot or from base to top. 45 mm
Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. 325 g
Packaging data
Package width The distance from one side of the packaging to the other. 295 mm
Package depth The distance from the front to the back of the packaging. 190 mm
Package height The distance from the top to the bottom of the packaging. 69 mm
Package weight Weight of the packaged product. 629 g
Packaging content
Cables included USB
Manual
Terminal block included
DIN rail kit included
Operational conditions
Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. 0 - 70 °C
Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. -20 - 85 °C
Operating relative humidity (H-H) 5 - 95%
Performance
Mean time between failures (MTBF) Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism. 126106 h
Other features
Chipset Set of electronic components in an integrated circuit that manages the data flow between the processor, memory and peripherals. It is usually found in the motherboard of a computer. Chipsets are usually designed to work with a specific family of microprocessors. Because it controls communications between the processor and external devices, the chipset plays a crucial role in determining system performance. Genesys Logic - GL3520
More Information
SKU 218995
MPN ST7300USBME
Brand Startech
Product Condition Brand New/Unused
Stock Availability Available for Shipping
Warranty Period 2 Years Warranty
Warranty Contact https://www.startech.com/
