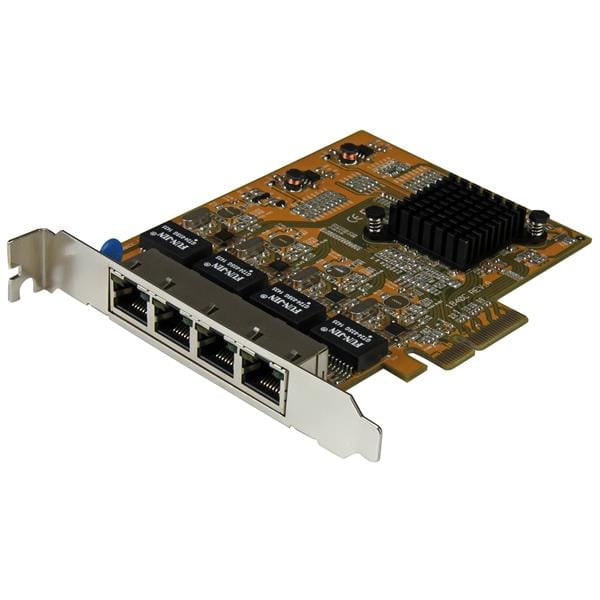

Now you can add four separate Gigabit network ports to your client, server or workstation through just one PCI Express slot, to provide connectivity to multiple networks without draining your budget.
Reliable connectivity to multiple networks
This 4-port network card delivers powerful connectivity for your business, corporate or government office environment, with support for high-performance, 4-channel networking and a maximum throughput of up to 1000Mbps in each direction (2000 Mbps total). The network adapter card features the Realtek RTL8111G chipset, which is designed to deliver the performance and enhanced capabilities you need for reliable network connections to your server or computer.
A versatile and cost-effective solution
This versatile quad-port network card is ideal for many business applications requiring upgrades to servers or workstations, adding feature-rich Gigabit networking with four independent ports. Compatible with a broad range of operating systems, this cost-effective PCIe Gigabit NIC is suitable for many SMB and Enterprise applications such as virtualized environments that require multiple NICs (check your VM software for chipset compatibility).
The ST1000SPEX43 is backed by a StarTech.com 2-year hardware warranty and free lifetime technical support.
| Connector(s) | |
| Connector Type(s) | PCI Express x4 Male |
| External Ports | RJ-45 Female |
| Environmental | |
| Humidity | 5% ~ 95% RH |
| Operating Temperature | 0?C to 55?C (32?F to 131?F) |
| Storage Temperature | -40?C to 75?C (-40?F to 167?F) |
| Hardware | |
| Bus Type | PCI Express |
| Card Type | Standard Profile |
| Chipset ID | Realtek RTL8111G |
| Industry Standards | Compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab |
| Interface | RJ45 (Gigabit Ethernet) |
| Ports | 4 |
| Indicators | |
| LED Indicators | Activity |
| Link | |
| Packaging Information | |
| Shipping (Package) Weight | 180 g [6.4 oz] |
| Performance | |
| Auto MDIX | Yes |
| Compatible Networks | 10/100/1000 Mbps |
| Full Duplex Support | Yes |
| Jumbo Frame Support | 9K max. |
| Maximum Data Transfer Rate | 2000Mbps (Full Duplex) |
| Promiscuous Mode | Yes |
| Physical Characteristics | |
| Color | Yellow |
| Product Height | 18 mm [0.7 in] |
| Product Length | 138 mm [5.4 in] |
| Product Weight | 100 g [3.5 oz] |
| Product Width | 120 mm [4.7 in] |
| Software | |
| OS Compatibility | Windows? XP, 7, 8, 8.1, 10 Windows Server? 2003, 2012, 2016 Linux Kernel 2.4.x to 4.4.x LTS Versions only |
| Special Notes / Requirements | |
| System and Cable Requirements | Available PCI Express x4 or higher (x8, x16) slot |
| What's in the Box | |
| Included in Package | PCIe Gigabit network card - 4 port |
| Ports & interfaces | |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| Host interface Interface that enables a host controller to communicate with a driver. | PCI Express |
| Interface Interface ports to connect pieces of equipment. USB (Universal Serial Bus) has become the most popular wired interface to connect peripherals. USB 2.0 supports speeds up to 480 Mbit/s (USB 1: 12 Mbit/s). The interface FireWire is also known as the IEEE 1394 standard. Enhanced IDE (EIDE)is sometimes referred to as Fast ATA, Fast IDE or ATA-2. | Ethernet |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 4 |
| Network | |
| Maximum data transfer rate The maximum speed with which data can be transmitted from one device to another. | 2000 Mbit/s |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.3,IEEE 802.3u,IEEE 802.3ab |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
 |
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 10,1000,100 Mbit/s |
| Cabling technology Type of cable technology performance. | 10/100/1000BaseT(X) |
| Wake-on-LAN ready |
|
| Auto MDIX IEEE |
 |
| Full duplex A full-duplex system allows communication in both directions, and unlike half-duplex, allows this to happen simultaneously. |
|
| Jumbo frames support |
|
| Design | |
| Internal The product is built in. |
|
| Chipset Set of electronic components in an integrated circuit that manages the data flow between the processor, memory and peripherals. It is usually found in the motherboard of a computer. Chipsets are usually designed to work with a specific family of microprocessors. Because it controls communications between the processor and external devices, the chipset plays a crucial role in determining system performance. | Realtek RTL8111G |
| LED indicators | Activity,Link |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 55 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 75 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| System requirements | |
| Windows operating systems supported Windows vesions wich can be used with the device. | Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 Pro,Windows 10 Pro x64,Windows 7,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 7 x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows 8.1,Windows 8.1 Enterprise,Windows 8.1 Enterprise x64,Windows 8.1 Pro,Windows 8.1 Pro x64,Windows 8.1 x64,Windows XP,Windows XP Home,Windows XP Home x64,Windows XP Professional,Windows XP Professional x64 |
| Linux operating systems supported 8 RT. Linux (9.4, 9.5), Red Hat Enterprise Linux 5.0 (supported with a pre-built package); SUSE Linux (10.3, 11.0, 11, 11.1, 11.2), Fedora (9, 9.0, 10, 10.0, 11.0, 11, 12, 12.0), Ubuntu (8.04, 8.04.1, 8.04.2, 8.10, 9.04, 9.10, 10.04), Debian (5.0, 5.0.1, 5.0.2, 5.0.3) |
|
| Server operating systems supported | Windows Server 2003,Windows Server 2012,Windows Server 2016,Windows Server 2019 |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 102 mm |
| Depth The distance from the front to the back of something. | 138 mm |
| Height The measurement of the product from head to foot or from base to top. | 1.6 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 100 g |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 209 mm |
| Package depth The distance from the front to the back of the packaging. | 145 mm |
| Package height The distance from the top to the bottom of the packaging. | 40 mm |
| Package weight Weight of the packaged product. | 184 g |
| Other features | |
| Flow control support |
|
| Case colour The colour of the protective shell or bag. | Yellow |
| SKU | 245518 |
| MPN | ST1000SPEX43 |
| Brand | Startech |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://www.startech.com/ |
