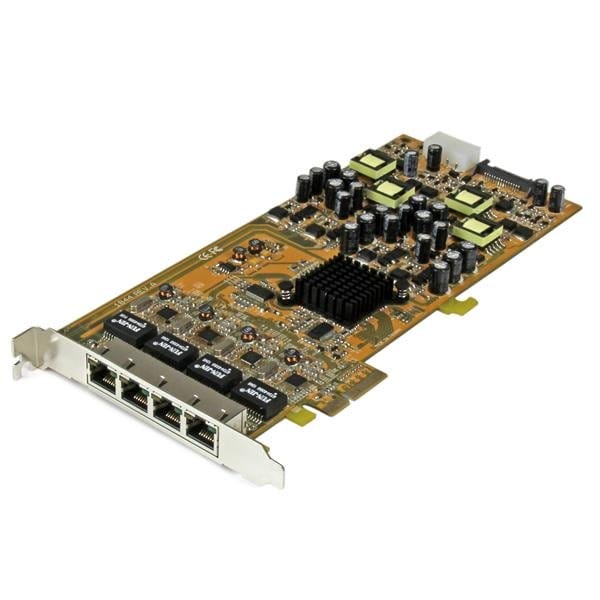

Startech Quad-Port GbE PCI Express Network Card

The ST4000PEXPSE 4-Port PoE NIC lets you add four Gigabit Power over Ethernet ports through a single PCI Express slot. Each port can provide up to 25.5W of power, combining network data and power over a single Ethernet cable for reduced cable clutter and added convenience for remote PoE devices. The PCI express PoE card supports the IEEE 802.3at (Type 1 and 2) standard for Power Sourcing Equipment (PSE), and can deliver up to 48V DC power to compliant Powered Devices (PD). This eliminates the need for a separate power source and data connection for PoE devices such as IP cameras, IP phones or wireless access points. Suitable for any standard profile PCIe-enabled client, server or workstation, the PoE network card supports features such as Jumbo Frames (up to 9KB), VLAN tagging and Wake on LAN (WoL). Backed by a Startech 2-year warranty and free lifetime technical support.

Connector(s)
Connector Type(s)	PCI Express x4 Male
External Ports	RJ-45 Female
Internal Ports	LP4 (4 pin; Large Drive Power) Male
	SATA Power (15 pin) Plug
Environmental
Humidity	10~90% RH (Non-condensing)
Operating Temperature	0 Specifications Ports & interfaces Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. Wired Host interface Interface that enables a host controller to communicate with a driver. PCI Express Interface Interface ports to connect pieces of equipment. USB (Universal Serial Bus) has become the most popular wired interface to connect peripherals. USB 2.0 supports speeds up to 480 Mbit/s (USB 1: 12 Mbit/s). The interface FireWire is also known as the IEEE 1394 standard. Enhanced IDE (EIDE)is sometimes referred to as Fast ATA, Fast IDE or ATA-2. Ethernet Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. 4 Network Maximum data transfer rate The maximum speed with which data can be transmitted from one device to another. 2000 Mbit/s Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. IEEE 802.1p,IEEE 802.1Q,IEEE 802.3,IEEE 802.3ab,IEEE 802.3at,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. 10,100,1000 Mbit/s Cabling technology Type of cable technology performance. 10/100/1000BaseT(X) Wake-on-LAN ready Auto MDIX IEEE Full duplex A full-duplex system allows communication in both directions, and unlike half-duplex, allows this to happen simultaneously. Jumbo frames support Design Internal The product is built in. Chipset Set of electronic components in an integrated circuit that manages the data flow between the processor, memory and peripherals. It is usually found in the motherboard of a computer. Chipsets are usually designed to work with a specific family of microprocessors. Because it controls communications between the processor and external devices, the chipset plays a crucial role in determining system performance. RTL8111E PCI Card form factor Design of the PCI Card. Full-height LED indicators Link,PoE RoHS compliance The Restriction of Hazardous Substances (RoHS) Directive aims to restrict certain dangerous substances commonly used in electrical and electronic equipment. Any RoHS compliant product is tested for the presence of Lead (Pb), Cadmium (Cd), Mercury (Hg), Hexavalent chromium (Hex-Cr), Polybrominated biphenyls (PBB), and Polybrominated diphenyl ethers (PBDE). PBB and PBDE are flame retardants used in several plastics. For Cadmium and Hexavalent chromium, there must be less than 0.01% of the substance by weight at raw homogeneous materials level. For Lead, PBB, and PBDE, there must be no more than 0.1% of the material, when calculated by weight at raw homogeneous materials. Any RoHS compliant component must have 100 ppm or less of mercury and the mercury must not have been intentionally added to the component. In the EU, some military and medical equipment are exempt from RoHS compliance. Certification CE, FCC, REACH, TAA Power Output voltage 48 V Operational conditions Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. 0 - 55 °C Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. -40 - 75 °C Operating relative humidity (H-H) 10 - 90% System requirements Windows operating systems supported Windows vesions wich can be used with the device. Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 Pro,Windows 10 Pro x64,Windows 10 x64,Windows 2000,Windows 2000 Professional,Windows 7,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 7 x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows 8.1,Windows 8.1 Enterprise,Windows 8.1 Enterprise x64,Windows 8.1 Pro,Windows 8.1 Pro x64,Windows 8.1 x64,Windows Vista Business,Windows Vista Business x64,Windows Vista Enterprise,Windows Vista Enterprise x64,Windows Vista Home Basic,Windows Vista Home Basic x64,Windows Vista Home Premium,Windows Vista Home Premium x64,Windows Vista Ultimate,Windows Vista Ultimate x64,Windows Vista x64,Windows XP,Windows XP Home,Windows XP Home x64,Windows XP Professional,Windows XP Professional x64 Linux operating systems supported 8 RT. Linux (9.4, 9.5), Red Hat Enterprise Linux 5.0 (supported with a pre-built package); SUSE Linux (10.3, 11.0, 11, 11.1, 11.2), Fedora (9, 9.0, 10, 10.0, 11.0, 11, 12, 12.0), Ubuntu (8.04, 8.04.1, 8.04.2, 8.10, 9.04, 9.10, 10.04), Debian (5.0, 5.0.1, 5.0.2, 5.0.3) Server operating systems supported Windows Server 2003,Windows Server 2008 R2,Windows Server 2012,Windows Server 2012 R2,Windows Server 2016,Windows Server 2019 Weight & dimensions Width The measurement or extent of something from side to side. 18 mm Depth The distance from the front to the back of something. 243 mm Height The measurement of the product from head to foot or from base to top. 120 mm Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. 102 g Packaging data Drivers included Package width The distance from one side of the packaging to the other. 188 mm Package depth The distance from the front to the back of the packaging. 296 mm Package height The distance from the top to the bottom of the packaging. 66 mm Package weight Weight of the packaged product. 428 g Other features Buffer size The buffer is a temporary memory area in which data is stored while it is being processed or transferred, especially one used while streaming video or downloading audio. The buffer size is usually measured in MB (megabytes) or KB (kilobytes). 48 KB Manual Jumbo frames 9000 Peripheral (Molex) power connectors (4-pin) White 4-pinned connector used to connect a peripheral to the power supply. 1 Number of SATA power connectors 1 More Information SKU 402409 MPN ST4000PEXPSE Brand Startech Product Condition Brand New/Unused Stock Availability Available for Shipping Product Use General Warranty Period 2 Years Warranty Warranty Contact https://www.startech.com/ Reviews
