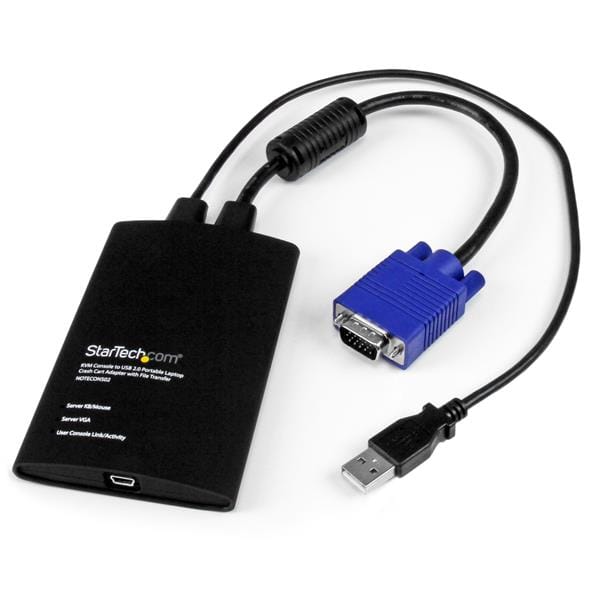

The NOTECONS02 Portable USB Crash Cart Adapter lets you turn your laptop into a portable console for rack servers, PCs, ATMs, kiosks and more, now with local file transfer and video capture built into the software. Simply connect the crash cart adapter to your laptop using the included USB cable, then connect the integrated USB and VGA cables to your server for instant, BIOS-level control.
Connect Quickly
Get connected in seconds. The crash cart adapter offers integrated VGA and USB cables for the server-side connections and includes the USB cable to connect to your laptop.
Troubleshoot your devices faster with a flexible software interface that lets you transfer files from your laptop to the server, capture videos for records or instructional purposes, take screenshots and scale the display window to full screen mode or smaller, with no scroll bars - ever.
Connect Universally
With no server-side software installation required, the USB crash cart adapter can connect to any PC or device that has a VGA and USB port, to provide BIOS-level control.
Powered from the server-side USB connection, the laptop crash cart adapter doesn't require an AC outlet and saves your laptop / netbook battery power.
Connect Portably
With portability for the mobile administrator or repair technician in mind, this pocket-sized adapter features a rugged design that easily fits inside your laptop bag and requires no additional accessories to connect.
Eliminating the need to lug around a large, awkward traditional crash cart to troubleshoot and service your systems, this portable crash cart lets you connect to a headless device with only a laptop.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
| Connector(s) | |
| Console Interface(s) | USB Mini-B (5 pin) Female Input |
| Host Connectors | USB Type-A (4 pin) USB 2.0 Male |
| VGA (15 pin, High Density D-Sub) Male | |
| Environmental | |
| Humidity | 80% RH |
| Operating Temperature | 0?C to 40?C (32?F to 104?F) |
| Storage Temperature | -40?C to 70?C (-40?F to 158?F) |
| Hardware | |
| Audio | No |
| Cables Included | Yes |
| Daisy-Chain | No |
| KVM Ports | 1 |
| Number of Monitors Supported | 1 |
| PC Interface | USB |
| PC Video Type | VGA |
| Rack-Mountable | No |
| Indicators | |
| LED Indicators | Host/Server Keyboard/Mouse USB Link |
| Host/Server Video (VGA) Link | |
| User Console/USB Link | |
| Packaging Information | |
| Shipping (Package) Weight | 363 g [12.8 oz] |
| Performance | |
| Hot-Key Selection | No |
| IP Control | No |
| Maximum Analog Resolutions | 1920x1200 @ 60Hz |
| Maximum Number of Users | 1 |
| MTBF | 909000 |
| On-Screen Display | No |
| Physical Characteristics | |
| Cable Length | 1 x 15in (385mm) USB host cable, 1 x 3in (76mm) VGA host cable, 1 x 6ft (1.8m) USB Console cable |
| 416 mm [16.4 in] | |
| Color | Black |
| Enclosure Type | Plastic |
| Product Depth | 115 mm [4.5 in] |
| Product Height | 15 mm [0.6 in] |
| Product Weight | 170 g [6 oz] |
| Product Width | 74 mm [2.9 in] |
| Power | |
| Power Source | USB-Powered |
| Software | |
| OS Compatibility | Windows? XP, Vista, 7, 8, 8.1, 10 Windows Server? 2008 R2, 2012, 2012 R2, 2016 Mac OS? 10.9 to 10.12 Linux 2.6 to 4.4 LTS versions only |
| What's in the Box | |
| Included in Package | USB A to Mini-B Cable |
| USB Crash Cart Adpater | |
| USB Software Key | |
| Ports & interfaces | |
| Number of computers controlled The amount of computers controlled by this device. | 1 |
| Keyboard port type The type of socket in the device for connecting a keyboard e.g. USB. | USB |
| Mouse port type | USB |
| Video port type The type of socket in the device for connecting a video e.g. SCART. | VGA |
| Console USB ports quantity | 1 |
| USB connector type The type of USB connector/port that this product has. | Mini-USB B |
| Audio connections Cables used to connect audio inputs or audio outputs to another device e.g, audio amplifier. |
 |
| Performance | |
| HD type Type of supported High Definition (e.g. Full HD, 4K Ultra HD). | Full HD |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 1920 x 1200 pixels |
| Plug and Play Indicates whether this product supports is "plug and play". Plug and play is hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration. |
 |
| Daisy chain |
|
| Number of users The number of people that use or can use this product. | 1 user(s) |
| Design | |
| Rack mounting The type of mounting that can position devices in a shelving system (rack). |
|
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Housing material What the casing of the product is made of. | Plastic |
| Cable length How long the cable is. | 0.416 m |
| LED indicators |
|
| Mean time between failures (MTBF) Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism. | 909000 h |
| RoHS compliance The Restriction of Hazardous Substances (RoHS) Directive aims to restrict certain dangerous substances commonly used in electrical and electronic equipment. Any RoHS compliant product is tested for the presence of Lead (Pb), Cadmium (Cd), Mercury (Hg), Hexavalent chromium (Hex-Cr), Polybrominated biphenyls (PBB), and Polybrominated diphenyl ethers (PBDE). PBB and PBDE are flame retardants used in several plastics. For Cadmium and Hexavalent chromium, there must be less than 0.01% of the substance by weight at raw homogeneous materials level. For Lead, PBB, and PBDE, there must be no more than 0.1% of the material, when calculated by weight at raw homogeneous materials. Any RoHS compliant component must have 100 ppm or less of mercury and the mercury must not have been intentionally added to the component. In the EU, some military and medical equipment are exempt from RoHS compliance. |
|
| Certification | CE, FCC, TAA, UL, REACH |
| Display | |
| On Screen Display (OSD) |
|
| Power | |
| USB powered The device can be powered via a USB connection. |
|
| System requirements | |
| Windows operating systems supported Windows vesions wich can be used with the device. | Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 Pro,Windows 10 Pro x64,Windows 7,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 7 x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro x64,Windows 8 x64,Windows 8.1,Windows 8.1 Enterprise,Windows 8.1 Enterprise x64,Windows 8.1 Pro,Windows 8.1 Pro x64,Windows 8.1 x64,Windows Vista,Windows Vista Business,Windows Vista Business x64,Windows Vista Enterprise,Windows Vista Enterprise x64,Windows Vista Home Basic,Windows Vista Home Premium,Windows Vista Home Premium x64,Windows Vista Ultimate,Windows Vista Ultimate x64,Windows Vista x64,Windows XP Home,Windows XP Home x64,Windows XP Professional,Windows XP Professional x64 |
| Linux operating systems supported 8 RT. Linux (9.4, 9.5), Red Hat Enterprise Linux 5.0 (supported with a pre-built package); SUSE Linux (10.3, 11.0, 11, 11.1, 11.2), Fedora (9, 9.0, 10, 10.0, 11.0, 11, 12, 12.0), Ubuntu (8.04, 8.04.1, 8.04.2, 8.10, 9.04, 9.10, 10.04), Debian (5.0, 5.0.1, 5.0.2, 5.0.3) |
|
| Mac operating systems supported Mac operating systems e.g. OS X can be used with the device. | Mac OS X 10.10 Yosemite,Mac OS X 10.11 El Capitan,Mac OS X 10.12 Sierra,Mac OS X 10.13 High Sierra,Mac OS X 10.14 Mojave,Mac OS X 10.15 Catalina,Mac OS X 10.9 Mavericks |
| Server operating systems supported | Windows Server 2008 R2,Windows Server 2012,Windows Server 2012 R2,Windows Server 2016,Windows Server 2019 |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 70 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 74 mm |
| Depth The distance from the front to the back of something. | 115 mm |
| Height The measurement of the product from head to foot or from base to top. | 15 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 170 g |
| Packaging data | |
| Package length | 1.77 |
| Package width The distance from one side of the packaging to the other. | 166 mm |
| Package depth The distance from the front to the back of the packaging. | 303 mm |
| Package height The distance from the top to the bottom of the packaging. | 46 mm |
| Package weight Weight of the packaged product. | 363 g |
| Packaging content | |
| Cables included | USB |
| Software included |
|
| Other features | |
| Compatible operating systems List of desktop operating systems tested as compatible with this product. | Windows 8 (32/64bit), 7 (32/64), Vista(32/64), XP(32/64) Windows Server 2012, 2008 R2 Mac OS 10.x (Tested up to 10.9) Linux 2.6.x - 3.5.x (32/64bit) |
| SKU | 244062 |
| MPN | NOTECONS02 |
| Brand | Startech |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Features | Portable |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://www.startech.com/ |
