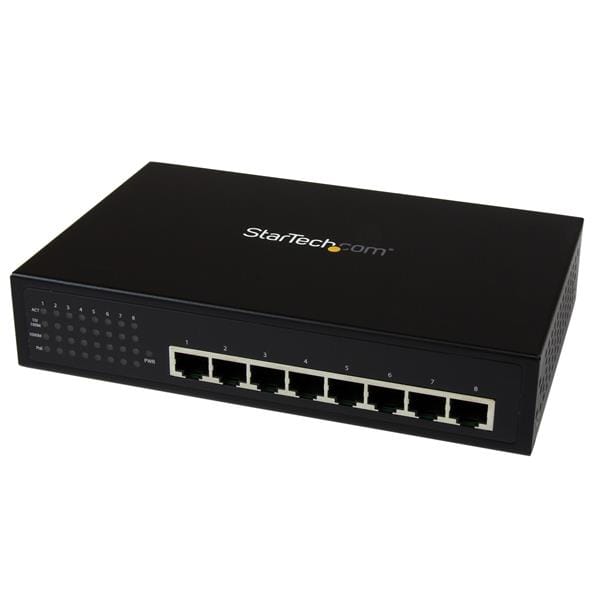

The IES81000POE 8-Port Gigabit Power over Ethernet Switch lets you connect Gigabit Ethernet and power to up to eight PoE-enabled devices, or a mixture of PoE and non-PoE components.
Giving you the freedom to place your equipment in locations where power outlets are not available, this PoE+ switch complies with IEEE 802.3af and 802.3at standards and supplies up to 30 W per port, with a total power budget of 120 W.
A true unmanaged switching solution, the 8 PSE (Power Sourcing Equipment) ports sense whether the connected devices are PoE-ready or require data connectivity only, and also auto-negotiate between 10/100/1000 Mbps network speed and duplex.
The Gigabit Ethernet switch features a sturdy, wall-mountable metal enclosure for durability, and front panel LEDs for quick indication of connection speed and status.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
| Connector(s) | |
| Connector Type(s) | RJ-45 Female |
| Environmental | |
| Humidity | 10~90% RH (Non-Condensing) |
| Operating Temperature | 0?C to 55?C (32?F to 131?F) |
| Storage Temperature | -20?C to 90?C (-4?F to 194?F) |
| Hardware | |
| Industry Standards | IEEE 802.3at/af Power Over Ethernet, IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-TX, IEEE 802.3x Flow Control |
| Ports | 8 |
| Indicators | |
| LED Indicators | 10/100 Mbps |
| 1000 Mbps | |
| Activity | |
| PoE | |
| Power | |
| Packaging Information | |
| Shipping (Package) Weight | 1.8 kg [3.9 lb] |
| Performance | |
| Auto MDIX | Yes |
| Buffer Size | 128 KB |
| Compatible Networks | 10/100/1000 Mbps |
| Flow Control | Half-duplex back-pressure and IEEE802.3x full-duplex |
| Full Duplex Support | Yes |
| Maximum Data Transfer Rate | 2 Gbps (Full-Duplex) |
| Switching Architecture | Store-and-Forward |
| Physical Characteristics | |
| Color | Black |
| Enclosure Type | Steel |
| Product Height | 38 mm [1.5 in] |
| Product Length | 188 mm [7.4 in] |
| Product Weight | 750 g [26.5 oz] |
| Product Width | 119 mm [4.7 in] |
| Power | |
| Center Tip Polarity | Positive |
| Input Current | 2 A |
| Input Voltage | 100 ~ 240 AC |
| Output Current | 2.31 A |
| Output Voltage | 52 DC |
| Plug Type | M |
| Power Consumption (In Watts) | 120 |
| Power Source | AC Adapter Included |
| Software | |
| OS Compatibility | OS Independent; No additional drivers or software required |
| Special Notes / Requirements | |
| Patents and Licenses | The following patents are licensed for this product. This list might not be all inclusive. ? United States Patent No. 5,406,260 (expired) ? United States Patent No. 6,650,622 ? United States Patent No. 7,457,250 ? United States Patent No. 8,155,012 ? United States Patent No. 8,902,760 ? United States Patent No. 8,942,107 ? United States Patent No. 9,019,838 ? United States Patent No. 9,049,019 ? United States Patent Application No. 14/695,456 ? United States Patent Application No. 14/726,940 |
| What's in the Box | |
| Included in Package | 8 Port Gigabit PoE Switch |
| Instruction Manual | |
| Set, Rubber Feet | |
| Universal Power Adapter (NA/JP, EU, UK, ANZ) | |
| Wallmount Brackets | |
| Management features | |
| Switch type What switch device has, managed or unmanaged. | Unmanaged |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity The number of basic switching RJ-45 Ethernet ports (sockets). | 8 |
| Basic switching RJ-45 Ethernet ports type The type/category of basic switching RJ-45 Ethernet ports (sockets). | Gigabit Ethernet (10/100/1000) |
| Power connector | DC-in jack |
| Network | |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.3,IEEE 802.3ab,IEEE 802.3af,IEEE 802.3at,IEEE 802.3u,IEEE 802.3x |
| 10G support The product can use Oracle 10G, which is a database management system introduced in 2003. |
 |
| Full duplex A full-duplex system allows communication in both directions, and unlike half-duplex, allows this to happen simultaneously. |
 |
| Auto MDI/MDI-X A Medium Dependent Interface (MDI) describes the interface (both physical and electrical) in a computer network from a physical layer implementation to the physical medium used to carry the transmission. Ethernet over twisted pair also defines a medium dependent interface crossover (MDIX) interface. Auto-MDIX ports on newer network interfaces detect if the connection would require a crossover, and automatically chooses the MDI or MDIX configuration to properly match the other end of the link. |
|
| Data transmission | |
| Switching capacity The data transfer capacity of the switch per second. | 2 Gbit/s |
| Packet buffer memory | 0.128 MB |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| LED indicators | Activity,Link,PoE |
| Power | |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 110 - 240 V |
| Input current | 2 A |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 120 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras. |
|
| Power over Ethernet (PoE) ports quantity | 8 |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 55 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 90 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 188 mm |
| Depth The distance from the front to the back of something. | 119 mm |
| Height The measurement of the product from head to foot or from base to top. | 38 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 750 g |
| Packaging data | |
| Manual |
|
| Package length | 14.37 |
| Package width The distance from one side of the packaging to the other. | 197 mm |
| Package depth The distance from the front to the back of the packaging. | 371 mm |
| Package height The distance from the top to the bottom of the packaging. | 69 mm |
| Package weight Weight of the packaged product. | 1.75 kg |
| SKU | 242354 |
| MPN | IES81000POE |
| Brand | Startech |
| Product Condition | Brand New/Unused |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://www.startech.com/ |
