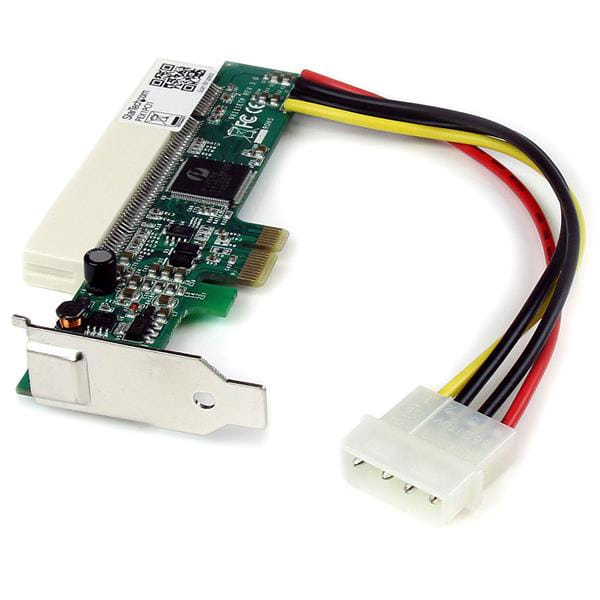

StarTech PCI Express to PCI Adapter Card

Item No:
211001
MPN:
PEX1PCI1
$86.82

StarTech PCI Express to PCI Adapter Card

$86.82
Payment options
Shipping Information
  • Available for shipping
  • Usually leaves our partner warehouse in 3-5 business days
Store Availability
  • 4-6 business days at Bankstown Store
  • 4-6 business days at Castle Hill Store
  • 3-5 business days at Northmead Store
Shipping Estimate
Up to 250MBps of available bandwidth

This PCIe to PCI Adapter Card lets you use low profile PCI expansion cards in a server or desktop motherboard PCI Express slot. Compliant with PCI Express Specification 1.0a and PCI Specification 2.2, the adapter card connects through a PCIe 1x slot to provide a low profile PCI slot in its place. A spare full size bracket for PCI Express card is also included for use in larger desktop or server PCI Express slots.

A versatile solution, the adapter card converts PCIe to PCI or PCI-X; a built-on LP4 power connector links the card to the computer power supply, allowing you to install universal voltage PCI cards (3.3V/5V).

The adapter card offers an economical solution that lets you extend the usability of older or extra PCI Bus cards in newer PCIe capable systems.

To ensure suitable installation in any low profile server or desktop computer, the PCIe/PCI adapter features an innovative bracket design that adapts and secures the low profile PCI or PCI-X card into the converted slot.

Connector(s)
Connector Type(s)PCI Express x1 Male
Internal PortsLP4 (4 pin, Molex Large Drive Power) Male
PCI (5V, 32-bit) Slot Female
Environmental
Operating Temperature0?C to 85?C (32?F to 185?F)
Hardware
Bus TypePCI Express
Card TypeStandard Profile
Chipset IDPericom - PI7C9X111SL
InterfacePCI / PCI-X (5 / 3.3V)
Packaging Information
Shipping (Package) Weight140 g [4.9 oz]
Physical Characteristics
Product Height20 mm [0.8 in]
Product Length135 mm [5.3 in]
Product Weight52 g [1.8 oz]
Product Width70 mm [2.8 in]
Software
OS CompatibilityOS Independent; No additional drivers or software required
Special Notes / Requirements
System and Cable RequirementsThe PEX1PCI1 is not compatible with 32-bit 3.3V PCI cards. It is compatible with 5V or universal 3.3V/5V PCI cards only.
What's in the Box
Included in PackageInstruction Manual
PCI Express to PCI Card
Spare Full Profile Bracket
Ports & interfaces
Host interface Interface that enables a host controller to communicate with a driver. PCIe
Output interface The socket (port) where the output connectors are connected. PCI 32-bit
Design
Product colour The colour e.g. red, blue, green, black, white. Red
Certification CE, FC, ROHS
Features
Chipset Set of electronic components in an integrated circuit that manages the data flow between the processor, memory and peripherals. It is usually found in the motherboard of a computer. Chipsets are usually designed to work with a specific family of microprocessors. Because it controls communications between the processor and external devices, the chipset plays a crucial role in determining system performance. PERICOM PI7C9X110BNBE
Operational conditions
Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. 0 - 85 °C
Weight & dimensions
Width The measurement or extent of something from side to side. 70 mm
Depth The distance from the front to the back of something. 135 mm
Height The measurement of the product from head to foot or from base to top. 20 mm
Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. 52 g
Packaging data
Package width The distance from one side of the packaging to the other. 175 mm
Package depth The distance from the front to the back of the packaging. 144 mm
Package height The distance from the top to the bottom of the packaging. 32 mm
Package weight Weight of the packaged product. 121 g
Other features
Ports quantity The number of ports or external interfaces to which other equipment can be connected. 1
I/O ports An interface on a device to which you can connect another device. 1x PCI 32-bit
Platform Description of a technology platform including a processor, chipset, platform software and wired networking capabilities. PC
Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. Wired
Form factor The shape or design of the product. LP/ST
Mac compatibility Product can be used with Apple Mac software and/or hardware.
Compatible operating systems List of desktop operating systems tested as compatible with this product. Windows 2000/XP/Vista
Power requirements 3.3V
Package length 8.27
More Information
SKU 211001
MPN PEX1PCI1
Brand Startech
Product Condition Brand New/Unused
Stock Availability Available for Shipping
Warranty Period 2 Years Warranty
