Supports Full/Half-duplex,Auto Negotiation, MDI/MIDIX

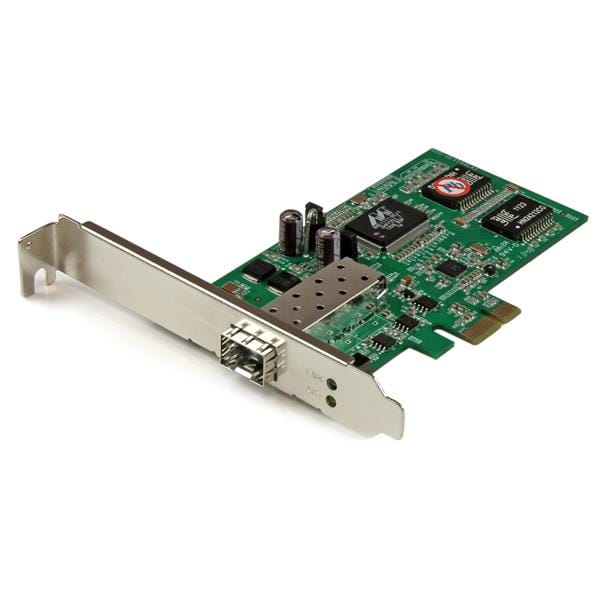

The PEX1000SFP2 PCI Express Gigabit Fiber Network Card lets you connect a PCI Express-based computer directly to a fiber optic network using the Gigabit SFP of your choice.
This Gigabit fiber card adapts to your network fiber connection and distance requirements to offer flexible configuration via an open SFP slot, and is compatible with most Gigabit SFP transceivers. With broad SFP compatibility the fiber network card lets you use your preferred SFP, giving you more options to connect your computer directly to a fiber network.
With fiber connectivity, your network is not susceptible to electronic interference, often problematic with standard RJ45 copper networks, making this versatile fiber card ideal for secure network setups.
Plus, the card is equipped with a standard profile bracket and includes a low-profile/half-height bracket, perfect for installation in small form-factor computers or 1U server and rackmount applications.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
| Connector(s) | |
| Connector Type(s) | PCI Express x1 Male |
| External Ports | SFP Slot Female |
| Environmental | |
| Humidity | 5~95% RH (Non-Condensing) |
| Operating Temperature | 0?C to 45?C (32?F to 113?F) |
| Storage Temperature | -20?C to 70?C (-4?F to 158?F) |
| Hardware | |
| Bus Type | PCI Express |
| Card Type | Standard Profile (LP bracket incl.) |
| Chipset ID | Realtek - RTL8168E Marvell - 88E1111B1 |
| Industry Standards | IEEE802.3z 1000BASE-SX/LX, IEEE 802.1Q VLAN tagging, IEEE 802.1P Layer 2 Priority Encoding, IEEE 802.3x full duplex flow control, RFC 1157 SNMP v1 |
| Interface | Fiber Ethernet |
| Ports | 1 |
| Indicators | |
| LED Indicators | Activity (Yellow) |
| Link (Green) | |
| Packaging Information | |
| Shipping (Package) Weight | 200 g [7.1 oz] |
| Performance | |
| Auto MDIX | Yes |
| Buffer Size | 48 KB |
| Compatible Networks | 1000 Mbps (1 Gbps) |
| Full Duplex Support | Yes |
| Maximum Data Transfer Rate | 2000 Mbps (2 Gbps) - Full-Duplex |
| Physical Characteristics | |
| Product Height | 118 mm [4.6 in] |
| Product Length | 128 mm [5 in] |
| Product Weight | 57 g [2 oz] |
| Product Width | 18 mm [0.7 in] |
| Power | |
| Power Consumption (In Watts) | 3.2W Max |
| Software | |
| OS Compatibility | Windows? XP, Vista, 7, 8, 8.1, 10 Windows Server? 2003, 2008 R2, 2012, 2012 R2, 2016 Mac OS X? 10.5 to 10.9 Linux 2.4.x to 4.4.x LTS Versions only Microsoft Hyper-V? |
| Special Notes / Requirements | |
| Note | Fiber data transfer speeds and distances are dependent on the SFP used (sold separately) |
| System and Cable Requirements | Not compatible with 100Mbps SFP transceivers, Gigabit SFP transceiver required |
| What's in the Box | |
| Included in Package | 1 Port PCI Express Gigabit SFP Network Card |
| Driver CD | |
| Instruction Manual | |
| Low-Profile Bracket | |
| Ports & interfaces | |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| Host interface Interface that enables a host controller to communicate with a driver. | PCI Express |
| Interface Interface ports to connect pieces of equipment. USB (Universal Serial Bus) has become the most popular wired interface to connect peripherals. USB 2.0 supports speeds up to 480 Mbit/s (USB 1: 12 Mbit/s). The interface FireWire is also known as the IEEE 1394 standard. Enhanced IDE (EIDE)is sometimes referred to as Fast ATA, Fast IDE or ATA-2. | Fiber |
| Fiber ports quantity The number of sockets (ports) for fibers (cables). | 1 |
| Fiber optic connector This terminates the end of an optical fiber, and enables quicker connection and disconnection than splicing. The connectors mechanically couple and align the cores of fibers so light can pass. Better connectors lose very little light due to reflection or misalignment of the fibers. In all there have been about 100 types of optic fiber connectors produced. | SFP |
| Network | |
| Maximum data transfer rate The maximum speed with which data can be transmitted from one device to another. | 2000 Mbit/s |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.1p,IEEE 802.1Q,IEEE 802.3x,IEEE 802.3z |
| Design | |
| Internal The product is built in. |
 |
| Chipset Set of electronic components in an integrated circuit that manages the data flow between the processor, memory and peripherals. It is usually found in the motherboard of a computer. Chipsets are usually designed to work with a specific family of microprocessors. Because it controls communications between the processor and external devices, the chipset plays a crucial role in determining system performance. | Realtek RTL8168E, Marvell 88E1111B1 |
| LED indicators | Activity,Link |
| Power | |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 3.2 W |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 45 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 70 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| System requirements | |
| Windows operating systems supported Windows vesions wich can be used with the device. | Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 Pro,Windows 10 Pro x64,Windows 10 x64,Windows 7,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows 8.1,Windows 8.1 Enterprise,Windows 8.1 Enterprise x64,Windows 8.1 Pro,Windows 8.1 Pro x64,Windows 8.1 x64,Windows Vista,Windows Vista Business,Windows Vista Business x64,Windows Vista Enterprise,Windows Vista Enterprise x64,Windows Vista Home Basic,Windows Vista Home Basic x64,Windows Vista Home Premium,Windows Vista Home Premium x64,Windows Vista Ultimate,Windows Vista Ultimate x64,Windows Vista x64,Windows XP,Windows XP Home,Windows XP Home x64,Windows XP Professional,Windows XP Professional x64 |
| Mac operating systems supported Mac operating systems e.g. OS X can be used with the device. | Mac OS X 10.5 Leopard,Mac OS X 10.6 Snow Leopard,Mac OS X 10.7 Lion,Mac OS X 10.8 Mountain Lion,Mac OS X 10.9 Mavericks |
| Linux operating systems supported 8 RT. Linux (9.4, 9.5), Red Hat Enterprise Linux 5.0 (supported with a pre-built package); SUSE Linux (10.3, 11.0, 11, 11.1, 11.2), Fedora (9, 9.0, 10, 10.0, 11.0, 11, 12, 12.0), Ubuntu (8.04, 8.04.1, 8.04.2, 8.10, 9.04, 9.10, 10.04), Debian (5.0, 5.0.1, 5.0.2, 5.0.3) |
|
| Server operating systems supported | Windows Server 2003,Windows Server 2008 R2,Windows Server 2012,Windows Server 2012 R2,Windows Server 2016 |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 18 mm |
| Depth The distance from the front to the back of something. | 128 mm |
| Height The measurement of the product from head to foot or from base to top. | 118 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 57 g |
| Packaging data | |
| Quantity The number of products there are. | 1 |
| Package width The distance from one side of the packaging to the other. | 171 mm |
| Package depth The distance from the front to the back of the packaging. | 217 mm |
| Package height The distance from the top to the bottom of the packaging. | 52 mm |
| Package weight Weight of the packaged product. | 200 g |
| Other features | |
| Manual |
|
| SKU | 216202 |
| MPN | PEX1000SFP2 |
| Brand | Startech |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://www.startech.com/ |
