SATA III:6GBPS, Up to 4TB Hard Drive

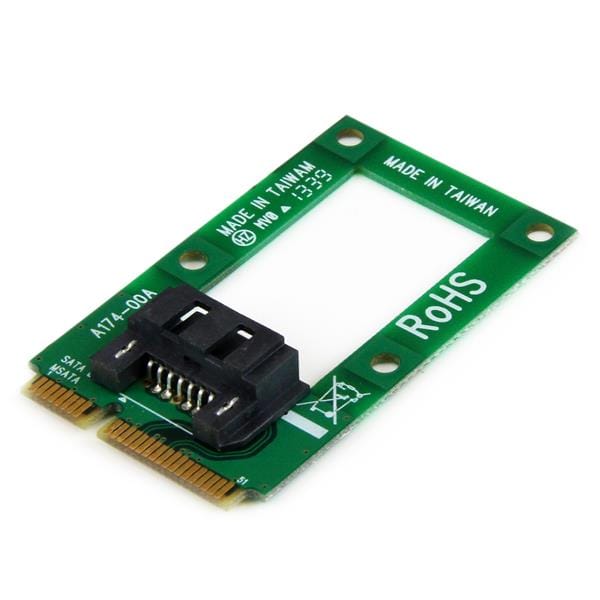

The MSAT2SAT3 mSATA to SATA adapter enables you to connect a standard SATA drive to an available mSATA port.
The adapter improves system capacity by enabling an mSATA port to host a larger SATA hard drive (tested up to 4TB). For guaranteed compatibility and performance the adapter is compliant with SATA I/II/III revisions, allowing for transfer speeds up to 6Gb per second.
The MSAT2SAT3 is backed by a StarTech.com 2-year warranty and free lifetime technical support.
| Connector(s) | |
| Drive Connectors | SATA (7 pin, Data) Receptacle |
| Host Connectors | mSATA (52 pin, Mini SATA) Male |
| Environmental | |
| Humidity | Operating 20% to 80% Non Operating 15% to 90% |
| Operating Temperature | 5?C to 50?C (41?F to 122?F) |
| Storage Temperature | -25?C to 70?C (-13?F to 158?F) |
| Hardware | |
| Compatible Drive Types | SATA |
| Drive Installation | Fixed |
| Drive Size | 2.5in & 3.5in |
| Interface | Micro SATA |
| SATA | |
| Number of Drives | 1 |
| Packaging Information | |
| Shipping (Package) Weight | 0 kg [0 lb] |
| Performance | |
| Max Drive Capacity | Currently tested with up to 4TB 7200 RPM hard drive |
| Type and Rate | SATA III (6 Gbps) |
| Physical Characteristics | |
| Product Height | 8 mm [0.3 in] |
| Product Length | 51 mm [2 in] |
| Product Weight | 4 g [0.1 oz] |
| Product Width | 30 mm [1.2 in] |
| Software | |
| OS Compatibility | OS independent; No software or drivers required |
| What's in the Box | |
| Included in Package | Installation Guide |
| mSATA to SATA Adapter | |
| Screw kit | |
| Ports & interfaces | |
| Host interface Interface that enables a host controller to communicate with a driver. | mSATA |
| Output interface The socket (port) where the output connectors are connected. | SATA |
| SATA revision | 3.0 |
| Design | |
| Internal The product is built in. |
 |
| Product colour The colour e.g. red, blue, green, black, white. | Green |
| RoHS compliance The Restriction of Hazardous Substances (RoHS) Directive aims to restrict certain dangerous substances commonly used in electrical and electronic equipment. Any RoHS compliant product is tested for the presence of Lead (Pb), Cadmium (Cd), Mercury (Hg), Hexavalent chromium (Hex-Cr), Polybrominated biphenyls (PBB), and Polybrominated diphenyl ethers (PBDE). PBB and PBDE are flame retardants used in several plastics. For Cadmium and Hexavalent chromium, there must be less than 0.01% of the substance by weight at raw homogeneous materials level. For Lead, PBB, and PBDE, there must be no more than 0.1% of the material, when calculated by weight at raw homogeneous materials. Any RoHS compliant component must have 100 ppm or less of mercury and the mercury must not have been intentionally added to the component. In the EU, some military and medical equipment are exempt from RoHS compliance. |
|
| Features | |
| Data transfer rate (max) | 6 Gbit/s |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 5 - 50 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -25 - 70 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 15 - 90% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 30 mm |
| Depth The distance from the front to the back of something. | 51 mm |
| Height The measurement of the product from head to foot or from base to top. | 8 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 4 g |
| Packaging data | |
| User guide |
|
| Package width The distance from one side of the packaging to the other. | 125 mm |
| Package depth The distance from the front to the back of the packaging. | 225 mm |
| Package height The distance from the top to the bottom of the packaging. | 10 mm |
| Package weight Weight of the packaged product. | 15 g |
| Other features | |
| Package length | 4.92 |
| SKU | 210973 |
| MPN | MSAT2SAT3 |
| Brand | Startech |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://www.startech.com/ |
