High Speed USB 2.0 to support up to 480MBPs

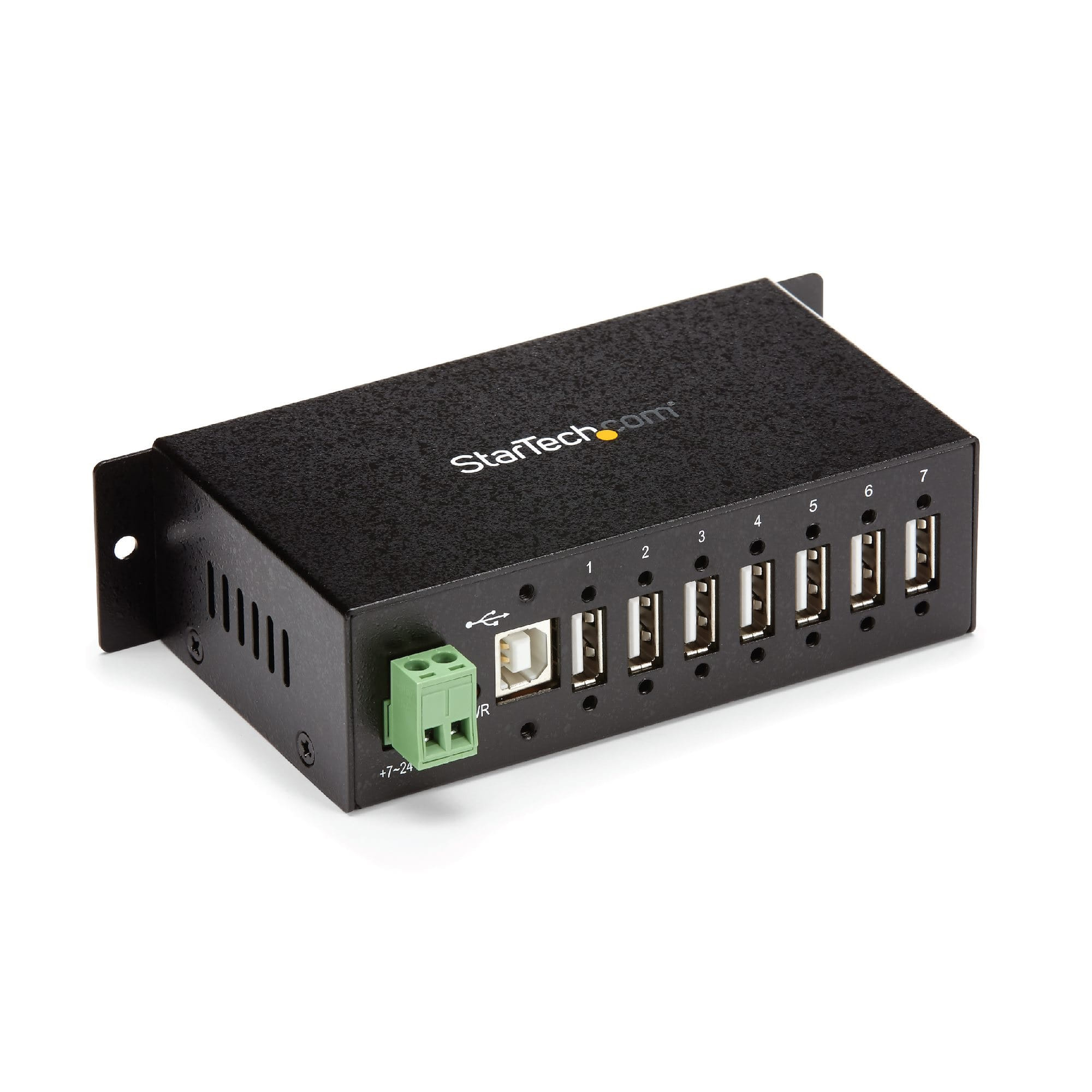

This sturdy, industrial grade USB 2.0 hub can be wall mounted or installed onto a DIN rail for convenient access to its 7 female USB 2.0 ports, providing a work area, server room, or industrial environment with USB 2.0 connectivity.
With support for Hi-Speed USB 2.0 data transfer rates of up to 480 Mbps, this 7 port USB hub is backwards compatible with USB 1.1 specifications and can be powered through the host USB bus, or self powered using a three wire terminal block connector (7-24V).
| Connector(s) | |
| External Ports | Terminal Block (2 Wire) |
| USB B (4 pin) Female | |
| USB Type-A (4 pin) USB 2.0 Female | |
| Environmental | |
| Humidity | 5~95% RH |
| Operating Temperature | 0?C to 55?C (32?F to 131?F) |
| Storage Temperature | -20?C to 85?C (-4?F to 185?F) |
| Hardware | |
| Chipset ID | Terminus FE2.1 |
| Industry Standards | USB 2.0 |
| Interface | USB 2.0 |
| Ports | 7 |
| Indicators | |
| LED Indicators | Power |
| Packaging Information | |
| Shipping (Package) Weight | 0.5 kg [1.1 lb] |
| Performance | |
| Maximum Data Transfer Rate | Up to 480Mbps |
| MTBF | 170,227 Hours |
| Surge Protection | 15KV ESD protection |
| Physical Characteristics | |
| Color | Black |
| Enclosure Type | Steel |
| Product Height | 36.3 mm [1.4 in] |
| Product Length | 133 mm [5.2 in] |
| Product Weight | 500 g [17.6 oz] |
| Product Width | 61.5 mm [2.4 in] |
| Power | |
| Input Voltage | 7 ~ 24 DC |
| Power Source | Terminal Block |
| Software | |
| OS Compatibility | OS independent; No software or drivers required |
| Special Notes / Requirements | |
| System and Cable Requirements | Any computer with a USB 2.0 port |
| What's in the Box | |
| Included in Package | DIN rail mounting bracket |
| Instruction Manual | |
| Screw kit | |
| USB 2.0 Hub | |
| USB-B w/screw lock to USB-A cable | |
| Ports & interfaces | |
| Host interface Interface that enables a host controller to communicate with a driver. | USB 2.0 Type-B |
| Hub interfaces A hub is a device for connecting multiple devices together. The hub interface is where the hub connects to other devices via input/output (I/O) ports. | USB 2.0 |
| USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black. | 7 |
| Ports quantity The number of ports or external interfaces to which other equipment can be connected. | 7 |
| Terminal block port |
 |
| Features | |
| Data transfer rate Rate at which data can be transferred, usually measured in units per second. May vary with network configurations. | 480 Mbit/s |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Housing material What the casing of the product is made of. | Steel |
| Surge protection |
|
| LED indicators |
|
| Hot-swap |
|
| Plug and Play Indicates whether this product supports is "plug and play". Plug and play is hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration. |
|
| Certification | CE, FCC, RoHS, REACH, TAA |
| Power | |
| Input voltage The voltage (V) which is required to power the product. | 7 - 24 V |
| System requirements | |
| Compatible operating systems List of desktop operating systems tested as compatible with this product. | Windows 7/Vista |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 61.5 mm |
| Depth The distance from the front to the back of something. | 133 mm |
| Height The measurement of the product from head to foot or from base to top. | 36.3 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 283 g |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 216 mm |
| Package depth The distance from the front to the back of the packaging. | 151 mm |
| Package height The distance from the top to the bottom of the packaging. | 51 mm |
| Package weight Weight of the packaged product. | 488 g |
| Package length | 11.18 |
| Packaging content | |
| Cables included | USB |
| Manual |
|
| DIN rail kit included |
|
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 55 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Performance | |
| Mean time between failures (MTBF) Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism. | 170227 h |
| Other features | |
| Chipset Set of electronic components in an integrated circuit that manages the data flow between the processor, memory and peripherals. It is usually found in the motherboard of a computer. Chipsets are usually designed to work with a specific family of microprocessors. Because it controls communications between the processor and external devices, the chipset plays a crucial role in determining system performance. | Terminus - FE2.1 |
| SKU | 219016 |
| MPN | ST7200USBM |
| Brand | Startech |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://www.startech.com/ |
