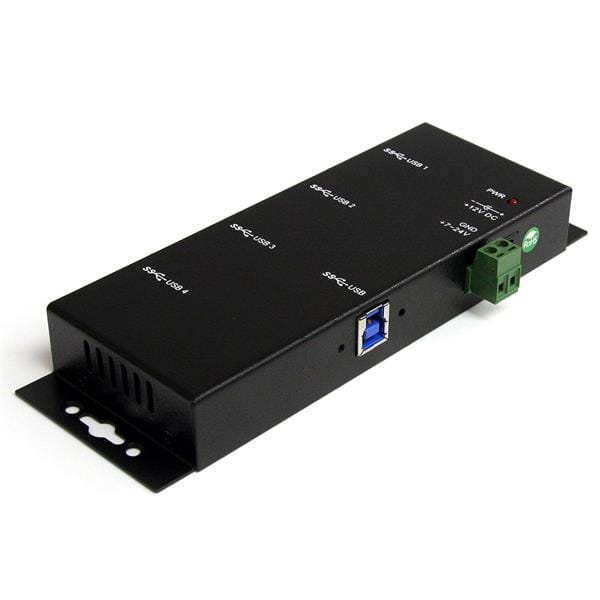

The ST4300USBM Mountable 4-Port Industrial USB Hub (USB 3.0) offers a simple way to expand a systems current USB capability by providing 4 additional external USB 3.0 ports from a single USB 3.0 host connection, with speeds up to 5 Gbps.
Designed for extreme operating environments, this industrial-grade hub provides reliability under almost any condition and can be securely mounted to most surfaces.
Fully compliant with the SuperSpeed USB 3.0 specification, this industrial USB hub is backward compatible with USB 2.0 and 1.x specifications for simultaneous support of older USB peripherals or even older systems without USB capabilities.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
| Connector(s) | |
| External Ports | Terminal Block (2 Wire) |
| USB Type-A (9 pin) USB 3.0 Female | |
| USB Type-B (9 pin) USB 3.0 Female | |
| Environmental | |
| Humidity | 5~95% RH |
| Operating Temperature | 0?C to 55?C (32?F to 131?F) |
| Storage Temperature | -20?C to 85?C (-4?F to 185?F) |
| Hardware | |
| Chipset ID | VIA - VL811+ |
| Fast-Charge Port(s) | No |
| Interface | USB 3.0 |
| Ports | 4 |
| USB-C Device Port(s) | No |
| USB-C Host Connection | No |
| Indicators | |
| LED Indicators | Power (Red) |
| USB Device Connection (Green) | |
| Packaging Information | |
| Shipping (Package) Weight | 1350 g [47.7 oz] |
| Performance | |
| Maximum Data Transfer Rate | 5 Gbps |
| MTBF | 245,881 Hours |
| Physical Characteristics | |
| Color | Black |
| Enclosure Type | Steel |
| Form Factor | Industrial |
| Product Height | 23.5 mm [0.9 in] |
| Product Length | 152 mm [6 in] |
| Product Weight | 480 g [16.9 oz] |
| Product Width | 59.6 mm [2.3 in] |
| Power | |
| Center Tip Polarity | Positive |
| Output Current | 3A |
| Output Voltage | 12 DC |
| Plug Type | M |
| Power Consumption (In Watts) | 36 |
| Power Source | AC Adapter Included |
| Software | |
| OS Compatibility | OS Independent; No additional drivers or software required |
| Special Notes / Requirements | |
| System and Cable Requirements | Available USB 3.0 port |
| What's in the Box | |
| Included in Package | Industrial USB 3.0 Hub |
| Instruction Manual | |
| Universal Power Adapter (NA/JP, EU, UK, ANZ) | |
| USB 3.0 cable (non-locking) | |
| Ports & interfaces | |
| Host interface Interface that enables a host controller to communicate with a driver. | USB 3.2 Gen 1 (3.1 Gen 1) Type-B |
| Hub interfaces A hub is a device for connecting multiple devices together. The hub interface is where the hub connects to other devices via input/output (I/O) ports. | USB 3.2 Gen 1 (3.1 Gen 1) Type-A |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Ports quantity The number of ports or external interfaces to which other equipment can be connected. | 4 |
| Terminal block port |
 |
| DC-in jack The socket/plug where the DC electricity supply connects to the device. |
|
| Features | |
| Data transfer rate Rate at which data can be transferred, usually measured in units per second. May vary with network configurations. | 5000 Mbit/s |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Housing material What the casing of the product is made of. | Steel |
| LED indicators | Power,USB |
| Hot-swap |
|
| Plug and Play Indicates whether this product supports is "plug and play". Plug and play is hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration. |
|
| Certification | RoHS, CE, FCC, TAA, REACH |
| Power | |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 36 W |
| Output voltage | 12 V |
| Output current | 3 A |
| Power plug type | Type M |
| System requirements | |
| Windows operating systems supported Windows vesions wich can be used with the device. | Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 Pro,Windows 10 Pro x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows XP Home,Windows XP Home x64,Windows XP Professional,Windows XP Professional x64 |
| Mac operating systems supported Mac operating systems e.g. OS X can be used with the device. | Mac OS X 10.4 Tiger,Mac OS X 10.5 Leopard,Mac OS X 10.6 Snow Leopard |
| Compatible operating systems List of desktop operating systems tested as compatible with this product. | Windows XP(32/64-bit)/ Server 2003(32/64-bit)/ Vista(32/64-bit)/ Server 2008 R2/ 7(32/64-bit), Mac OS 10.2 - 10.6 |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 59.6 mm |
| Depth The distance from the front to the back of something. | 152 mm |
| Height The measurement of the product from head to foot or from base to top. | 24 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 301 g |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Package width The distance from one side of the packaging to the other. | 295 mm |
| Package depth The distance from the front to the back of the packaging. | 191 mm |
| Package height The distance from the top to the bottom of the packaging. | 69 mm |
| Package weight Weight of the packaged product. | 1.17 kg |
| Package length | 11.02 |
| Packaging content | |
| AC adapter included |
|
| Included power plug types | AU,EU,NA,UK |
| Cables included | USB |
| Manual |
|
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 55 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Performance | |
| Mean time between failures (MTBF) Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism. | 245881 h |
| Other features | |
| Chipset Set of electronic components in an integrated circuit that manages the data flow between the processor, memory and peripherals. It is usually found in the motherboard of a computer. Chipsets are usually designed to work with a specific family of microprocessors. Because it controls communications between the processor and external devices, the chipset plays a crucial role in determining system performance. | VIA/VLI - VL811+ |
| SKU | 249319 |
| MPN | ST4300USBM |
| Brand | Startech |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://www.startech.com/ |
