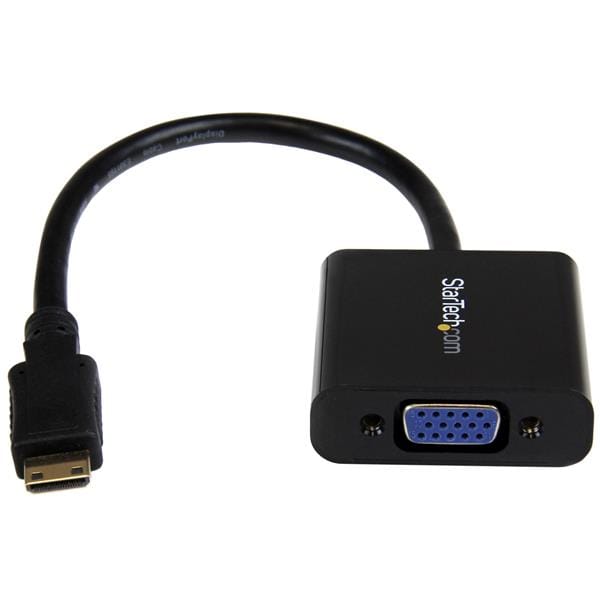

The MNHD2VGAE2 HDMI® Mini HDMI to VGA adapter/converter actively converts an HDMI® Mini source video signal from your digital camera or tablet PC, onto a VGA projector or display. The adapter supports full 1080p resolutions, making it a convenient choice for applications requiring high-definition capability. The Mini HDMI to VGA adapter is intended for displaying user generated content such as presentations, documents, and work sheets onto a VGA projector or monitor.
The HDMI Mini/VGA adapter features a compact design, with no need for an external power source, which ensures a compact and portable solution that is easy to carry as an accessory .
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
| Connector(s) | |
| Connector A | Mini HDMI (19 pin) Male Input |
| Connector B | VGA (15 pin, High Density D-Sub) Female Output |
| Environmental | |
| Humidity | 40% to 85% RH Non-Condensing |
| Operating Temperature | 0?C to 60?C (32?F to 140?F) |
| Storage Temperature | -10?C to 70?C (14?F to 158?F) |
| Hardware | |
| Audio | No |
| Converter Type | Format Converter |
| Industry Standards | High Speed HDMI? |
| Ports | 1 |
| Packaging Information | |
| Shipping (Package) Weight | 33 g [1.2 oz] |
| Performance | |
| Maximum Analog Resolutions | 1920x1200 |
| Maximum Digital Resolutions | 1920x1200 |
| Supported Resolutions | 1920x1200, 1920x1080 (1080p), 1600x1200 @ 60Hz |
| Wide Screen Supported | Yes |
| Physical Characteristics | |
| Cable Length | 203 mm [8 in] |
| Color | Black |
| Enclosure Type | Plastic |
| Product Height | 15 mm [0.6 in] |
| Product Length | 203 mm [8 in] |
| Product Weight | 0.1 g [0 oz] |
| Product Width | 40 mm [1.6 in] |
| What's in the Box | |
| Included in Package | Mini HDMI? to VGA Converter Adapter |
| Video | |
| Maximum video resolution This is the maximum resolution of video images. Resolution is a measure of the degree of detail visible. | 1920 x 1080 pixels |
| Supported video modes The video modes that can be displayed by the device. | 1080p |
| Audio | |
| Audio support |
 |
| Other features | |
| Converter type | Active video converter |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Housing material What the casing of the product is made of. | Plastic |
| Plug and Play Indicates whether this product supports is "plug and play". Plug and play is hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration. |
 |
| Cable length How long the cable is. | 0.203 m |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 1920 x 1080 pixels |
| Package length | 8.66 |
| RoHS compliance The Restriction of Hazardous Substances (RoHS) Directive aims to restrict certain dangerous substances commonly used in electrical and electronic equipment. Any RoHS compliant product is tested for the presence of Lead (Pb), Cadmium (Cd), Mercury (Hg), Hexavalent chromium (Hex-Cr), Polybrominated biphenyls (PBB), and Polybrominated diphenyl ethers (PBDE). PBB and PBDE are flame retardants used in several plastics. For Cadmium and Hexavalent chromium, there must be less than 0.01% of the substance by weight at raw homogeneous materials level. For Lead, PBB, and PBDE, there must be no more than 0.1% of the material, when calculated by weight at raw homogeneous materials. Any RoHS compliant component must have 100 ppm or less of mercury and the mercury must not have been intentionally added to the component. In the EU, some military and medical equipment are exempt from RoHS compliance. |
|
| Certification | CE, FCC, REACH |
| Ports & interfaces | |
| Host interface Interface that enables a host controller to communicate with a driver. | Mini-HDMI |
| Output interface The ports (sockets) where the device is connected via connectors and cables to external devices. | VGA |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 60 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -10 - 70 °C |
| Operating relative humidity (H-H) | 40 - 85% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 40 mm |
| Depth The distance from the front to the back of something. | 203 mm |
| Height The measurement of the product from head to foot or from base to top. | 15 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 32.7 g |
| Packaging data | |
| Quantity The number of products there are. | 1 |
| Package width The distance from one side of the packaging to the other. | 195 mm |
| Package depth The distance from the front to the back of the packaging. | 220 mm |
| Package height The distance from the top to the bottom of the packaging. | 30 mm |
| Package weight Weight of the packaged product. | 33 g |
| SKU | 243180 |
| MPN | MNHD2VGAE2 |
| Brand | Startech |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Warranty Period | 3 Years Warranty |
| Warranty Contact | https://www.startech.com/ |
