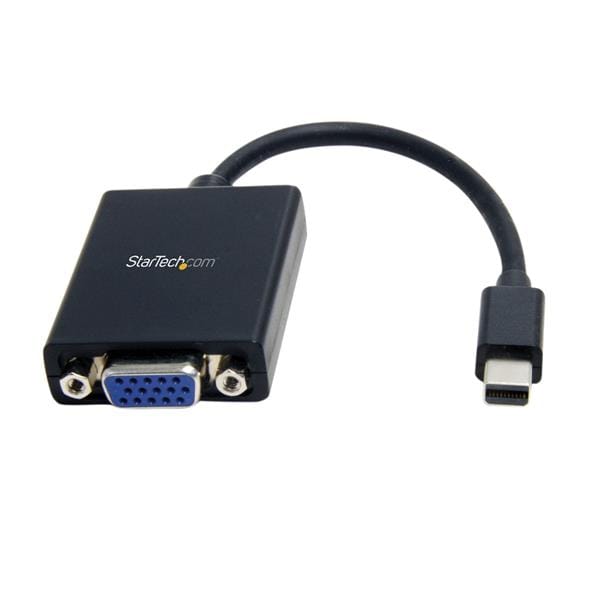

This Mini DisplayPort to VGA adapter lets you connect your mDP computer to a VGA monitor or projector. The adapter works with Mini DisplayPort computers like your Ultrabook™ or Microsoft® Surface.
Easily connect your Mini DisplayPort computer to a VGA display
The mDP to VGA adapter lets you connect your Mini DisplayPort laptop, desktop or tablet to a VGA display. The adapter is compatible with mDP ports as well as Thunderbolt 1 and Thunderbolt 2 I/O ports, and supports plug-and-play connectivity ensuring a hassle-free setup.
Works with legacy VGA monitors
The Mini DisplayPort adapter makes your mDP computer fully compatible with existing VGA monitors or projectors in your home or around your office. The VGA connector features nuts that mate with the screws on standard VGA cables, to ensure your video cable won?t get disconnected.
Designed for maximum portability
The Mini DisplayPort to VGA converter maximizes portability with a compact, lightweight design, making it the perfect travel accessory to carry with your Surface Pro or Ultrabook, fitting easily into your laptop bag or carrying case. This ultra-portable design makes this adapter perfect for BYOD (Bring Your Own Device) applications at the office.
Crystal-clear picture quality
With support for video resolutions up to 1920x1200 or 1080p, you?ll be surprised at the picture quality the adapter provides, even when connected to a legacy VGA monitor, projector or television. The adapter harnesses the video capabilities built into your mDP connection to deliver every detail in stunning high-definition.
The MDP2VGA is backed by a 2-year StarTech.com warranty and free lifetime technical support.
| Connector(s) | |
| Connector A | Mini-DisplayPort (20 pin) Male |
| Connector B | VGA (15 pin, High Density D-Sub) Female |
| Hardware | |
| Adapter Style | Adapter |
| Audio | No |
| Converter Type | Active |
| Packaging Information | |
| Shipping (Package) Weight | 0.1 kg [0.1 lb] |
| Performance | |
| Maximum Analog Resolutions | 1920x1200 |
| Physical Characteristics | |
| Cable Length | 102 mm [4 in] |
| Color | Black |
| Enclosure Type | Plastic |
| Product Height | 19.1 mm [0.7 in] |
| Product Length | 102 mm [4 in] |
| Product Weight | 50 g [1.8 oz] |
| Product Width | 35.6 mm [1.4 in] |
| What's in the Box | |
| Included in Package | Mini DisplayPort to VGA adapter |
| Video | |
| Maximum video resolution This is the maximum resolution of video images. Resolution is a measure of the degree of detail visible. | 1920 x 1200 pixels |
| Supported video modes The video modes that can be displayed by the device. | 720p,1080p |
| Audio | |
| Audio support |
 |
| Other features | |
| Converter type | Active video converter |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Housing material What the casing of the product is made of. | Plastic |
| Plug and Play Indicates whether this product supports is "plug and play". Plug and play is hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration. |
 |
| Cable length How long the cable is. | 0.13 m |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 1920 x 1200 pixels |
| Package length | 7.87 |
| RoHS compliance The Restriction of Hazardous Substances (RoHS) Directive aims to restrict certain dangerous substances commonly used in electrical and electronic equipment. Any RoHS compliant product is tested for the presence of Lead (Pb), Cadmium (Cd), Mercury (Hg), Hexavalent chromium (Hex-Cr), Polybrominated biphenyls (PBB), and Polybrominated diphenyl ethers (PBDE). PBB and PBDE are flame retardants used in several plastics. For Cadmium and Hexavalent chromium, there must be less than 0.01% of the substance by weight at raw homogeneous materials level. For Lead, PBB, and PBDE, there must be no more than 0.1% of the material, when calculated by weight at raw homogeneous materials. Any RoHS compliant component must have 100 ppm or less of mercury and the mercury must not have been intentionally added to the component. In the EU, some military and medical equipment are exempt from RoHS compliance. |
|
| Certification | REACH, CE, FCC |
| Ports & interfaces | |
| Host interface Interface that enables a host controller to communicate with a driver. | Mini DisplayPort |
| Output interface The ports (sockets) where the device is connected via connectors and cables to external devices. | VGA |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 35.6 mm |
| Depth The distance from the front to the back of something. | 185 mm |
| Height The measurement of the product from head to foot or from base to top. | 19 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 28 g |
| Packaging data | |
| Quantity The number of products there are. | 1 |
| Package width The distance from one side of the packaging to the other. | 200 mm |
| Package depth The distance from the front to the back of the packaging. | 220 mm |
| Package height The distance from the top to the bottom of the packaging. | 6 mm |
| Package weight Weight of the packaged product. | 37 g |
| SKU | 243005 |
| MPN | MDP2VGA |
| Brand | Startech |
