Now you can organize your workspace with less mess than ever before.

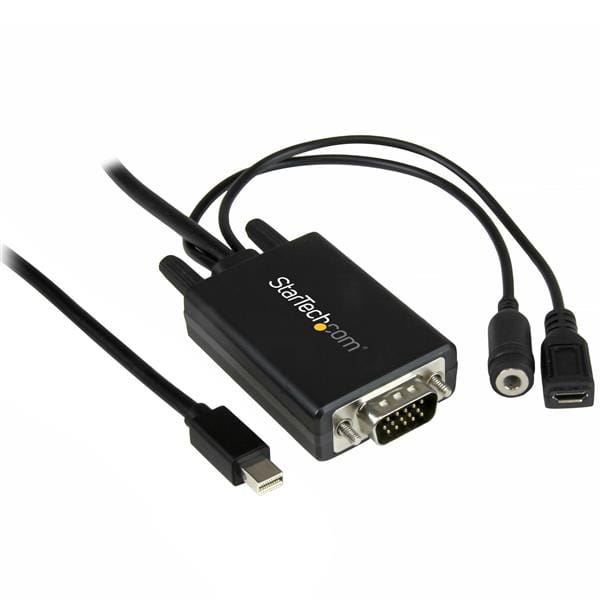

This unique 6-foot Mini DisplayPort™ to VGA adapter cable features a built-in audio port, which enables you to connect a VGA monitor as well as speakers to your Mini DisplayPort (mDP) equipped desktop computer.
Create a clutter-free environment
Remove the cable clutter from your desk. With the built-in audio port you no longer need to run a separate audio cable from your monitor or speakers directly to your desktop or laptop computer. Simply plug the audio cable from your speakers into the adapter cable for a simple and tidy solution.
In order to use the audio function of the adapter, it needs to be powered through USB. Simply connect a Micro-USB cable into the adapter from your computer, monitor or USB grommet in order to provide the necessary power.
Substitute for a damaged audio port
The adapter guarantees you always have all of the connections you need. If the audio port on your computer is damaged or blocked, this adapter cable ensures you still have sound available for watching video presentations, listening to music while you work or chatting with your colleagues over Skype™.
The adapter cable is compatible with Intel® Thunderbolt™, when connected directly to a supporting DisplayPort over Thunderbolt™ I/O port, and supports resolutions up to 1920x1200 (WUXGA).
The MDP2VGAAMM2M is backed by a 2-year StarTech.com warranty and free lifetime technical support.
| Connector(s) | |
| Connector A | Mini-DisplayPort (20 pin) Male |
| Connector B | 3.5 mm Mini-Jack (3 Position) Female |
| VGA (15 pin, High Density D-Sub) Male | |
| Connector Type(s) | USB Micro-B (5 pin) Female |
| Environmental | |
| Humidity | 40%~50%RH |
| Operating Temperature | 0?C to 70?C (32?F to 158?F) |
| Storage Temperature | -10?C to 55?C (14?F to 131?F) |
| Hardware | |
| Adapter Style | Cable Adapters |
| Audio | Yes |
| Converter Type | Active |
| Packaging Information | |
| Shipping (Package) Weight | 128 g [4.5 oz] |
| Performance | |
| Audio Specifications | 2-channel stereo (3.5mm) |
| Maximum Analog Resolutions | 1920x1200 / 1080p (output) |
| Maximum Digital Resolutions | 1920x1200 / 1080p (input) |
| Wide Screen Supported | Yes |
| Physical Characteristics | |
| Cable Length | 2 m [6.6 ft] |
| Color | Black |
| Product Height | 16.5 mm [0.6 in] |
| Product Length | 2 m [6.6 ft] |
| Product Weight | 104 g [3.7 oz] |
| Product Width | 39.7 mm [1.6 in] |
| Power | |
| Power Source | USB-Powered |
| What's in the Box | |
| Included in Package | 0.5m Micro USB cable |
| 2m Mini DiplayPort to VGA adapter cable with audio | |
| Features | |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Audio connector |
 |
| Audio connector type | 3.5 mm (1/8") |
| Power source What is providing power for the product e.g. mains electricity. | USB |
| Cable length How long the cable is. | 2 m |
| Connector 1 This is the first connector in the device. | Mini DisplayPort |
| Connector 2 This is the second connector in the device. | VGA (D-Sub) + 3.5mm |
| Connector 1 gender The gender of the first connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the part bearing one or which fits into another being called male. | Male |
| Connector 2 gender The gender of the second connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the indented one or the one fitting around the other being called female. | Male |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 1920 x 1200 pixels |
| Supported video modes The video modes that can be displayed by the device. | 1080p,720p |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| RoHS compliance The Restriction of Hazardous Substances (RoHS) Directive aims to restrict certain dangerous substances commonly used in electrical and electronic equipment. Any RoHS compliant product is tested for the presence of Lead (Pb), Cadmium (Cd), Mercury (Hg), Hexavalent chromium (Hex-Cr), Polybrominated biphenyls (PBB), and Polybrominated diphenyl ethers (PBDE). PBB and PBDE are flame retardants used in several plastics. For Cadmium and Hexavalent chromium, there must be less than 0.01% of the substance by weight at raw homogeneous materials level. For Lead, PBB, and PBDE, there must be no more than 0.1% of the material, when calculated by weight at raw homogeneous materials. Any RoHS compliant component must have 100 ppm or less of mercury and the mercury must not have been intentionally added to the component. In the EU, some military and medical equipment are exempt from RoHS compliance. |
|
| Certification | CE, FCC, REACH |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 70 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -10 - 55 °C |
| Operating relative humidity (H-H) | 40 - 50% |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Package width The distance from one side of the packaging to the other. | 200 mm |
| Package depth The distance from the front to the back of the packaging. | 220 mm |
| Package height The distance from the top to the bottom of the packaging. | 26 mm |
| Package weight Weight of the packaged product. | 128 g |
| Weight & dimensions | |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 104 g |
| Width The measurement or extent of something from side to side. | 39.7 mm |
| Depth The distance from the front to the back of something. | 2000 mm |
| Height The measurement of the product from head to foot or from base to top. | 16 mm |
| SKU | 243026 |
| MPN | MDP2VGAAMM2M |
| Brand | Startech |
| Product Condition | Brand New/Unused |
| Warranty Period | 3 Years Warranty |
| Warranty Contact | https://www.startech.com/ |
