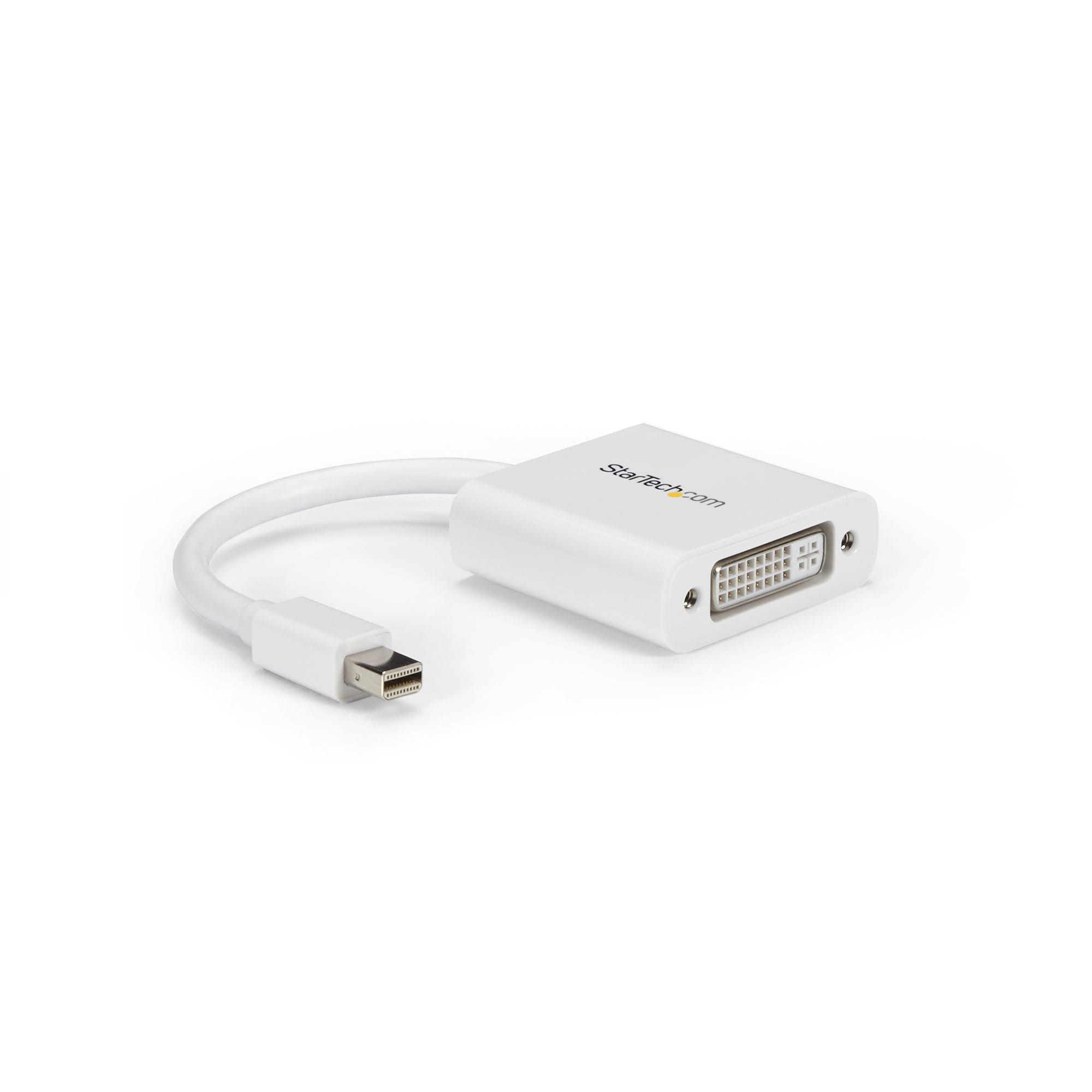

The MDP2DVIW passive Mini DisplayPort® to DVI Adapter (White) offers an easy-to-use DVI/Mini-DisplayPort link that enables you to connect a DVI computer monitor to a device with a Mini-DisplayPort output (such as a laptop video out port) or video card.
The adapter supports high resolution output up to 1920x1200, offering a cost-effective solution for mirroring or extending a computer desktop onto a second display. Plus, because the adapter functions passively, it can be used with a DVI to HDMI adapter, to connect an HDMI-equipped monitor to a Mini DisplayPort output.
This versatile Mini DisplayPort to DVI adapter requires a multimode DisplayPort port (DisplayPort ++) connection to function, and is compatible with Intel® Thunderbolt™ output when directly connected to a supporting DisplayPort over Thunderbolt I/O port.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
| Connector(s) | |
| Connector A | Mini-DisplayPort (20 pin) Male |
| Connector B | DVI-I (29 pin) Female |
| Environmental | |
| Humidity | 40~85% RH |
| Operating Temperature | 0C to 60C (32F to 140F) |
| Storage Temperature | -10C to 70C (14F to 158F) |
| Hardware | |
| Adapter Style | Adapter |
| Audio | No |
| Converter Type | Passive |
| Industry Standards | DisplayPort 1.1a DVI 1.1 |
| Packaging Information | |
| Shipping (Package) Weight | 0 kg [0.1 lb] |
| Performance | |
| Maximum Digital Resolutions | 1920x1200 / 1080p |
| Physical Characteristics | |
| Cable Length | 120 mm [4.7 in] |
| Color | White |
| Enclosure Type | Plastic |
| Product Height | 15 mm [0.6 in] |
| Product Length | 180 mm [7.1 in] |
| Product Weight | 33 g [1.2 oz] |
| Product Width | 45 mm [1.8 in] |
| What's in the Box | |
| Included in Package | Mini DisplayPort to DVI Converter |
| Features | |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Cable length How long the cable is. | 0.12 m |
| Connector 1 This is the first connector in the device. | Mini-DisplayPort |
| Connector 2 This is the second connector in the device. | DVI-I |
| Connector 1 gender The gender of the first connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the part bearing one or which fits into another being called male. | Male |
| Connector 2 gender The gender of the second connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the indented one or the one fitting around the other being called female. | Female |
| DisplayPort version | 1.1a |
| Dual Link DVI A dual-link DVI interface sends data over both of the DVI links to the monitor, and this is how higher resolutions are achieved. With dual-link DVI, a resolution of 2048 x 1536 is possible. |
 |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 1920 x 1200 pixels |
| Supported video modes The video modes that can be displayed by the device. | 1080p |
| Product colour The colour e.g. red, blue, green, black, white. | White |
| Plug and Play Indicates whether this product supports is "plug and play". Plug and play is hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration. |
 |
| Converter type | Passive video converter |
| RoHS compliance The Restriction of Hazardous Substances (RoHS) Directive aims to restrict certain dangerous substances commonly used in electrical and electronic equipment. Any RoHS compliant product is tested for the presence of Lead (Pb), Cadmium (Cd), Mercury (Hg), Hexavalent chromium (Hex-Cr), Polybrominated biphenyls (PBB), and Polybrominated diphenyl ethers (PBDE). PBB and PBDE are flame retardants used in several plastics. For Cadmium and Hexavalent chromium, there must be less than 0.01% of the substance by weight at raw homogeneous materials level. For Lead, PBB, and PBDE, there must be no more than 0.1% of the material, when calculated by weight at raw homogeneous materials. Any RoHS compliant component must have 100 ppm or less of mercury and the mercury must not have been intentionally added to the component. In the EU, some military and medical equipment are exempt from RoHS compliance. |
|
| Certification | CE, FCC, REACH |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 60 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -10 - 70 °C |
| Operating relative humidity (H-H) | 40 - 85% |
| Other features | |
| Material The material from which a thing is or can be made e.g. wood, plastic. | Plastic |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Package width The distance from one side of the packaging to the other. | 200 mm |
| Package depth The distance from the front to the back of the packaging. | 220 mm |
| Package height The distance from the top to the bottom of the packaging. | 15 mm |
| Package weight Weight of the packaged product. | 43 g |
| Package length | 8.66 |
| Weight & dimensions | |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 29 g |
| Width The measurement or extent of something from side to side. | 45 mm |
| Depth The distance from the front to the back of something. | 180 mm |
| Height The measurement of the product from head to foot or from base to top. | 15 mm |
| SKU | 242914 |
| MPN | MDP2DVIW |
| Brand | Startech |
| Product Condition | Brand New/Unused |
| Warranty Period | 3 Years Warranty |
| Warranty Contact | https://www.startech.com/ |
