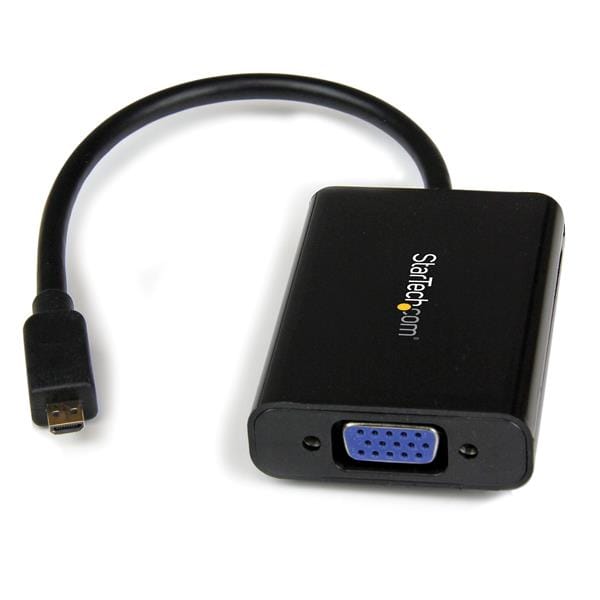

The MCHD2VGAA2 Micro HDMI® to VGA Video Adapter enables you to connect a Smartphone or tablet that outputs content through a Micro HDMI connector to a VGA-capable display device (television, monitor, projector), and also offers discrete 2-channel analog audio output from the Micro HDMI® source. The Micro HDMI to VGA adapter is intended for displaying user generated content such as presentations, documents, and work sheets onto a VGA projector or monitor.
This versatile adapter supports high definition output, including 1080p for HDTV connections, and up to 1920x1200 (WUXGA) for computer VGA monitors.
The MCHD2VGAA2 Micro HDMI® to VGA Video Adapter is backed by 2-year warranty and free lifetime technical support.
| Connector(s) | |
| Connector A | Micro HDMI (19 pin) Male Input |
| Connector B | 3.5 mm Mini-Jack (3 Position) Female Output |
| VGA (15 pin, High Density D-Sub) Female Output | |
| Connector Type(s) | USB Micro-B (5 pin) Female |
| Environmental | |
| Humidity | 40%-85%RH |
| Operating Temperature | 0?C to 60?C (32?F to 140?F) |
| Storage Temperature | -10?C to 70?C (14?F to 158?F) |
| Hardware | |
| Audio | Yes |
| Converter Type | Format Converter |
| Industry Standards | HDMI?, HDCP |
| Packaging Information | |
| Shipping (Package) Weight | 58 g [2 oz] |
| Performance | |
| Audio Specifications | 2 Channel |
| Maximum Analog Resolutions | 1920x1200 |
| Wide Screen Supported | Yes |
| Physical Characteristics | |
| Color | Black |
| Enclosure Type | Plastic |
| Product Height | 15 mm [0.6 in] |
| Product Length | 258 mm [10.2 in] |
| Product Weight | 34 g [1.2 oz] |
| Product Width | 45 mm [1.8 in] |
| What's in the Box | |
| Included in Package | Micro HDMI? to VGA Adapter Converter |
| Video | |
| Maximum video resolution This is the maximum resolution of video images. Resolution is a measure of the degree of detail visible. | 1920 x 1080 pixels |
| Supported video modes The video modes that can be displayed by the device. | 1080p |
| Maximum refresh rate | 60 Hz |
| HDCP High-bandwidth Digital Content Protection (HDCP) is a form of digital copy protection to prevent copying of digital audio and video content as it travels across connections. |
 |
| Audio | |
| Audio output channels An audio output channel is an electric circuit which acts as a path for a signal produced by a device. A device may have several audio output channels. | 2.0 channels |
| Audio support |
|
| Other features | |
| Converter type | Active video converter |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Housing material What the casing of the product is made of. | Plastic |
| Plug and Play Indicates whether this product supports is "plug and play". Plug and play is hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration. |
|
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 1920 x 1080 pixels |
| RoHS compliance The Restriction of Hazardous Substances (RoHS) Directive aims to restrict certain dangerous substances commonly used in electrical and electronic equipment. Any RoHS compliant product is tested for the presence of Lead (Pb), Cadmium (Cd), Mercury (Hg), Hexavalent chromium (Hex-Cr), Polybrominated biphenyls (PBB), and Polybrominated diphenyl ethers (PBDE). PBB and PBDE are flame retardants used in several plastics. For Cadmium and Hexavalent chromium, there must be less than 0.01% of the substance by weight at raw homogeneous materials level. For Lead, PBB, and PBDE, there must be no more than 0.1% of the material, when calculated by weight at raw homogeneous materials. Any RoHS compliant component must have 100 ppm or less of mercury and the mercury must not have been intentionally added to the component. In the EU, some military and medical equipment are exempt from RoHS compliance. |
|
| Certification | REACH, CE, FCC |
| Ports & interfaces | |
| Host interface Interface that enables a host controller to communicate with a driver. | Micro-HDMI |
| Output interface The ports (sockets) where the device is connected via connectors and cables to external devices. | VGA |
| Audio output The type of audio output that the device produces, and the connector(s). | 3.5 mm |
| Power | |
| USB powered The device can be powered via a USB connection. |
|
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 60 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -10 - 70 °C |
| Operating relative humidity (H-H) | 40 - 85% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 45 mm |
| Depth The distance from the front to the back of something. | 258 mm |
| Height The measurement of the product from head to foot or from base to top. | 15 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 39 g |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 80 mm |
| Package depth The distance from the front to the back of the packaging. | 218 mm |
| Package height The distance from the top to the bottom of the packaging. | 20 mm |
| Package weight Weight of the packaged product. | 58 g |
| SKU | 242704 |
| MPN | MCHD2VGAA2 |
| Brand | Startech |
| Product Condition | Brand New/Unused |
| Warranty Period | 3 Years Warranty |
| Warranty Contact | https://www.startech.com/ |
