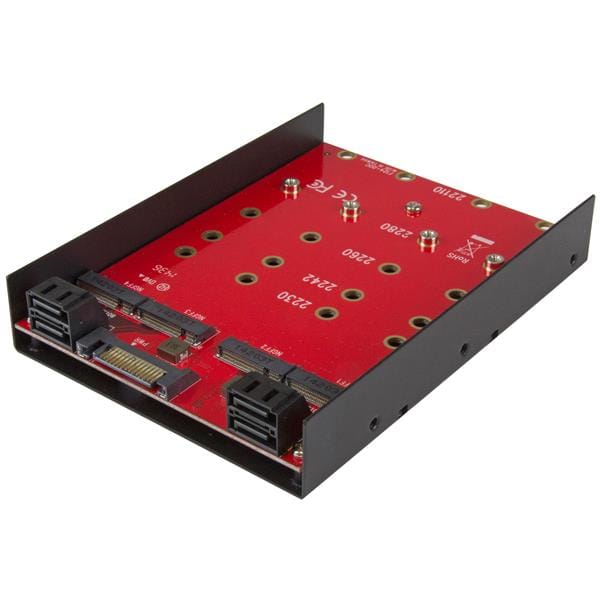

Here’s an easy way to increase the speed, capacity and data security of your desktop computer or server. This four-drive M.2 SATA adapter and mounting bracket lets you add up to four M.2 solid-state drives in the same space as a single 3.5” SATA drive.
Maximize system speed and performance
The M.2 adapter increases overall storage potential by installing four M.2 NGFF (Next Generation Form Factor) SSDs in a standard 3.5” drive bay. Utilize the full potential of your SATA III controller with an M.2 SSD, reducing data transfer bottlenecks and giving you file transfer rates of up to 6Gbps.
Create a powerful software RAID solution
Create a high-performance RAID solution using four M.2 SSDs with your RAID controller to increase the volume capacity of your drive array and add redundancy to protect your data against drive failure. You can combine all four drives together to appear as one, to store larger files such as digital media and access them at faster speeds.
Connect your M.2 drives with ease
The adapter ensures easy and versatile use. It is designed to support a wide range of M.2 NGFF SSDs, including 2230, 2242, 2260, 2280 and 22110 drive sizes. It's also compatible with Windows®, Mac®, and Linux® systems without having to install additional drivers or software.
The 35S24M2NGFF is backed by a StarTech.com 2-year warranty and free lifetime technical support.
| Connector A | SATA Data & Power Combo (7+15 pin) Receptacle |
| Connector(s) | |
| Drive Connectors | M.2 (NGFF, B-Key) Receptacle |
| Host Connectors | SATA (7 pin, Data) Receptacle |
| SATA Power (15 pin) Receptacle | |
| Environmental | |
| Humidity | 20? to 80? |
| Operating Temperature | 5?C to 50?C (41?F to 122?F) |
| Storage Temperature | -25?C to +70?C (-13?F to 158?F) |
| Hardware | |
| Compatible Drive Types | M.2 (NGFF, B-Key) |
| Drive Size | 22m - M.2 NGFF |
| Industry Standards | SATA I/II/III (1.5/3/6Gbps) |
| Interface | SATA |
| Number of Drives | 4 |
| Supported Drive Height(s) | 22110 |
| 2230 | |
| 2242 | |
| 2260 | |
| 2280 | |
| Packaging Information | |
| Shipping (Package) Weight | 0.4 kg [0.9 lb] |
| Performance | |
| Hot Swap Capability | No |
| Maximum Data Transfer Rate | 6Gbps |
| MTBF | 1,920,042 hours |
| RAID | No |
| Type and Rate | SATA III (6 Gbps) |
| Physical Characteristics | |
| Enclosure Type | UL94 - V0 |
| Product Height | 24 mm [0.9 in] |
| Product Length | 139 mm [5.5 in] |
| Product Weight | 226 g [8 oz] |
| Product Width | 100 mm [3.9 in] |
| Software | |
| OS Compatibility | OS independent; No software or drivers required |
| Special Notes / Requirements | |
| System and Cable Requirements | This adapter is only compatible with SATA M.2 drives |
| What's in the Box | |
| Included in Package | 4x M.2 SSD to 3.5in SATA HDD Adapter |
| Installation screw kit | |
| SATA cables | |
| SATA power extension cable | |
| Features | |
| Size (imperial) Physical dimension. | 8.89 cm (3.5") |
| Type Characteristics of the device. | Carrier panel |
| HDD interface The way that a hard disk drive (HDD) is connected to the rest of the computer through a 'bus' such as ATA or SCSI. | M.2,Serial ATA,Serial ATA II,Serial ATA III |
| Hot-swap |
 |
| Data transfer rate Rate at which data can be transferred. Usually expressed in units per second. May vary with network configurations. | 6 Gbit/s |
| RAID support The device uses RAID, which is a storage technology that combines multiple disk drive components into a logical unit for the purposes of data redundancy and performance improvement. Data is distributed across the drives in one of several ways, referred to as RAID levels, depending on the specific level of redundancy and performance required. |
|
| Product colour The colour e.g. red, blue, green, black, white. | Black,Red |
| Mean time between failures (MTBF) Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism. | 1920042 h |
| Certification | CE, FCC, UL94 - V0 |
| RoHS compliance The Restriction of Hazardous Substances (RoHS) Directive aims to restrict certain dangerous substances commonly used in electrical and electronic equipment. Any RoHS compliant product is tested for the presence of Lead (Pb), Cadmium (Cd), Mercury (Hg), Hexavalent chromium (Hex-Cr), Polybrominated biphenyls (PBB), and Polybrominated diphenyl ethers (PBDE). PBB and PBDE are flame retardants used in several plastics. For Cadmium and Hexavalent chromium, there must be less than 0.01% of the substance by weight at raw homogeneous materials level. For Lead, PBB, and PBDE, there must be no more than 0.1% of the material, when calculated by weight at raw homogeneous materials. Any RoHS compliant component must have 100 ppm or less of mercury and the mercury must not have been intentionally added to the component. In the EU, some military and medical equipment are exempt from RoHS compliance. |
 |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 100 mm |
| Depth The distance from the front to the back of something. | 139 mm |
| Height The measurement of the product from head to foot or from base to top. | 24 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 226 g |
| Packaging data | |
| Package weight Weight of the packaged product. | 416 g |
| Packaging content | |
| Cables included | SATA |
| Screws included |
|
| Operational conditions | |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -25 - 70 °C |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 5 - 50 °C |
| Operating relative humidity (H-H) | -25 - 70% |
| SKU | 210413 |
| MPN | 35S24M2NGFF |
| Brand | Startech |
| Product Condition | Brand New/Unused |
| Adapter Type | IDE Adapter |
| Stock Availability | Available for Shipping |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://www.startech.com/ |
