Perform bidirectional cloning between M.2 NVMe and 2.5/3.5" SATA SSDs/HDDs without a computer, using this M.2 NVMe to SATA Drive Duplicator. The standalone sector-by-sector duplication supports SATA III (6Gbps) and works with any file format.

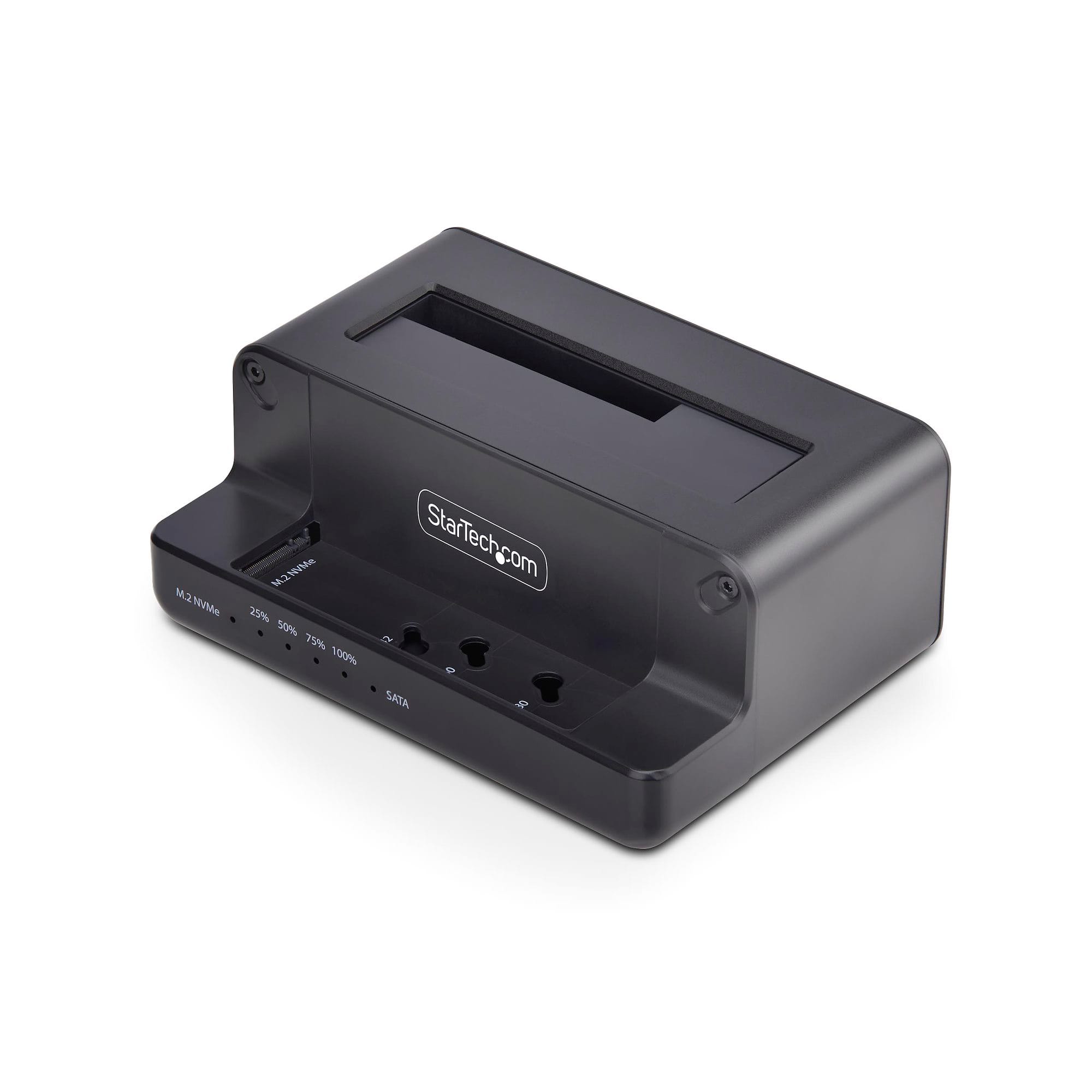

Standalone M.2 NVMe to SATA Cloner Dock
Clone an M.2 NVMe drive to a 2.5"/3.5" SATA SSD/HDD or vice versa. This solution is ideal for hardware upgrades, system imaging, or routine maintenance. The Duplicator Dock supports 2240, 2260, and 2280 M.2 NVMe sizes and fits all standard SATA drives, seamlessly combining both legacy and modern storage solutions.
External Drive Access over USB-C
The USB 3.2 Gen 2 (10Gbps) host connection provides external access to both M.2 NVMe and SATA drives, facilitating data transfer between systems without the need to install the drives internally.
Compact Form Factor
The Standalone M.2 NVMe to 2.5/3.5in SATA Cloner is portable and minimizes desk space usage. It enables instant data backup, and is ideal for IT Professionals when troubleshooting on-site, with the ability to re-image and re-deploy M.2 NVMe and SATA SSDs/HDDs without the need for a dedicated cloning station.
The SSD Cloner Dock features a top-loading design to promote passive airflow for consistent temperatures during peak performance. The Standalone Duplicator supports 4Kn sector size, TRIM, SMART, and UASP. Please note that the target disk must be equal to or larger than the source disk.
| Features | |
| Product type The sub-category of the product. | HDD/SSD duplicator |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Number of simultaneous copies The amount of copies that can be made at the same time. | 1 copies |
| Interface Interface ports to connect pieces of equipment. USB (Universal Serial Bus) has become the most popular wired interface to connect peripherals. USB 2.0 supports speeds up to 480 Mbit/s (USB 1: 12 Mbit/s). The interface FireWire is also known as the IEEE 1394 standard. Enhanced IDE (EIDE)is sometimes referred to as Fast ATA, Fast IDE or ATA-2. | USB 3.2 Gen 2 (3.1 Gen 2) |
| Duplicator operating modes | Copy |
| Transfer rate | 27 GB/min |
| Plug and Play Indicates whether this product supports is "plug and play". Plug and play is hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration. |
 |
| Chipset Set of electronic components in an integrated circuit that manages the data flow between the processor, memory and peripherals. It is usually found in the motherboard of a computer. Chipsets are usually designed to work with a specific family of microprocessors. Because it controls communications between the processor and external devices, the chipset plays a crucial role in determining system performance. | JMS581D |
| Number of fans The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation). | 0 fan(s) |
| LED indicators |
|
| Hard drive | |
| Supported HDD sizes The size of the hard disk drives which can be used by the device. | 2.5,3.5" |
| Supported HDD interfaces The type of interfaces that can be used with the hard disk drive e.g. parallel ATA (PATA), serial ATA (SATA), SCSI. | Serial ATA, Serial ATA II, Serial ATA III |
| SSD support Solid-state drive (SSD), a type of memory, can be used with this product. |
|
| SSD interface The type of interface(s) with which the Solid State Drive is connected to other hardware. | M.2, PCI Express 3.0, PCI Express 3.1 |
| Power | |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 0.1 W |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
| Input current | 1.5 A |
| Output voltage | 12 V |
| Output current | 3 A |
| Power plug type | Type M |
| Included power plug types | ANZ, EU, JP, NA, UK |
| Weight & dimensions | |
| Dimensions (WxDxH) Dimensions of the product (Width x Depth x Height). | 100 x 140 x 55 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 292 g |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 249 mm |
| Package depth The distance from the front to the back of the packaging. | 118 mm |
| Package height The distance from the top to the bottom of the packaging. | 65 mm |
| Package weight Weight of the packaged product. | 600 g |
| Packaging content | |
| Cables included | USB Type-C |
| AC adapter included |
|
| Manual |
|
| Operational conditions | |
| Operating relative humidity (H-H) | 10 - 85% |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 45 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -10 - 70 °C |
| Technical details | |
| Compliance certificates | RoHS, Trade Agreements Act (TAA) |
| Logistics data | |
| Master (outer) case length | 350 mm |
| Master (outer) case width | 510 mm |
| Master (outer) case height | 255 mm |
| Products per master (outer) case | 20 pc(s) |
| SKU | 823204 |
| MPN | N2-M2-SSD-DUPLICATOR |
| Brand | Startech |
