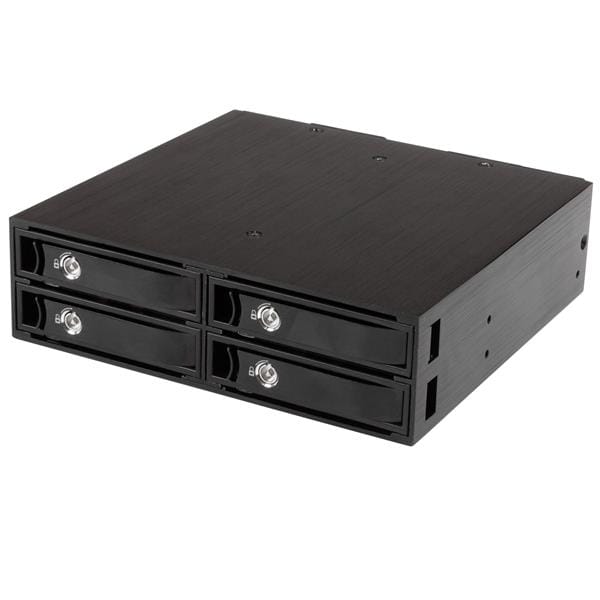

Now it?s easy to drive share and enhance the storage capabilities of your server or PC. This mobile rack backplane lets you install four 2.5in SATA or SAS solid-state or hard disk drives into a single 5.25in bay and quickly hot swap them between systems. It?s ideal for systems integrators and administrators who are looking for flexible management of their data storage.
Designed for durability and trouble-free use
The mobile rack backplane is engineered to protect your valuable data and provide reliable performance. The aluminum housing is designed for enhanced heat dissipation, while two 40mm fans improve air flow to minimize heat build-up and ensure optimum operating temperature.
The backplane can be mounted either vertically or horizontally, for error-free tray insertion and maximum compatibility with servers or desktop computers.You can lock the removable steel trays in place, providing an enhanced level of drive protection. The Non-Scratch SATA (NSS) connector provides a high 50,000+ insertion rating, your assurance of long-lasting performance of both the drives and the bay.
Convenient, interchangeable drive trays
Many fast-paced work environments require drives to be removed regularly. Hot swap between systems quickly, without shutting down, with the convenient backplane.
The included drive trays are interchangeable, working with both the 4-bay backplane and the single-bay backplane (SATSASBP125) so you can hot swap between systems for easy file access.
Compatible with a wide range of drives
Designed for versatile use, the backplane supports an extensive range of both SATA or SAS based HDDs and SSDs, from 5 to 15mm in height.
To maximize the performance of your drives, the mobile rack supports SAS II and SATA III performance for transfer speeds up to 6 Gbps when paired with a compatible controller. The backplane also works with your preferred RAID controller or Hyper Duo™ controller to produce a high-performance or redundant storage solution.
The SATSASBP425 backplane is backed by a StarTech.com 2-year warranty and free lifetime technical support.
| Connector(s) | |
| Drive Connectors | SATA Data & Power Combo (7+15 pin) Receptacle |
| Host Connectors | SATA (7 pin, Data) Receptacle |
| Other Interface(s) | LP4 (4 pin, Molex Large Drive Power) Female |
| Environmental | |
| Humidity | 5%~65% RH |
| Operating Temperature | 0?C to 55?C (23?F to 95?F) |
| Storage Temperature | -20?C to 55?C (-4?F to 131?F) |
| Hardware | |
| Compatible Drive Types | SAS & SATA |
| Drive Installation | Removable |
| Drive Size | 2.5in |
| Fan Bearing Type | Sleeve Bearing |
| Fan(s) | Yes |
| Fans | 40 mm |
| Interface | SAS |
| SATA | |
| Key Lock | Yes |
| Number of 2.5 inch bays | 4 |
| Number of Drives | 4 |
| Supported Drive Height(s) | 12.5mm |
| 15mm | |
| 5mm | |
| 9.5mm | |
| Indicators | |
| LED Indicators | Drive power and activity LED |
| Fan activity | |
| Packaging Information | |
| Shipping (Package) Weight | 1042 g [36.8 oz] |
| Performance | |
| Hot Swap Capability | Yes |
| Insertion Rating | 50,000 |
| Max Drive Capacity | Tested with hard drives up to 2TB at 7200 RPM |
| Maximum Data Transfer Rate | 6 Gbps |
| MTBF | 30,000 |
| Noise Level | 20 dBA |
| Port Multiplier | No |
| Type and Rate | SATA III (6 Gbps) |
| Physical Characteristics | |
| Color | Black |
| Enclosure Type | Aluminum and Steel |
| Max Drive Height | 15 mm [0.6 in] |
| Product Height | 42 mm [1.7 in] |
| Product Length | 151.5 mm [6 in] |
| Product Weight | 760 g [26.8 oz] |
| Product Width | 146 mm [5.7 in] |
| Software | |
| OS Compatibility | OS independent; No software or drivers required |
| Special Notes / Requirements | |
| Note | Flammability rating: UL94 - V0 |
| What's in the Box | |
| Included in Package | 18" SATA data cables |
| 2.5" drive trays | |
| 4-bay SATA/SAS hard drive backplane | |
| backplane mounting screws | |
| drive mounting screws | |
| drive tray keys | |
| quick start guide | |
| SATA to Molex power adapters | |
| Features | |
| Size (imperial) Physical dimension. | 13.3 cm (5.25") |
| Type Characteristics of the device. | Storage drive tray |
| Number of HDDs supported The total number of hard drives that can be used in/with this product. | 4 |
| HDD size The amount of data that the hard drive can store. | 2.5" |
| Maximum HDD capacity | 2000 GB |
| HDD interface The way that a hard disk drive (HDD) is connected to the rest of the computer through a 'bus' such as ATA or SCSI. | Serial ATA,Serial ATA II,Serial ATA III,Serial Attached SCSI (SAS) |
| Supported storage drive heights | 5,9.5,12.5,15 mm |
| Hot-swap |
 |
| Noise level The amplitude level of the undesired background noise, usually measured in decibels (db). | 20 dB |
| Number of fans The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation). | 2 fan(s) |
| Fan diameter The size of the fan, measured by the distance from one side of the fan to the other, via a straight line going through the middle of the fan. | 4 cm |
| Data transfer rate Rate at which data can be transferred. Usually expressed in units per second. May vary with network configurations. | 6 Gbit/s |
| LED indicators | Activity,Power |
| Key lock |
|
| Bearing type | Sleeve bearing |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Material The material from which a thing is or can be made e.g. wood, plastic. | Aluminum, Steel |
| Certification | CE, FCC |
| RoHS compliance The Restriction of Hazardous Substances (RoHS) Directive aims to restrict certain dangerous substances commonly used in electrical and electronic equipment. Any RoHS compliant product is tested for the presence of Lead (Pb), Cadmium (Cd), Mercury (Hg), Hexavalent chromium (Hex-Cr), Polybrominated biphenyls (PBB), and Polybrominated diphenyl ethers (PBDE). PBB and PBDE are flame retardants used in several plastics. For Cadmium and Hexavalent chromium, there must be less than 0.01% of the substance by weight at raw homogeneous materials level. For Lead, PBB, and PBDE, there must be no more than 0.1% of the material, when calculated by weight at raw homogeneous materials. Any RoHS compliant component must have 100 ppm or less of mercury and the mercury must not have been intentionally added to the component. In the EU, some military and medical equipment are exempt from RoHS compliance. |
|
| Ports & interfaces | |
| Port multiplier |
 |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 146 mm |
| Depth The distance from the front to the back of something. | 152 mm |
| Height The measurement of the product from head to foot or from base to top. | 42 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 760 g |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 194 mm |
| Package depth The distance from the front to the back of the packaging. | 216 mm |
| Package height The distance from the top to the bottom of the packaging. | 80 mm |
| Package weight Weight of the packaged product. | 1.04 kg |
| Packaging content | |
| Cables included | SATA |
| Screws included |
|
| Number of lock keys included | 2 pc(s) |
| Number of screws | 24 |
| Operational conditions | |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 55 °C |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 55 °C |
| Operating relative humidity (H-H) | 5 - 65% |
| SKU | 245042 |
| MPN | SATSASBP425 |
| Brand | Startech |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Warranty Period | 2 Years Warranty |
