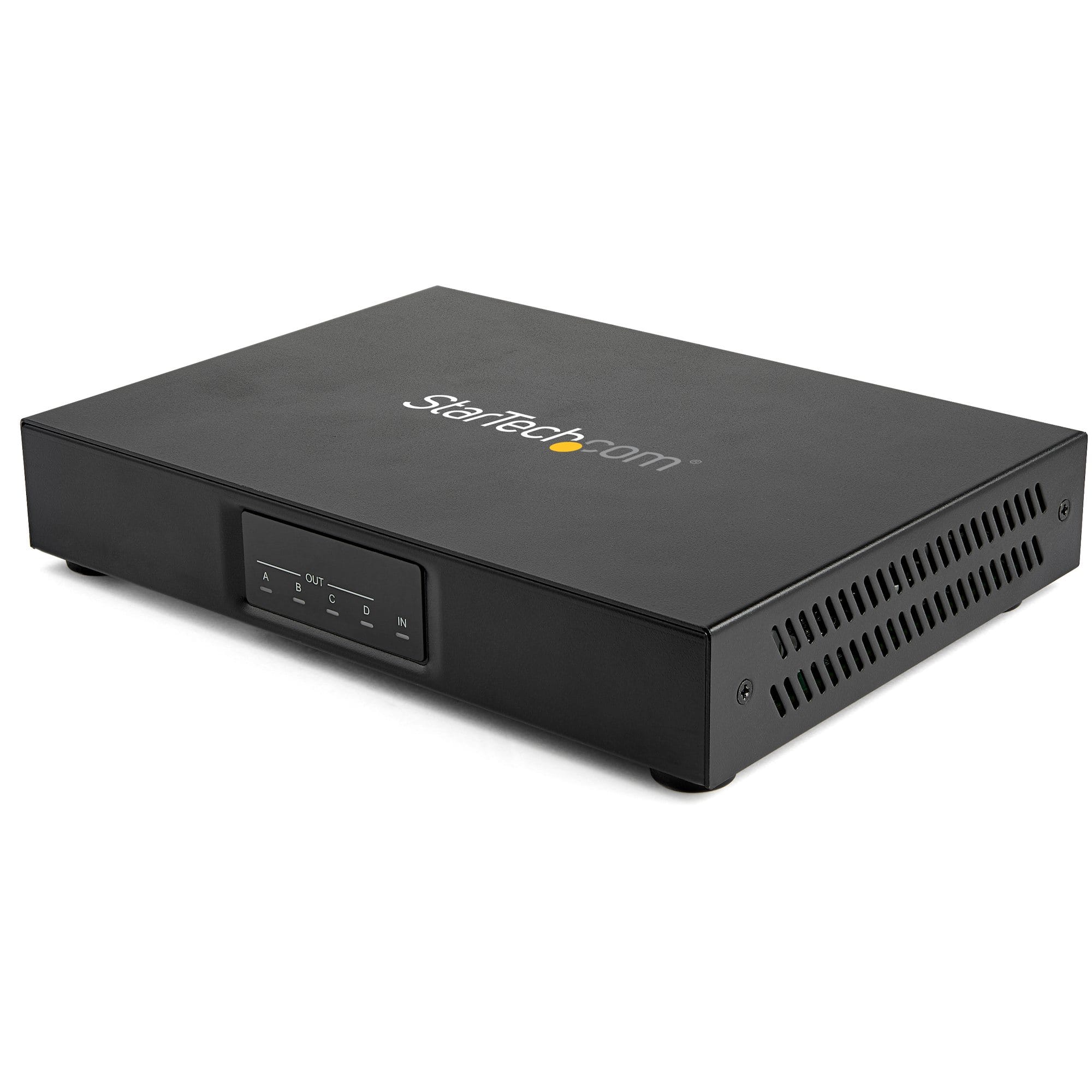

This video wall controller lets you connect your HDMI video source to multiple HDMI displays, with support for Ultra HD resolutions and 7.1 surround sound audio. You can use the controller as a video splitter to distribute the same HDMI signal to four displays or you can combine your video source across four displays to create a 2x2 video wall.
Supports True 4K at 60Hz
Not all 2x2 video wall matrix controllers are created equal. While some HDMI 1.4 video wall controllers can achieve 4K resolutions, they'll only work at a 30Hz refresh rate. This 4K 60Hz HDMI video wall processor offers full support for HDMI 2.0, including true 4K resolution at 60Hz.
Widely Compatible
The HDMI video wall splitter supports HDCP 2.2 and is backward compatible with 4K 30Hz and 1080p displays. This ensures that it will work with lower resolution displays such as TVs around your site or in your digital signage application.
Easy Installation and Setup
For hassle-free setup, the 4K HDMI splitter offers easy plug-and-play installation. Simply connect your source and 4 displays and the 4k video wall splitter will automatically create a video wall at the appropriate resolution.
The Choice of IT Pros Since 1985
StarTech.com conducts thorough compatibility and performance testing on all our products to ensure we are meeting or exceeding industry standards and providing high-quality products to IT Professionals. Our local StarTech.com Technical Advisors have broad product expertise and work directly with our StarTech.com Engineers to provide support for our customers both pre and post-sales.
The ST124HDVW is backed by a 2-year StarTech.com warranty and free lifetime technical support.
| Ports & interfaces | |
| Video port type The type of socket in the device for connecting a video e.g. SCART. | HDMI |
| HDMI version | 2.0 |
| HDMI in Port (socket) for HDMI input. | 1 |
| Number of HDMI outputs Port (socket) for HDMI output. | 4 |
| USB port type | USB Type-A |
| RJ-45 input ports | 1 |
| RS-232 ports The number of sockets (ports) for RS-232. An RS-232 serial port was once a standard feature of a personal computer, used for connections to modems, printers, mice, data storage, uninterruptible power supplies, and other peripheral devices. Now it has been largely replaced by USB and other ports. | 1 |
| DC-in jack The socket/plug where the DC electricity supply connects to the device. |
 |
| Features | |
| Material The material from which a thing is or can be made e.g. wood, plastic. | Metal |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Extended display identification data (EDID) |
|
| HDCP High-bandwidth Digital Content Protection (HDCP) is a form of digital copy protection to prevent copying of digital audio and video content as it travels across connections. |
|
| Maximum refresh rate | 60 Hz |
| Supported graphics resolutions The graphic resolutions that can be displayed by the device. The graphic resolution describes the width and height dimensions of a display, such as a computer monitor, measured in pixels. | 4096 x 2160 |
| LED indicators |
|
| Audio output channels An audio output channel is an electric circuit which acts as a path for a signal produced by a device. A device may have several audio output channels. | 7.1 channels |
| HDCP version | 2.2 |
| Power | |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
| AC adapter input current | 1 A |
| AC adapter output voltage | 24 V |
| AC adapter output current | 1.25 A |
| Certificates | |
| Certification | CE, FCC, REACH |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 165 mm |
| Depth The distance from the front to the back of something. | 230 mm |
| Height The measurement of the product from head to foot or from base to top. | 45 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 1 kg |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 260 mm |
| Package depth The distance from the front to the back of the packaging. | 300 mm |
| Package height The distance from the top to the bottom of the packaging. | 70 mm |
| Package weight Weight of the packaged product. | 1.6 kg |
| Packaging content | |
| Manual |
|
| AC adapter included |
|
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 90% |
| Technical details | |
| Compliance certificates | RoHS |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Master (outer) case width | 315 mm |
| Master (outer) case length | 545 mm |
| Master (outer) case height | 380 mm |
| Products per master (outer) case | 10 pc(s) |
| SKU | 818838 |
| MPN | ST124HDVW |
| Brand | Startech |
| Product Condition | Brand New/Unused |
| Product Use | General |
