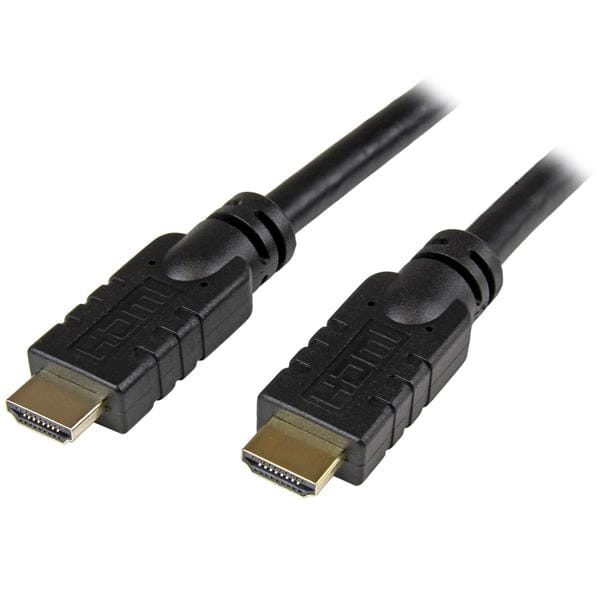

This active HDMI® cable offers a connection distance of up to 65 feet (20 meters) between your HDMI enabled devices. It meets CL2 rating safety requirements, so it?s ideal for in-wall cable runs in your home and office installations.
Dependable connections over longer distances
The cable features built-in amplifier circuitry which actively boosts your HDMI signal, with no external power required. It's the perfect solution for longer transmissions without any signal loss.
Run in-wall cable installations
The HDMI cable is CL2 rated for in-wall installations, which makes them perfect for A/V installations in residential or office settings. You can set up your home theatre, gaming or audio-video equipment with the cables hidden away safely inside the walls and place your devices as needed throughout your work or living space.
Deliver astonishing 4k video
This high-quality HDMI cable fully supports 1080p+ resolutions at up to 120Hz refresh rate, with life-like color. To accommodate the demands of future high-definition devices, such as increased resolutions and higher frame rates, this Ultra HD cable supports resolutions up to 4k x 2k.
The HDMM20MA is backed by StarTech.com's 2-year Warranty for guaranteed reliability.
Note: This cable features unidirectional architecture which requires that the cable is installed in the correct direction. Please refer to the Source and Display labels on the HDMI connectors in order to ensure that the device and the HDMI source are connected properly.
| Connector(s) | |
| Connector A | HDMI (19 pin) Male |
| Connector B | HDMI (19 pin) Male |
| Hardware | |
| Cable Jacket Type | PVC - Polyvinyl Chloride |
| Cable Shield Type | Aluminum-Mylar Foil with Braid |
| Chipset ID | Redmere |
| Connector Plating | Gold |
| Fire Rating | CL2 Rated |
| Packaging Information | |
| Package Quantity | 1 |
| Shipping (Package) Weight | 1.7 kg [3.8 lb] |
| Performance | |
| Maximum Digital Resolutions | 4K x 2K @ 30 Hz |
| Physical Characteristics | |
| Cable Length | 20 m [65.6 ft] |
| Color | Black |
| Connector Style | Straight |
| Product Length | 20 m [65.6 ft] |
| Product Weight | 1.3 kg [2.9 lb] |
| Wire Gauge | 28 AWG |
| What's in the Box | |
| Included in Package | 20m Active CL2 In-Wall High Speed HDMI? Cable - HDMI - M/M |
| Features | |
| Cable length How long the cable is. | 20 m |
| Connector 1 This is the first connector in the device. | HDMI Type A (Standard) |
| Connector 2 This is the second connector in the device. | HDMI Type A (Standard) |
| Connector 1 gender The gender of the first connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the part bearing one or which fits into another being called male. | Male |
| Connector 2 gender The gender of the second connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the indented one or the one fitting around the other being called female. | Male |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 4096 x 2160 pixels |
| AWG wire size | 28 |
| Connector contacts plating What the connector contacts are covered with (layer on top). | Gold |
| Cable jacket material | Polyvinyl chloride (PVC) |
| Cable shielding The protective layer for the cable, typically made of plastic. | Aluminum mylar foil |
| Plug and Play Indicates whether this product supports is "plug and play". Plug and play is hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration. |
 |
| RoHS compliance The Restriction of Hazardous Substances (RoHS) Directive aims to restrict certain dangerous substances commonly used in electrical and electronic equipment. Any RoHS compliant product is tested for the presence of Lead (Pb), Cadmium (Cd), Mercury (Hg), Hexavalent chromium (Hex-Cr), Polybrominated biphenyls (PBB), and Polybrominated diphenyl ethers (PBDE). PBB and PBDE are flame retardants used in several plastics. For Cadmium and Hexavalent chromium, there must be less than 0.01% of the substance by weight at raw homogeneous materials level. For Lead, PBB, and PBDE, there must be no more than 0.1% of the material, when calculated by weight at raw homogeneous materials. Any RoHS compliant component must have 100 ppm or less of mercury and the mercury must not have been intentionally added to the component. In the EU, some military and medical equipment are exempt from RoHS compliance. |
|
| Certification | CE, FCC |
| Quantity per pack | 1 pc(s) |
| Weight & dimensions | |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 1.3 kg |
| Package width The distance from one side of the packaging to the other. | 326 mm |
| Package depth The distance from the front to the back of the packaging. | 338 mm |
| Package height The distance from the top to the bottom of the packaging. | 82 mm |
| Package weight Weight of the packaged product. | 1.72 kg |
| SKU | 242053 |
| MPN | HDMM20MA |
| Brand | Startech |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://www.startech.com/ |
