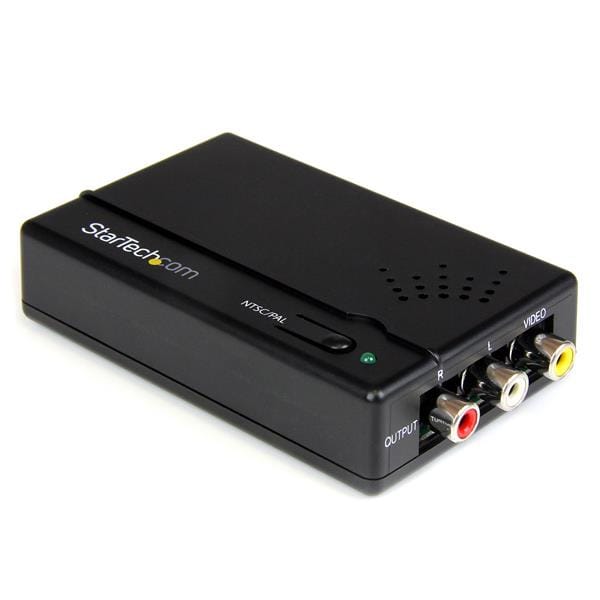

The HD2VID HDMI® to Composite Video Converter (with Audio) converts a digital HDMI video source (with supporting audio) to work with analog Composite video televisions and displays in both NTSC and PAL systems.
The HDMI to Composite converter provides features that ensure the highest quality output image, such as noise reduction, frame rate conversion and adaptive contrast enhancement, while an easy to use On-Screen Display(OSD) allows you to monitor your display status. Support for a wide range of HDTV and PC input resolutions make this versatile HDMI converter a perfect solution for using newer devices with existing legacy displays.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
| Connector(s) | |
| Connector A | HDMI (19 pin) Female Input |
| Connector B | Composite Video (1 x RCA) Female Output |
| Stereo Audio (2 x RCA) Female Output | |
| Environmental | |
| Humidity | 20~90% RH |
| Operating Temperature | 0C to 40C (32F to 104F) |
| Storage Temperature | -20C to 60C (-4F to 140F) |
| Hardware | |
| Audio | Yes |
| Converter Type | Scaler |
| Industry Standards | Standard HDMI, DVI 1.0 |
| Packaging Information | |
| Shipping (Package) Weight | 0.3 kg [0.7 lb] |
| Performance | |
| Audio Specifications | Input - LPCM 2Ch, 48kHz Output - Stereo L/R |
| Supported Resolutions | Input TV - 720p, 576p, 480p @ 60Hz PC - 1280x800, 1280x768, 1224x768, 800x600, 640x480 @ 60Hz Output 480i, 576p |
| Physical Characteristics | |
| Color | White |
| Enclosure Type | Plastic |
| Product Height | 26 mm [1 in] |
| Product Length | 100 mm [3.9 in] |
| Product Weight | 90 g [3.2 oz] |
| Product Width | 64 mm [2.5 in] |
| Power | |
| Center Tip Polarity | Positive |
| Input Current | 0.3 A |
| Input Voltage | 110V-240V AC |
| Output Current | 1A |
| Output Voltage | 5 DC |
| Plug Type | M |
| Power Consumption (In Watts) | 3 |
| Power Source | AC Adapter Included |
| What's in the Box | |
| Included in Package | HDMI to Composite Converter |
| Instruction Manual | |
| Universal Power Adapter (NA/UK/EU/AU) | |
| Video | |
| Maximum video resolution This is the maximum resolution of video images. Resolution is a measure of the degree of detail visible. | 1280 x 800 pixels |
| Analog signal format system The supported protocols for exchanging analog signals. | NTSC,PAL |
| Other features | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Dimensions (WxDxH) Dimensions of the product (Width x Depth x Height). | 63 x 110 x 55 mm |
| Supported resolutions | 1280 x 800, 1280 x 768, 1224 x 768, 800 x 600, 640 x 480 |
| Package length | 5.91 |
| Ports & interfaces | |
| Host interface Interface that enables a host controller to communicate with a driver. | HDMI |
| Output interface The ports (sockets) where the device is connected via connectors and cables to external devices. | Composite |
| Power | |
| External power adapter |
 |
| Input voltage The voltage (V) which is required to power the product. | 100 - 240 V |
| Operating voltage Defines the range of operating voltages available | 5 V |
| Operating current | 1 A |
| Weight & dimensions | |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 90 g |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 152 mm |
| Package depth The distance from the front to the back of the packaging. | 123 mm |
| Package height The distance from the top to the bottom of the packaging. | 57 mm |
| Package weight Weight of the packaged product. | 321 g |
| SKU | 241696 |
| MPN | HD2VID |
| Brand | Startech |
| Product Condition | Brand New/Unused |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://www.startech.com/ |
