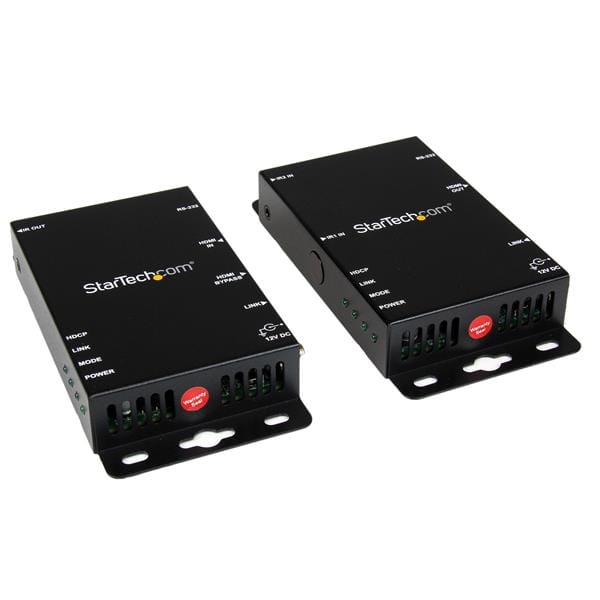

The StarTech.com HDBaseT extender kit, extends HDMI up to 330 feet (100 Meters) over a single CAT5e or CAT6 cable. The extender supports Ultra HD and Full HD resolutions (4K / 1080p) with support for 3D and the accompanying 7.1 digital audio. For added versatility the transmitter and receiver can be used to transmit IR and RS232 serial communication over the same cable. The versatility of this video extender makes it an ideal solution for digital signage applications.
What is HDBaseT
HDBaseT is a standardized, zero latency, video distribution technology thats revolutionizing HDMI distribution. HDBaseT uses an advanced method of modulation that enables you to distribute uncompressed HDMI audio and video along with additional signals such as 100BaseT Ethernet, IR, RS-232 serial and power over cable.
Extend More with HDBaseT
The extender offers HDBaseT technology with HDMI, IR, and RS232 control in a single CAT 5 extender kit, for complete end-to-end control. Offering greater versatility than traditional HDMI extenders or HDMI cabling alone HDBaseT is the clear choice for every integrator and system designer. The IR extension enables you operate your display and an IR-enabled source device, such as a Blu-ray player or TV Set top box, from either end of your extension. While RS232 control let you to connect a serial I/O device at your display - an ideal solution for adding a serial touch screen interface to your remote display.
Astonishing Picture Quality from an Impressive Distance
With the A/V industry quickly adopting 4K as the new high-resolution video standard, long range video distribution can be a challenge with standard HDMI cables beginning signal degradation at 30 feet.
With support for 4K youll be amazed at how HDBaseT maintains your Ultra HD picture quality, four times the resolution of high-definition 1080p, even at 330 feet away from your video source. Plus, because the extender is still backward compatible with High-Definition 1080p displays and video sources, you can rest assured this extender will make your video source look great in any remote digital signage application.
Simplify Your Setup
This extender has been specially crafted for a smooth, tidy installation. HDBaseT technology allows for single cable installation, for seamless integration using existing CAT5e or CAT6 infrastructure, avoiding the hassle of running multiple cables, while reducing potential failure points. Mounting hardware is also built-in to both the extender and receiver for discrete, professional mounting.
The ST121UTPHD2 is backed by a 2-year StarTech.com warranty and free lifetime technical support.
| Connector(s) | |
| Local Unit Connectors | DB-9 (9 pin, D-Sub) Female |
| HDMI (19 pin) Female | |
| IrDA (Infrared, SIR/FIR) | |
| RJ-45 Female | |
| Remote Unit Connectors | DB-9 (9 pin, D-Sub) Male |
| HDMI (19 pin) Female | |
| IrDA (Infrared, SIR/FIR) | |
| RJ-45 Female | |
| Environmental | |
| Humidity | 0-95% |
| Operating Temperature | 0C to 70C (32F to 158F) |
| Storage Temperature | -20C to 85C (-4F to 185F) |
| Hardware | |
| Audio | Yes |
| Cabling | Cat 5 UTP or better |
| Daisy-Chain | No |
| Industry Standards | High Speed HDMI and HDCP compliant |
| Ports | 1 |
| Indicators | |
| LED Indicators | HDCP (Green) |
| Mode (Green) | |
| Power (Green) | |
| RJ45 Link (Green) | |
| Packaging Information | |
| Shipping (Package) Weight | 1500 g [52.9 oz] |
| Performance | |
| Audio Specifications | Supports Dolby TrueHD, DTS-HD MA |
| IR Interface | IR Interface: Bi-directional 38Khz / 10 / 5M |
| Max Distance | 100 m / 330 ft |
| Maximum Data Transfer Rate | HDMI - 3.4Gbps RS232 - 115200bps baud |
| Maximum Digital Resolutions | 4K |
| Supported Resolutions | 3840x2160 (4K) 2560x1600 1920x1200 1920x1080 (1080p) 1280x720 (720p) |
| Wide Screen Supported | Yes |
| Physical Characteristics | |
| Color | Black |
| Enclosure Type | Steel |
| Product Height | 25 mm [1 in] |
| Product Length | 150 mm [5.9 in] |
| Product Weight | 305 g [10.8 oz] |
| Product Width | 80 mm [3.1 in] |
| Power | |
| Center Tip Polarity | Positive |
| Input Current | 0.6 |
| Input Voltage | 110V-240V AC |
| Output Current | 1.24A |
| Output Voltage | 12 DC |
| Plug Type | M |
| Power Consumption (In Watts) | 12 |
| Power Source | 2 AC Adapters Included |
| Software | |
| OS Compatibility | OS Independent |
| Special Notes / Requirements | |
| System and Cable Requirements | 1X Standard CAT5 cable 1X HDMI Cable for Remote Unit (Local Cable Included) |
| What's in the Box | |
| Included in Package | HDMI Cable - 4 ft (1.2 Meters) |
| IR Receiver Cable | |
| IR Transmitter Cable | |
| Local HDMI Extender Unit | |
| Remote HDMI Receiver Unit | |
| Universal Power Adapter NA / UK / EU | |
| User Manual | |
| Features | |
| Type Characteristics of the device. | AV transmitter & receiver |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 3840 x 2160 pixels |
| Cable types supported | Cat5,Cat5e,Cat6 |
| Maximum transfer distance The greatest distance over which the data/signal can be transferred. | 100 m |
| LED indicators | LAN,Power |
| Supported video modes The video modes that can be displayed by the device. | 720p,1080p,2160p |
| Supported graphics resolutions The graphic resolutions that can be displayed by the device. The graphic resolution describes the width and height dimensions of a display, such as a computer monitor, measured in pixels. | 1280 x 720 (HD 720),1920 x 1080 (HD 1080),1920 x 1200 (WUXGA),2560 x 1600 (WQXGA) |
| Remote control type | IR |
| HDCP High-bandwidth Digital Content Protection (HDCP) is a form of digital copy protection to prevent copying of digital audio and video content as it travels across connections. |
 |
| Material The material from which a thing is or can be made e.g. wood, plastic. | Steel |
| Carrier frequency | 38 kHz |
| Baud rate | 115.2 Kbit/s |
| Plug and Play Indicates whether this product supports is "plug and play". Plug and play is hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration. |
|
| Daisy chain |
 |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| RoHS compliance The Restriction of Hazardous Substances (RoHS) Directive aims to restrict certain dangerous substances commonly used in electrical and electronic equipment. Any RoHS compliant product is tested for the presence of Lead (Pb), Cadmium (Cd), Mercury (Hg), Hexavalent chromium (Hex-Cr), Polybrominated biphenyls (PBB), and Polybrominated diphenyl ethers (PBDE). PBB and PBDE are flame retardants used in several plastics. For Cadmium and Hexavalent chromium, there must be less than 0.01% of the substance by weight at raw homogeneous materials level. For Lead, PBB, and PBDE, there must be no more than 0.1% of the material, when calculated by weight at raw homogeneous materials. Any RoHS compliant component must have 100 ppm or less of mercury and the mercury must not have been intentionally added to the component. In the EU, some military and medical equipment are exempt from RoHS compliance. |
|
| Certification | CE, FCC |
| Ports & interfaces | |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| HDMI in Port (socket) for HDMI input. | 1 |
| Number of HDMI outputs Port (socket) for HDMI output. | 2 |
| RS-232 input ports | 1 |
| RS-232 output ports | 1 |
| Remote (IR) input | 2 |
| Remote (IR) output | 1 |
| DC-in jack The socket/plug where the DC electricity supply connects to the device. |
|
| Power | |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 110-240 V |
| Operating voltage Defines the range of operating voltages available | 12 V |
| Input current | 0.6 A |
| Output current | 1.24 A |
| External power adapter |
|
| Current | 1.24 A |
| Power plug type | Type M |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 70 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 85 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Weight & dimensions | |
| Receiver dimensions (W x D x H) | 80 x 150 x 25 mm |
| Receiver weight | 305 g |
| Transmitter dimensions (WxDxH) | 80 x 150 x 25 mm |
| Transmitter weight | 305 g |
| Packaging data | |
| Package dimensions (WxDxH) Dimensions of the packaged product (Width x Depth x Height). | 248 x 304 x 66 mm |
| Package width The distance from one side of the packaging to the other. | 309 mm |
| Package depth The distance from the front to the back of the packaging. | 254 mm |
| Package height The distance from the top to the bottom of the packaging. | 67 mm |
| Package length | 11.97 |
| Package weight Weight of the packaged product. | 1.53 kg |
| Packaging content | |
| AC adapter included |
|
| Cables included | HDMI,IR |
| Manual |
|
| IR receiver included |
|
| Technical details | |
| Audio support |
|
| SKU | 245637 |
| MPN | ST121UTPHD2 |
| Brand | Startech |
| Product Condition | Brand New/Unused |
