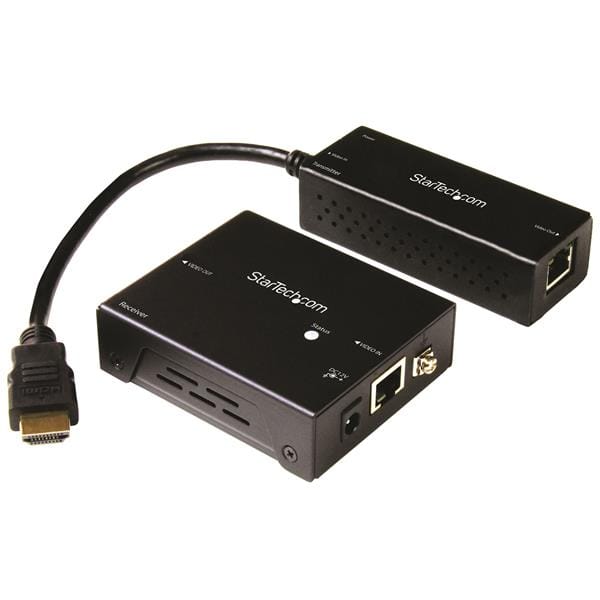

This compact extender kit uses HDBaseT™ technology to extend your HDMI® signal up to 230 feet (70 meters), over a single CAT5e or CAT6 cable. The extender supports Ultra HD and Full HD video resolutions (4K and 1080p), with support for the accompanying digital 7.1 audio.
Easy and discreet installation
For a simple and tidy installation, the transmitter in this HDBaseT extender kit features a small footprint and a built-in HDMI cable that connects directly to your video source, reducing clutter by eliminating the need for a local HDMI cable.
You can power the transmitter using a USB port on your source device, which makes it easier to install in areas where power outlets may be limited. Mounting hardware is also included for the receiver ensuring a discreet, professional installation. The simplicity and versatility of this compact transmitter make it a convenient solution for transmitting an HDBaseT signal to a boardroom or classroom projector, enabling presenters in your office to quickly connect their laptop computer and share presentations or data sheets.
The simplicity and versatility of this video extender make it the ideal solution for digital signage applications in large buildings such as shopping centers, stadiums, schools, and hospitals.
Seamless integration with your existing infrastructure
The kit extends HDMI and 7.1 surround sound over a single cable, unlike some HDMI extenders that require two cables and only offer minimal audio support. Extending HDMI with one cable reduces potential failure points and also lowers your cabling costs. Plus, because the HDBaseT extender kit uses standard CAT5e, CAT6 or CAT7 cables, it works with existing Ethernet infrastructure that's already built into large commercial buildings such shopping centers, stadiums, schools, and hospitals, making it the perfect solution for deploying digital signage.
Astonishing 4K picture quality from an impressive distance
With high-quality HDMI cables beginning signal degradation at 30 feet, it can be difficult to maintain the brilliance of 4K video even at shorter distances. But with HDBaseT you?ll be amazed at how your Ultra HD picture, four times the resolution of high-definition 1080p, is just as brilliant, even at distances up to 130 feet from your video source.
Even if you're not running 4K, HDBaseT supports High-Definition 1080p and lower resolutions at even greater distances, up to 230 feet from your source, giving you piece of mind to know that this extender will comfortably work with any HDMI video source and display.
What is HDBaseT?
HDBaseT is a standardized, zero-latency, video distribution technology that?s revolutionizing HDMI distribution. HDBaseT uses an advanced method of modulation that enables you to distribute uncompressed HDMI audio and video along with additional signals, over a single Ethernet cable. Offering greater versatility than traditional HDMI extenders and longer distances than HDMI cables alone, HDBaseT is the clear choice for every integrator and system designer, because it can do so much, with just a single cable.
The ST121HDBTDK is backed by a StarTech.com 2-year warranty and free lifetime technical support.
| Connector A | HDMI (19 pin) Female Input |
| RJ-45 Female Output | |
| Connector B | HDMI (19 pin) Female Output |
| RJ-45 Female Input | |
| Output Signal | HDMI |
| Connector(s) | |
| Local Unit Connectors | HDMI (19 pin) Female Latching Input |
| RJ-45 Female Output | |
| Remote Unit Connectors | HDMI (19 pin) Female Output |
| RJ-45 Female Input | |
| Environmental | |
| Humidity | 0% - 80 % RH (non-condensing) |
| Operating Temperature | 0?C to 40?C (32?F to 104?F) |
| Storage Temperature | -10?C to 60?C (14?F to 140?F) |
| Hardware | |
| Audio | Yes |
| Cabling | Cat 5e UTP or better |
| Daisy-Chain | No |
| Ports | 1 |
| Rack-Mountable | Yes |
| Indicators | |
| LED Indicators | Status LED (receiver) |
| Packaging Information | |
| Shipping (Package) Weight | 1600 g [56.5 oz] |
| Performance | |
| Audio Specifications | 7.1 Surround Sound |
| Max Distance | 70 m / 230 ft |
| Maximum Cable Length | 0.1 m [0.2 ft] |
| Maximum Digital Resolutions | 4096 x 2160 (4K) @ 30 Hz |
| Wide Screen Supported | Yes |
| Physical Characteristics | |
| Product Height | 25 mm [1 in] |
| Product Length | 80 mm [3.1 in] |
| Product Weight | 252 g [8.9 oz] |
| Product Width | 68 mm [2.7 in] |
| Power | |
| Center Tip Polarity | Positive |
| Input Current | 0.6 A |
| Input Voltage | 100 ~ 240 AC |
| Output Current | 1.5 A |
| Output Voltage | 12 DC |
| Plug Type | M |
| Power Consumption (In Watts) | 18 |
| Power Source | AC Adapter Included |
| What's in the Box | |
| Included in Package | footpad set (receiver) |
| HDBaseT receiver | |
| HDBaseT transmitter | |
| mounting kit (receiver) | |
| quick start guide | |
| screw kit for mounting | |
| universal power adapter (receiver) (NA, EU, UK, ANZ) | |
| USB power cable (transmitter) (1310mm) | |
| Features | |
| Type Characteristics of the device. | AV transmitter & receiver |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 4096 x 2160 pixels |
| Cable types supported | Cat5e,Cat6 |
| Maximum transfer distance The greatest distance over which the data/signal can be transferred. | 70 m |
| Audio system System used to play music or speech. | Multichannel |
| Audio output channels An audio output channel is an electric circuit which acts as a path for a signal produced by a device. A device may have several audio output channels. | 7.1 channels |
| LED indicators | Status |
| Cable length How long the cable is. | 0.1 m |
| Rack mounting The type of mounting that can position devices in a shelving system (rack). |
 |
| Plug and Play Indicates whether this product supports is "plug and play". Plug and play is hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration. |
|
| Daisy chain |
 |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| HDBaseT certified |
|
| RoHS compliance The Restriction of Hazardous Substances (RoHS) Directive aims to restrict certain dangerous substances commonly used in electrical and electronic equipment. Any RoHS compliant product is tested for the presence of Lead (Pb), Cadmium (Cd), Mercury (Hg), Hexavalent chromium (Hex-Cr), Polybrominated biphenyls (PBB), and Polybrominated diphenyl ethers (PBDE). PBB and PBDE are flame retardants used in several plastics. For Cadmium and Hexavalent chromium, there must be less than 0.01% of the substance by weight at raw homogeneous materials level. For Lead, PBB, and PBDE, there must be no more than 0.1% of the material, when calculated by weight at raw homogeneous materials. Any RoHS compliant component must have 100 ppm or less of mercury and the mercury must not have been intentionally added to the component. In the EU, some military and medical equipment are exempt from RoHS compliance. |
|
| Certification | CE, FCC, TAA, REACH |
| Ports & interfaces | |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| HDMI in Port (socket) for HDMI input. | 1 |
| Number of HDMI outputs Port (socket) for HDMI output. | 1 |
| Power | |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100-240 V |
| Operating voltage Defines the range of operating voltages available | 12 V |
| Input current | 0.6 A |
| Output current | 1.5 A |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 18 W |
| External power adapter |
|
| Power plug type | Type M |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -10 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 68 mm |
| Depth The distance from the front to the back of something. | 80 mm |
| Height The measurement of the product from head to foot or from base to top. | 25 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 252 g |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 196 mm |
| Package depth The distance from the front to the back of the packaging. | 293 mm |
| Package height The distance from the top to the bottom of the packaging. | 74 mm |
| Package weight Weight of the packaged product. | 1.6 kg |
| Packaging content | |
| AC adapter included |
|
| Cables included | USB |
| Included power plug types | ANZ,EU,NA,UK |
| Quick start guide Instructions, either online, as a computer program or in paper form, to allow you to set up and start using the product quickly. |
|
| Mounting kit |
|
| SKU | 245567 |
| MPN | ST121HDBTDK |
