Power Over Cable, Supports CAT5e(50M) / CAT6(40M) Ethernet Cable

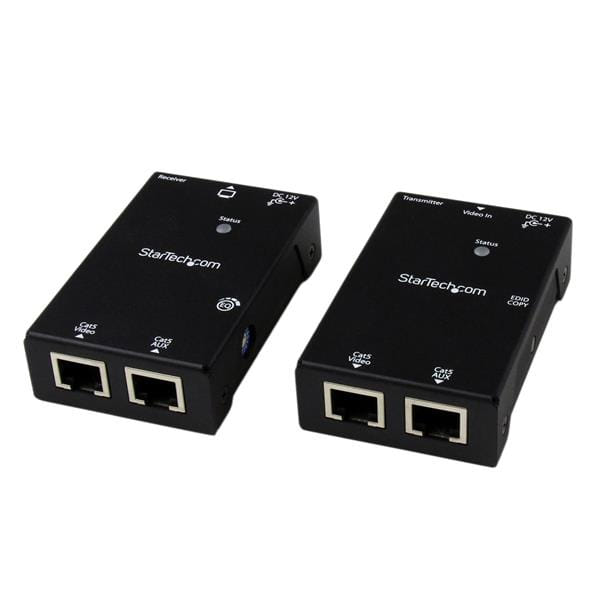

The ST121SHD50 HDMI® over Cat5e/Cat6 Video Extender kit lets you extend HDMI video and audio by up to 165 feet (50 Meters) over dual Cat5e cables or dual Cat6 cables. For added versatility the kit features Power Over Cable and only requires a single power adapter that can be connected to either the Transmitter or Receiver.
With support for High-Definition resolutions of up to 1920x1080 / 1080p and the accompanying digital audio, this cost-effective HD extender can easily be installed using new or existing Ethernet infrastructure wiring. For a convenient plug-and-play installation, the HDMI extender features built-in EDID monitor emulation, which ensures native resolution and maximum compatibility with your display or projector.
For added flexibility and convenience, HDMI cables up to 32ft (10m) can be connected to both the local and remote units, which lets you extend your HDMI signal to even further distances.
The HDMI extender kit offers a point-to-point digital signage solution right out of the box, including both local transmitter and remote receiver units, along with optional hardware that lets you mount the units as needed. Plus, with Power Over Cable, you can easily extend an HDMI signal in areas where access to power outlets is limited.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
| Connector(s) | |
| Local Unit Connectors | HDMI (19 pin) Female |
| RJ-45 Female | |
| Remote Unit Connectors | HDMI (19 pin) Female |
| RJ-45 Female | |
| Environmental | |
| Humidity | 0% - 80 % |
| Operating Temperature | 0?C to 40?C (32?F to 104?F) |
| Storage Temperature | -10?C to 60?C (14?F to 115?F) |
| Hardware | |
| Audio | Yes |
| Cabling | Cat 5 UTP or better |
| Daisy-Chain | No |
| Ports | 1 |
| Rack-Mountable | Yes |
| Indicators | |
| LED Indicators | Power |
| Packaging Information | |
| Shipping (Package) Weight | 0.7 kg [1.5 lb] |
| Performance | |
| General Specifications | Maximum Distances - (1080i only) CAT5E (stranded) - 40m (130 ft) CAT5E (solid) - 50m (165 ft) CAT6 (stranded or solid) - 50m (165 ft) |
| Max Distance | 50 m / 165 ft |
| Maximum Digital Resolutions | 1080p / 1920x1080 |
| Supported Resolutions | 1080i - Cat6 (stranded or solid) - up to 50m - Cat5e (solid) - up to 50m - Cat5e (stranded) - up to 40m 1080p - Cat6 (solid or stranded) - up to 40m - Cat5 (solid) - up to 20m - Cat5 (stranded) - up to 16m See product manual for further details |
| Wide Screen Supported | Yes |
| Physical Characteristics | |
| Color | Black |
| Enclosure Type | Aluminum |
| Product Height | 21 mm [0.8 in] |
| Product Length | 80 mm [3.1 in] |
| Product Weight | 157 g [5.5 oz] |
| Product Width | 51 mm [2 in] |
| Power | |
| Center Tip Polarity | Positive |
| Input Current | 0.5 A |
| Input Voltage | 100 ~ 240 AC |
| Output Current | 1.5 A |
| Output Voltage | 12 DC |
| Plug Type | M |
| Power Consumption (In Watts) | 18 |
| Power Source | AC Adapter Included |
| What's in the Box | |
| Included in Package | foot pad set |
| HDMI over CAT5e/6 UTP receiver | |
| HDMI over CAT5e/6 UTP transmitter | |
| instruction manual | |
| mounting brackets | |
| universal power adapter (NA / EU / UK / AU) | |
| Features | |
| Type Characteristics of the device. | AV transmitter & receiver |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 1920 x 1080 pixels |
| Cable types supported | Cat5e,Cat6 |
| Maximum transfer distance The greatest distance over which the data/signal can be transferred. | 50 m |
| LED indicators | Power |
| Supported video modes The video modes that can be displayed by the device. | 1080i,1080p |
| Supported graphics resolutions The graphic resolutions that can be displayed by the device. The graphic resolution describes the width and height dimensions of a display, such as a computer monitor, measured in pixels. | 1920 x 1080 (HD 1080) |
| Material The material from which a thing is or can be made e.g. wood, plastic. | Aluminum |
| Rack mounting The type of mounting that can position devices in a shelving system (rack). |
 |
| Daisy chain |
 |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| RoHS compliance The Restriction of Hazardous Substances (RoHS) Directive aims to restrict certain dangerous substances commonly used in electrical and electronic equipment. Any RoHS compliant product is tested for the presence of Lead (Pb), Cadmium (Cd), Mercury (Hg), Hexavalent chromium (Hex-Cr), Polybrominated biphenyls (PBB), and Polybrominated diphenyl ethers (PBDE). PBB and PBDE are flame retardants used in several plastics. For Cadmium and Hexavalent chromium, there must be less than 0.01% of the substance by weight at raw homogeneous materials level. For Lead, PBB, and PBDE, there must be no more than 0.1% of the material, when calculated by weight at raw homogeneous materials. Any RoHS compliant component must have 100 ppm or less of mercury and the mercury must not have been intentionally added to the component. In the EU, some military and medical equipment are exempt from RoHS compliance. |
|
| Certification | CE, FCC, REACH, TAA |
| Ports & interfaces | |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
|
| RJ-45 input ports | 2 |
| RJ-45 output ports | 2 |
| HDMI in Port (socket) for HDMI input. | 1 |
| Number of HDMI outputs Port (socket) for HDMI output. | 1 |
| DC-in jack The socket/plug where the DC electricity supply connects to the device. |
|
| Power | |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100-240 V |
| Operating voltage Defines the range of operating voltages available | 12 V |
| Input current | 0.5 A |
| Output current | 1.5 A |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 18 W |
| External power adapter |
|
| Power plug type | Type M |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -10 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Receiver dimensions (W x D x H) | 51 x 80 x 21 mm |
| Receiver weight | 157 g |
| Transmitter dimensions (WxDxH) | 51 x 80 x 21 mm |
| Transmitter weight | 157 g |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 157 mm |
| Package depth The distance from the front to the back of the packaging. | 237 mm |
| Package height The distance from the top to the bottom of the packaging. | 65 mm |
| Package length | 9.25 |
| Package weight Weight of the packaged product. | 935 g |
| Packaging content | |
| AC adapter included |
|
| Cables included | HDMI |
| Manual |
|
| Mounting brackets included |
|
| SKU | 210462 |
| MPN | ST121SHD50 |
| Brand | Startech |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://www.startech.com/ |
