The ST121SHD30 HDMI® over CAT5e/CAT6 Video Extender kit lets you extend HDMI audio/video and an IR remote control signal by up to 100 feet (30 Meters) over dual Cat5e or Cat6 cable. For added versatility this HDMI extender kit is powered via the HDMI bus, and does not require any additional power adapter.
With support for High-Definition resolutions of up to 1920x1080 / 1080p and the accompanying digital audio, this cost-effective HD extender can easily be installed using new or existing Ethernet infrastructure wiring. Plus, because the extender kit does not require a power adapter, you can easily extend an HDMI signal in areas where access to power outlets is limited.

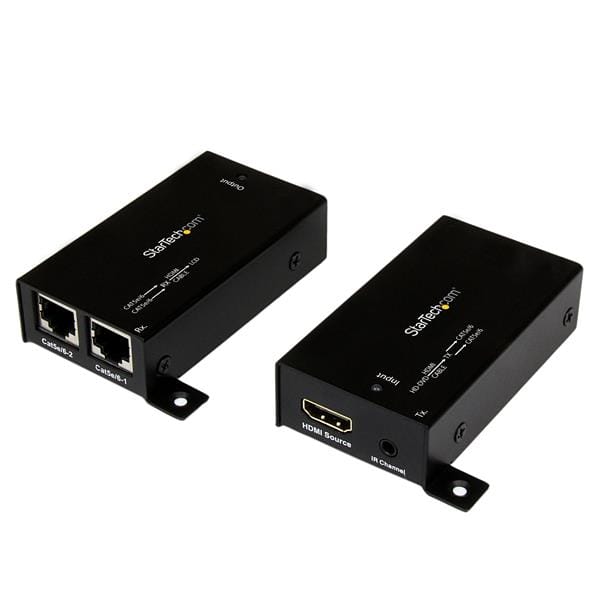

The HDMI over Cat5e/Cat6 video extender kit includes both the local transmitter and remote receiver units, perfect for point-to-point digital signage applications that require high quality HDMI video. The Extender also works to extend Infrared IR signals from remote controls, perfect for controlling your video source from your video destination.
For additional distance, HDMI cables up to 32-feet (10-meters) in length can be used on the local and remote ends.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
| Connector(s) | |
| Local Unit Connectors | HDMI (19 pin) Female |
| RJ-45 Female | |
| Remote Unit Connectors | HDMI (19 pin) Female |
| RJ-45 Female | |
| Environmental | |
| Humidity | 0% - 80 % |
| Operating Temperature | 0?C to 40?C (32?F to 104?F) |
| Storage Temperature | -10?C to 60?C (14?F to 115?F) |
| Hardware | |
| Cabling | Cat 5 UTP or better |
| Daisy-Chain | No |
| Ports | 1 |
| Indicators | |
| LED Indicators | Input |
| Output | |
| Packaging Information | |
| Shipping (Package) Weight | 0.3 kg [0.7 lb] |
| Performance | |
| General Specifications | IR dongle frequency - 35 to 56 khz |
| Max Distance | 30 m / 100 ft |
| Maximum Digital Resolutions | 1080p / 1920x1080 |
| Wide Screen Supported | Yes |
| Physical Characteristics | |
| Color | Black |
| Enclosure Type | Aluminum |
| Product Height | 22 mm [0.9 in] |
| Product Length | 82 mm [3.2 in] |
| Product Weight | 235 g [8.3 oz] |
| Product Width | 45 mm [1.8 in] |
| Special Notes / Requirements | |
| Note | The extender does not work through Ethernet equipment, such as switches or routers |
| What's in the Box | |
| Included in Package | Foot Pad Set |
| HDMI over CAT5e/6 UTP Receiver | |
| HDMI over CAT5e/6 UTP Transmitter | |
| IR Extender Kit | |
| Mounting brackets | |
| User Manual | |
| Features | |
| Type Characteristics of the device. | AV transmitter & receiver |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 1920 x 1080 pixels |
| Cable types supported | Cat5e,Cat6 |
| Maximum transfer distance The greatest distance over which the data/signal can be transferred. | 30 m |
| LED indicators |
 |
| Supported video modes The video modes that can be displayed by the device. | 1080p |
| Material The material from which a thing is or can be made e.g. wood, plastic. | Aluminum |
| Carrier frequency | 56 kHz |
| Plug and Play Indicates whether this product supports is "plug and play". Plug and play is hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration. |
|
| Daisy chain |
 |
| Rubber feet |
|
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| RoHS compliance The Restriction of Hazardous Substances (RoHS) Directive aims to restrict certain dangerous substances commonly used in electrical and electronic equipment. Any RoHS compliant product is tested for the presence of Lead (Pb), Cadmium (Cd), Mercury (Hg), Hexavalent chromium (Hex-Cr), Polybrominated biphenyls (PBB), and Polybrominated diphenyl ethers (PBDE). PBB and PBDE are flame retardants used in several plastics. For Cadmium and Hexavalent chromium, there must be less than 0.01% of the substance by weight at raw homogeneous materials level. For Lead, PBB, and PBDE, there must be no more than 0.1% of the material, when calculated by weight at raw homogeneous materials. Any RoHS compliant component must have 100 ppm or less of mercury and the mercury must not have been intentionally added to the component. In the EU, some military and medical equipment are exempt from RoHS compliance. |
|
| Certification | CE, FCC, REACH |
| Ports & interfaces | |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| RJ-45 input ports | 2 |
| RJ-45 output ports | 2 |
| HDMI in Port (socket) for HDMI input. | 1 |
| Number of HDMI outputs Port (socket) for HDMI output. | 1 |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -10 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 45 mm |
| Depth The distance from the front to the back of something. | 82 mm |
| Height The measurement of the product from head to foot or from base to top. | 22 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 241 g |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 150 mm |
| Package depth The distance from the front to the back of the packaging. | 210 mm |
| Package height The distance from the top to the bottom of the packaging. | 55 mm |
| Package length | 8.07 |
| Package weight Weight of the packaged product. | 408 g |
| Packaging content | |
| IR extender included |
|
| Manual |
|
| Mounting brackets included |
|
| SKU | 245609 |
| MPN | ST121SHD30 |
| Brand | Startech |
| Product Condition | Brand New/Unused |
