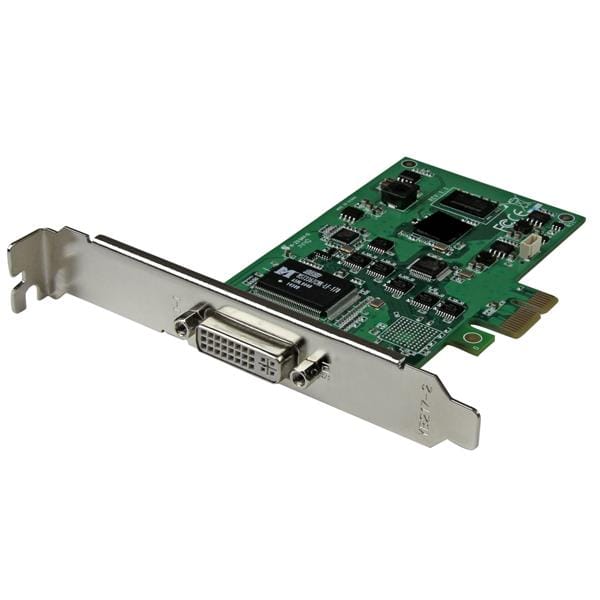

This all-in-one PCI Express capture card lets you record 1080p HD video and stereo audio to your computer system. With multiple video inputs including HDMI, DVI, VGA and component, the capture card can record original content from various sources such as computers, camcorders, security systems, POS terminals, and servers. With H.264 encoding, this is the perfect solution for capturing high-definition video for editing, compiling, and archiving.
You can install the card into any low-profile or full-profile PCIe slot, including fixed workstations such as 2U or 4U rack-mounted servers or media centers. Installing your capture device internally through PCIe ensures a secure and reliable way to capture video.
Capture video in 1080p HD
You can capture the same quality delivered by your video source, by recording video in high-definition 1080p at 30 frames per second. Unlike some capture devices that can only record at low-resolution 480p, this capture card matches the output of most consumer A/V equipment.
Now, you can capture the output from your computer, server, or POS station when creating software training and tutorial videos, without having to put up with inferior video quality.
H.264 encoding for wide device compatibility
The software that's included with the capture card encodes in H.264 -- the most widely adopted video codec in the world. Although the card is designed specifically for Windows® computers, H.264 encoding ensures the video files you save will be compatible with almost any video player such as such the media software on your PC, Mac, iOS and Android™ devices, with no editing or converting required.
H.264 is also widely supported by most software titles including Adobe Premiere® and Windows Media® Encoder. Plus, the software not only lets you capture and export videos, but it also lets you take screenshots, schedule recordings and instantly stream your video source over the Internet using online services such as Twitch®.
Flexible input solutions for convenient compatibility
With multiple A/V input options, the capture card lets you record video from a wide variety of sources including HDMI, DVI, VGA, and component. You can also use this capture card with A/V adapters to record other video sources such as SDI using our SDI to HDMI converter(SDI2HD). Support for a variety of A/V devices is ideal for archiving analog video footage into a digital database.
The device also includes easy-to-use software that?s compatible with NTSC and PAL systems, making it a must for professional video archiving applications where source media can change from project to project.
The PEXHDCAP2 is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Note: This capture card will not record digitally encrypted content.
Computer System Requirements:
- Operating system: Microsoft® Windows® Vista / 7 / 8 / 8.1 (32/64-bit)
- CPU: i3 dual core 2.8GHz or higher
- Memory: 2 GB
- An available PCI Express slot
| Connector(s) | |
| Connector A | PCI Express x1 Male Output |
| Connector B | DVI-I (29 pin) Female Input |
| Environmental | |
| Humidity | 20~80% (non-condensing) |
| Operating Temperature | 0?C to 40?C (32?F to 104?F) |
| Storage Temperature | -5?C to 40?C (23?F to 104?F) |
| Hardware | |
| Audio | Yes |
| Converter Type | Format Converter |
| Industry Standards | NTSC, PAL-M, PAL-60, PAL Video Encoding: MPEG4/H.264 |
| Packaging Information | |
| Shipping (Package) Weight | 322 g [11.4 oz] |
| Performance | |
| Audio Specifications | 16-Bit 48000Hz, HDMI 2Ch Audio or RCA Stereo input |
| Maximum Digital Resolutions | 1080p30 |
| Supported Resolutions | TV: 1080i/p, 720p, 576i/p, 480i/p PC: 1920x1080, 1440x900, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600 |
| Physical Characteristics | |
| Product Height | 20 mm [0.8 in] |
| Product Length | 120 mm [4.7 in] |
| Product Weight | 58 g [2 oz] |
| Product Width | 120 mm [4.7 in] |
| Software | |
| OS Compatibility | Windows? 10 (32/64), 8/8.1 (32/64), 7 (32/64), Vista (32/64), XP (32/64) |
| What's in the Box | |
| Included in Package | DVI-D to HDMI adapter |
| DVI-I breakout cable | |
| DVI-I to VGA adapter | |
| low profile bracket | |
| PCIe video capture card | |
| quick install guide | |
| Technical details | |
| Internal The product is built in. |
 |
| Host interface Interface that enables a host controller to communicate with a driver. | PCIe |
| Interface Interface ports to connect pieces of equipment. USB (Universal Serial Bus) has become the most popular wired interface to connect peripherals. USB 2.0 supports speeds up to 480 Mbit/s (USB 1: 12 Mbit/s). The interface FireWire is also known as the IEEE 1394 standard. Enhanced IDE (EIDE)is sometimes referred to as Fast ATA, Fast IDE or ATA-2. | DVI-I |
| Chipset Set of electronic components in an integrated circuit that manages the data flow between the processor, memory and peripherals. It is usually found in the motherboard of a computer. Chipsets are usually designed to work with a specific family of microprocessors. Because it controls communications between the processor and external devices, the chipset plays a crucial role in determining system performance. | Mstar MST3363CNK-170 |
| Video capture resolution (max) | 1920 x 1080 pixels |
| Capturing from | Cable TV,DVD Player,Digital camera |
| Supported aspect ratios The aspect ratio is the ratio of the width of an image to its height. The supported aspect ratios are the aspect ratios that can be shown by the device. | 4:3,16:9 |
| Video | |
| Analog signal format system The supported protocols for exchanging analog signals. | NTSC,PAL,PAL 60,PAL M |
| Supported resolutions | 1920x1080, 1440x900, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600 |
| Supported video modes The video modes that can be displayed by the device. | 480i,480p,576i,576p,720p,1080i,1080p |
| Audio | |
| Sample rate | 48 kHz |
| File formats | |
| Video compression formats | H.264,MPEG4 |
| Ports & interfaces | |
| DVI-I ports quantity This is the amount of DVI-I interfaces. Digital Visual Interface (DVI) is a video display interface developed by the Digital Display Working Group (DDWG). The digital interface is used to connect a video source to a display device, such as a computer monitor. DVI-I is DVI integrated, which means it can support digital and analog. | 1 |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 120 mm |
| Depth The distance from the front to the back of something. | 120 mm |
| Height The measurement of the product from head to foot or from base to top. | 20 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 58 g |
| Power | |
| USB powered The device can be powered via a USB connection. |
 |
| Software | |
| Windows operating systems supported Windows vesions wich can be used with the device. | Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 Pro,Windows 10 Pro x64,Windows 7,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows 8.1,Windows 8.1 Enterprise,Windows 8.1 Enterprise x64,Windows 8.1 Pro,Windows 8.1 Pro x64,Windows 8.1 x64,Windows Vista Enterprise,Windows Vista Enterprise x64,Windows Vista Home Basic,Windows Vista Home Basic x64,Windows Vista Home Premium,Windows Vista Home Premium x64,Windows Vista Ultimate,Windows Vista Ultimate x64,Windows XP Home,Windows XP Home x64,Windows XP Professional,Windows XP Professional x64 |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -5 - 40 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Packaging data | |
| Package weight Weight of the packaged product. | 365 g |
| Package height The distance from the top to the bottom of the packaging. | 42 mm |
| Package width The distance from one side of the packaging to the other. | 205 mm |
| Package depth The distance from the front to the back of the packaging. | 148 mm |
| Packaging content | |
| Interface adapters included | DVI-I male - VGA female |
| Cables included | DVI |
| Low-profile bracket |
|
| Quick installation guide |
|
| Certificates | |
| RoHS compliance The Restriction of Hazardous Substances (RoHS) Directive aims to restrict certain dangerous substances commonly used in electrical and electronic equipment. Any RoHS compliant product is tested for the presence of Lead (Pb), Cadmium (Cd), Mercury (Hg), Hexavalent chromium (Hex-Cr), Polybrominated biphenyls (PBB), and Polybrominated diphenyl ethers (PBDE). PBB and PBDE are flame retardants used in several plastics. For Cadmium and Hexavalent chromium, there must be less than 0.01% of the substance by weight at raw homogeneous materials level. For Lead, PBB, and PBDE, there must be no more than 0.1% of the material, when calculated by weight at raw homogeneous materials. Any RoHS compliant component must have 100 ppm or less of mercury and the mercury must not have been intentionally added to the component. In the EU, some military and medical equipment are exempt from RoHS compliance. |
|
| Certification | CE, FCC, TAA, REACH |
| SKU | 244181 |
| MPN | PEXHDCAP2 |
| Brand | Startech |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://www.startech.com/ |
