Half/Full Duplex, 1.25Gbps

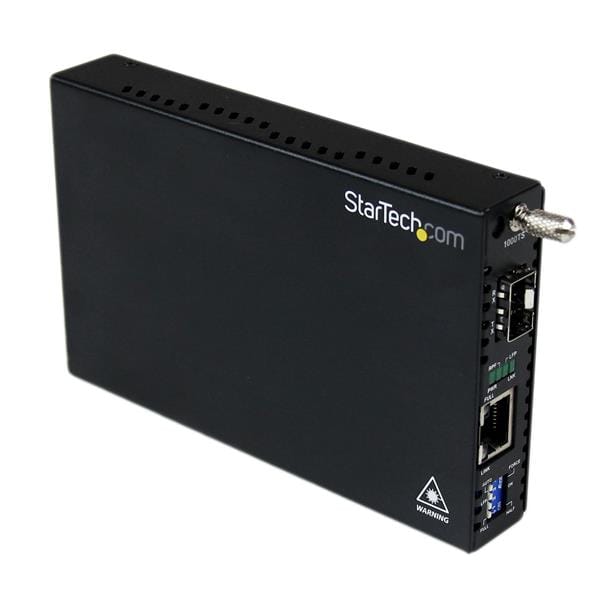

The ET91000SFP2 Open SFP Fiber Media Converter converts and extends a Gigabit Ethernet connection over fiber, using the Gigabit SFP of your choice.
A versatile solution for connecting an Ethernet (1000Base-T) network to remote network segments over a fiber backbone, the media converter features an open SFP slot that lets you choose the MSA-Compliant Gigabit SFP that best suits your fiber connection mode (single / multi-mode) and distance requirements (see our full line of Gigabit transceivers for compatible solutions).
The fiber to Ethernet converter has a durable all-steel chassis and offers simple plug-and-play installation, while support for full-duplex operation and Jumbo Frame support provides efficient network operation.
For added versatility, this Gigabit media converter supports standalone operation, or installation into the 20 Slot, 2U Rackmount Chassis (ETCHS2U). For applications where multiple chassis-mounted media converters are required, this Gigabit media converter can be purchased as a Card Module only (ET91000SFP2C).
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
| Connector(s) | |
| Local Unit Connectors | RJ-45 Female |
| SFP Slot Female | |
| Environmental | |
| Humidity | 10~90% RH (Non-Condensing) |
| Operating Temperature | 0?C to 60?C (32?F to 140?F) |
| Storage Temperature | -10?C to 70?C (14?F to 158?F) |
| Hardware | |
| Chipset ID | Marvell - 88E1111 |
| Industry Standards | IEEE 802.3ab 1000BASE-T |
| IEEE 802.3u 100BASE-LX | |
| IEEE 802.3z 1000BASE-SX | |
| PoE | No |
| WDM | No |
| Packaging Information | |
| Shipping (Package) Weight | 0.8 kg [1.7 lb] |
| Performance | |
| Auto MDIX | Yes |
| Fiber Operating Mode | Half/Full-Duplex |
| Maximum Data Transfer Rate | 1.25 Gbps |
| MTBF | 65, 000 Hours |
| Physical Characteristics | |
| Color | Black |
| Enclosure Type | Steel |
| Product Height | 23 mm [0.9 in] |
| Product Length | 154 mm [6.1 in] |
| Product Weight | 396 g [14 oz] |
| Product Width | 88 mm [3.5 in] |
| Power | |
| Center Tip Polarity | Positive |
| Input Current | 0.36 A |
| Input Voltage | 100 ~ 240 AC |
| Output Current | 1 A |
| Output Voltage | 12 DC |
| Plug Type | M |
| Power Consumption (In Watts) | 8 |
| Power Source | AC Adapter Included |
| Special Notes / Requirements | |
| Note | Fiber data transfer speeds and distances are dependent on the SFP used (sold separately) |
| What's in the Box | |
| Included in Package | Fiber Media Converter |
| Grounding Screw | |
| Instruction Manual | |
| Universal power adapter: comes ready for NA/EU/UK only when you buy in NA/EU/UK; comes ready for Australia and New Zealand only when you buy in Australia and New Zealand | |
| Network | |
| Maximum data transfer rate The maximum speed with which data can be transmitted from one device to another. | 1250 Mbit/s |
| Converter input interface A convertor changes one form of signal into another e.g. A/D Converter changes a signal from analog to digital. A convertor input interface is the place where a convertor connects to the product in order to input the converted signal. | 1000Base-T |
| Converter output interface | 1000Base-LX,1000Base-SX |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.3,IEEE 802.3ab,IEEE 802.3u,IEEE 802.3z |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 1000 Mbit/s |
| Auto MDI/MDI-X A Medium Dependent Interface (MDI) describes the interface (both physical and electrical) in a computer network from a physical layer implementation to the physical medium used to carry the transmission. Ethernet over twisted pair also defines a medium dependent interface crossover (MDIX) interface. Auto-MDIX ports on newer network interfaces detect if the connection would require a crossover, and automatically chooses the MDI or MDIX configuration to properly match the other end of the link. |
 |
| Duplex system A duplex communication system is a point-to-point system composed of two connected parties or devices that can communicate with one another in both directions, simultaneously. | Full,Half |
| Ports & interfaces | |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 1 |
| Fiber ports quantity The number of sockets (ports) for fibers (cables). | 1 |
| Fiber optic connector This terminates the end of an optical fiber, and enables quicker connection and disconnection than splicing. The connectors mechanically couple and align the cores of fibers so light can pass. Better connectors lose very little light due to reflection or misalignment of the fibers. In all there have been about 100 types of optic fiber connectors produced. | SFP |
| Performance | |
| Mean time between failures (MTBF) Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism. | 65000 h |
| Design | |
| Internal The product is built in. |
 |
| LED indicators |
|
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Housing material What the casing of the product is made of. | Steel |
| RoHS compliance The Restriction of Hazardous Substances (RoHS) Directive aims to restrict certain dangerous substances commonly used in electrical and electronic equipment. Any RoHS compliant product is tested for the presence of Lead (Pb), Cadmium (Cd), Mercury (Hg), Hexavalent chromium (Hex-Cr), Polybrominated biphenyls (PBB), and Polybrominated diphenyl ethers (PBDE). PBB and PBDE are flame retardants used in several plastics. For Cadmium and Hexavalent chromium, there must be less than 0.01% of the substance by weight at raw homogeneous materials level. For Lead, PBB, and PBDE, there must be no more than 0.1% of the material, when calculated by weight at raw homogeneous materials. Any RoHS compliant component must have 100 ppm or less of mercury and the mercury must not have been intentionally added to the component. In the EU, some military and medical equipment are exempt from RoHS compliance. |
|
| Certification | FCC |
| Power | |
| Input voltage The voltage (V) which is required to power the product. | 100 - 240 V |
| Input current | 0.36 A |
| Output voltage | 12 V |
| Output current | 1 A |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 8 W |
| Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras. |
|
| External power adapter |
|
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 95 mm |
| Depth The distance from the front to the back of something. | 160 mm |
| Height The measurement of the product from head to foot or from base to top. | 20 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 400 g |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 60 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -10 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Packaging data | |
| Package length | 7.99 |
| Package width The distance from one side of the packaging to the other. | 137 mm |
| Package depth The distance from the front to the back of the packaging. | 208 mm |
| Package height The distance from the top to the bottom of the packaging. | 92 mm |
| Package weight Weight of the packaged product. | 786 g |
| Packaging content | |
| Manual |
|
| SKU | 219366 |
| MPN | ET91000SFP2 |
| Brand | Startech |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://www.startech.com/ |
