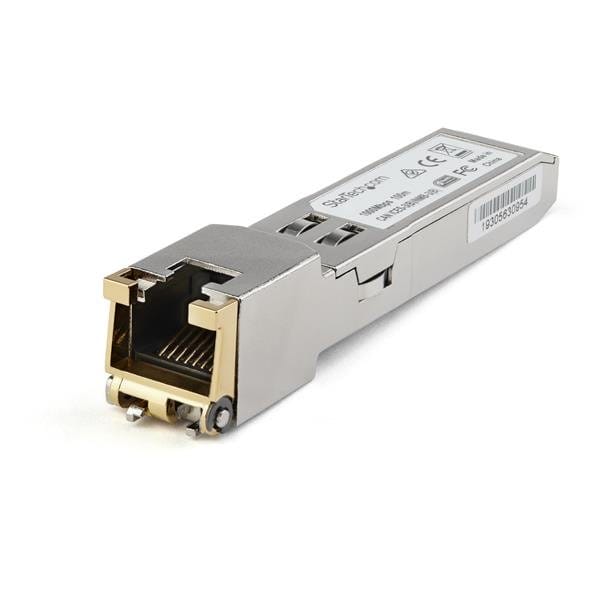

Startech GbRJ45 Copper SFP Cisco Compatible Transceiver Module

The GLCTEST is a Cisco GLC-TE compatible copper transceiver module that has been designed, programmed and tested to work with Cisco® brand switches and routers for extended temperatures. It delivers dependable 1 GbE connectivity over copper cable, for 1000BASE-T compliant networks, with a maximum distance of up to 100 m (328 ft).  Technical Specifications:

• Maximum Data Transfer Rate: 1000 Mbps
• Type: Copper
• Connection Type: RJ45 Connector
• Maximum Transfer Distance: 100 m (328 ft)
• MTBF: 4,655,371 hours
• Power Consumption: Less than 1.3 Watts
• Digital Diagnostics Monitoring (DDM): No

This SFP copper module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.   Startech SFPs  All Startech SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. Startech offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.

Performance
DDM	No
Max Transfer Distance	100 m (328 ft)
Maximum Data Transfer Rate	1.25Gbps
MTBF	4655371 Hours
Type	Copper
Physical Characteristics
Product Height	12.000
Product Length	6.5 cm [2.6 in]
Product Width	14.000
Weight of Product	72.000
Prominence
Description CDW 75 - 1st Line	Startech Cisco GLC-TE Compatible SFP Module
What's in the Box
Included in Package	SFP transceiver
Performance
Compatible Networks	10/100/1000 Mbps
Packaging Information
Shipping (Package) Weight	50.000
Package Width	90.000
Package Length	115.000
Package Height	31.000
Hardware
OEM Equivalent Part Number	GLC-TE
Industry Standards	IEEE 802.3 10/100/1000BASE-TX
Compatible Brand	Cisco Specifications Performance SFP transceiver type Copper Maximum data transfer rate The maximum speed with which data can be transmitted from one device to another. 1250 Mbit/s Interface type SFP Maximum transfer distance The greatest distance over which the data/signal can be transferred. 100 m Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. IEEE 802.3 Copper ethernet cabling technology 1000BASE-T Digital Diagnostics Monitoring (DDM) Features Product colour The colour e.g. red, blue, green, black, white. Silver Hot-swap Mean time between failures (MTBF) Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism. 4655371 h RoHS compliance The Restriction of Hazardous Substances (RoHS) Directive aims to restrict certain dangerous substances commonly used in electrical and electronic equipment. Any RoHS compliant product is tested for the presence of Lead (Pb), Cadmium (Cd), Mercury (Hg), Hexavalent chromium (Hex-Cr), Polybrominated biphenyls (PBB), and Polybrominated diphenyl ethers (PBDE). PBB and PBDE are flame retardants used in several plastics. For Cadmium and Hexavalent chromium, there must be less than 0.01% of the substance by weight at raw homogeneous materials level. For Lead, PBB, and PBDE, there must be no more than 0.1% of the material, when calculated by weight at raw homogeneous materials. Any RoHS compliant component must have 100 ppm or less of mercury and the mercury must not have been intentionally added to the component. In the EU, some military and medical equipment are exempt from RoHS compliance. Brand compatibility What other brands this brand can be used with. Cisco Compatible products Other products that can be used with this product. C1000, C2960S, C3560, C3750, C9400, C9500, N3500, N2000, N5000, N7000, N7700, UCSB, IE2000, Firepower, ISR4000 Certification CE, FCC, REACH Power Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. 1.3 W Operational conditions Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. -40 - 85 °C Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. -40 - 85 °C Operating relative humidity (H-H) 30 - 75% Weight & dimensions Width The measurement or extent of something from side to side. 14 mm Depth The distance from the front to the back of something. 65 mm Height The measurement of the product from head to foot or from base to top. 12 mm Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. 72 g Packaging data Number of products included The number of products that are included in the package. 1 pc(s) Package width The distance from one side of the packaging to the other. 90 mm Package depth The distance from the front to the back of the packaging. 115 mm Package height The distance from the top to the bottom of the packaging. 31 mm Package weight Weight of the packaged product. 50 g Logistics data Master (outer) case width 34.4 cm Master (outer) case length 29.5 cm Master (outer) case height 25.5 cm Quantity per master (outer) case 36 pc(s) More Information SKU 400701 MPN GLCTEST Brand Startech Product Condition Brand New/Unused Product Use General Stock Availability Available for Shipping Related Products Reviews
