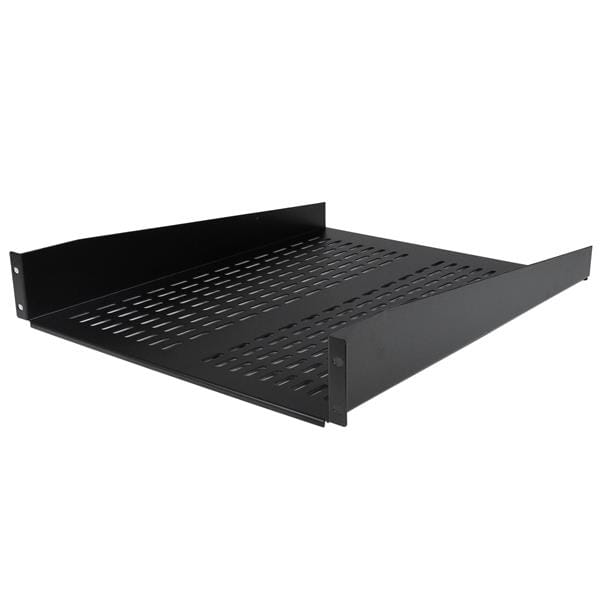

The CABSHELF22V 2U 22in Depth Vented Rack Mount Shelf lets you add a compact, 2U shelf to virtually any standard 19-inch server rack or cabinet with front mount options. This TAA compliant product adheres to the requirements of the US Federal Trade Agreements Act (TAA), allowing government GSA Schedule purchases.
Our vented rack shelves improve air flow and help to lower temperatures in the rack. Constructed using SPCC commercial grade cold-rolled steel, this durable fixed rack shelf can hold up to 22kg (50lbs) of equipment - a perfect solution for storing small, non-rackmount equipment, tools, peripherals or accessories in your rack to keep them readily accessible.
Backed by a StarTech.com Lifetime warranty.
| Hardware | |
| Frame Type | Steel |
| Mounting Options | Front Mount (Front Only) |
| U Height | 2U |
| Packaging Information | |
| Shipping (Package) Weight | 4.6 kg [10.1 lb] |
| Performance | |
| Weight Capacity | 22.6 kg [50 lb] |
| Physical Characteristics | |
| Color | Black |
| Enclosure Thickness | 1.6 mm [0.1 in] |
| Enclosure Type | Steel |
| External Depth | 558.8 mm [22 in] |
| External Height | 88 mm [3.5 in] |
| External Width | 482.7 mm [19 in] |
| Product Weight | 3.6 kg [7.9 lb] |
| What's in the Box | |
| Included in Package | 2U 22in Depth Rack Shelf |
| Instruction Manual | |
| M6 Cage Nuts | |
| M6 Screws | |
| Features | |
| Type Characteristics of the device. | Rack shelf |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Housing material What the casing of the product is made of. | Steel |
| Maximum weight capacity The maximum weight that the product is designed to hold/store. | 22.6 kg |
| Rack capacity The spase that device fill in rack. | 2U |
| RoHS compliance The Restriction of Hazardous Substances (RoHS) Directive aims to restrict certain dangerous substances commonly used in electrical and electronic equipment. Any RoHS compliant product is tested for the presence of Lead (Pb), Cadmium (Cd), Mercury (Hg), Hexavalent chromium (Hex-Cr), Polybrominated biphenyls (PBB), and Polybrominated diphenyl ethers (PBDE). PBB and PBDE are flame retardants used in several plastics. For Cadmium and Hexavalent chromium, there must be less than 0.01% of the substance by weight at raw homogeneous materials level. For Lead, PBB, and PBDE, there must be no more than 0.1% of the material, when calculated by weight at raw homogeneous materials. Any RoHS compliant component must have 100 ppm or less of mercury and the mercury must not have been intentionally added to the component. In the EU, some military and medical equipment are exempt from RoHS compliance. |
 |
| Certification | CE, TAA, REACH |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 482.7 mm |
| Depth The distance from the front to the back of something. | 55.9 mm |
| Height The measurement of the product from head to foot or from base to top. | 88 mm |
| Material thickness | 1.6 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 3.6 kg |
| Packaging data | |
| Package length | 22.83 |
| Package width The distance from one side of the packaging to the other. | 505 mm |
| Package depth The distance from the front to the back of the packaging. | 580 mm |
| Package height The distance from the top to the bottom of the packaging. | 115 mm |
| Package weight Weight of the packaged product. | 4.6 kg |
| Packaging content | |
| Screws included |
|
| Number of screws | 4 |
| Nuts included |
|
| Number of nuts | 4 |
| SKU | 240184 |
| MPN | CABSHELF22V |
| Brand | Startech |
| Product Condition | Brand New/Unused |
| Warranty Period | Limited Lifetime Warranty |
| Warranty Contact | https://www.startech.com/ |
