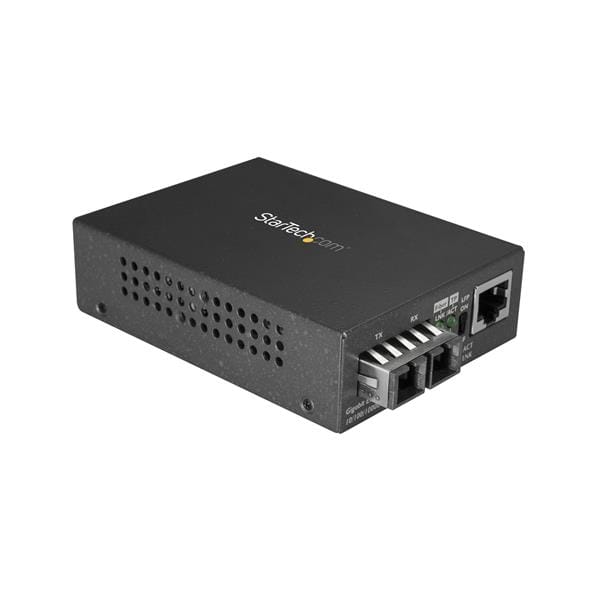

Convert and extend a Gigabit Ethernet connection up to 550 m over multimode SC fiber - GbE to SC Fiber Media Converter - MM - 550 m
This fiber media converter extends a Gigabit Ethernet (1000Mbps) network up to 550 m over multimode fiber, on 1000BASE-SX networks.
Extend your GbE network cost-effectively
The fiber media converter offers a cost-effective way to transparently convert copper to fiber, or fiber to copper, for connecting remote sub-networks to larger fiber-optic networks. Providing both SC fiber and RJ45 Ethernet ports, it integrates easily into a wide range of Gigabit Ethernet network infrastructures. The RJ45 port supports triple-speed (10/100/1000 BASE-T) auto-negotiation.
Reliable and scalable network connectivity
Supporting a maximum multimode fiber-optic cable distance of 550 meters (0.34 miles), the media converter delivers a simple and reliable solution for connecting Gigabit Ethernet networks to remote locations over multimode fiber, while ensuring solid network performance. It provides optimum network scalability for connecting two or more Ethernet network nodes, for instance, connecting two buildings on the same campus or facility. The media converter also offers high-speed bandwidth to meet the increasing demands of large-scale workgroups that require expansion of a Gigabit Ethernet network.
The MCMGBSCMM055 is backed by a StarTech.com 2-year warranty and free lifetime technical support.
| Connector(s) | |
| Local Unit Connectors | RJ-45 Female |
| Remote Unit Connectors | Fiber Optic SC Duplex Female |
| Environmental | |
| Humidity | 5 ~ 90% RH |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Storage Temperature | -10°C to 70°C (14°F to 158°F) |
| Hardware | |
| Industry Standards | IEEE 802.1q VLAN pass through |
| IEEE 802.3 10BASE-T | |
| IEEE 802.3ab 1000BASE-T | |
| IEEE 802.3u 100BASE-TX | |
| IEEE 802.3x full-duplex flow control | |
| IEEE 802.3z 1000BASE-SX | |
| PoE | No |
| WDM | No |
| Indicators | |
| LED Indicators | 1000 Link: ON - Valid Gigabit Link |
| FX Link/Activity | |
| Power | |
| TP Link/Activity | |
| Packaging Information | |
| Shipping (Package) Weight | 564 g [19.9 oz] |
| Performance | |
| Auto MDIX | Yes |
| Fiber Operating Mode | Full-Duplex |
| Fiber Type | Multi Mode |
| Jumbo Frame Support | 9K max. |
| Max Transfer Distance | 550 m (1804 ft) |
| Maximum Data Transfer Rate | 1000 Mbps (1 Gbps) |
| MTBF | > 50,000 hours at 25°C |
| Supports a maximum distance of 550 m over MM fiber-optic cable (SC connection), and 100m over copper (RJ45 connection) Data Transfer Rate Copper | Supports a maximum distance of 550 m over MM fiber-optic cable (SC connection), and 100m over copper (RJ45 connection) Data Transfer Rate Copper: 10/100/1000 Mbps Data Transfer Rate Fiber: 1000 Mbps ESD Surge Protection: 1KV. Contact discharge - 4KV. Air discharge - 8KV |
| Switching Architecture | Store-and-Forward |
| Wavelength | 850nm |
| Physical Characteristics | |
| Color | Brown |
| Enclosure Type | Steel |
| Product Height | 26 mm [1 in] |
| Product Length | 70 mm [2.8 in] |
| Product Weight | 200 g [7.1 oz] |
| Product Width | 97 mm [3.8 in] |
| Power | |
| Center Tip Polarity | Positive |
| Input Current | 0.5 A |
| Input Voltage | 100 ~ 240 AC |
| Output Current | 2.6 A |
| Output Voltage | 5 DC |
| Plug Type | N |
| Power Consumption (In Watts) | 5 |
| Power Source | AC Adapter Included |
| What's in the Box | |
| Included in Package | media converter |
| quick-start guide | |
| universal power adapter (NA/JP, UK, EU, ANZ) | |
| Network | |
| Maximum data transfer rate The maximum speed with which data can be transmitted from one device to another. | 1000 Mbit/s |
| Converter input interface A convertor changes one form of signal into another e.g. A/D Converter changes a signal from analog to digital. A convertor input interface is the place where a convertor connects to the product in order to input the converted signal. | 100Base-TX,1000Base-T |
| Converter output interface | 1000Base-SX |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.1Q,IEEE 802.3,IEEE 802.3ab,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z |
| Ethernet interface type | Fast Ethernet,Gigabit Ethernet |
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 10,100,1000 Mbit/s |
| Jumbo frames support |
 |
| Jumbo frames | 9000 |
| Flow control support |
|
| Auto MDI/MDI-X A Medium Dependent Interface (MDI) describes the interface (both physical and electrical) in a computer network from a physical layer implementation to the physical medium used to carry the transmission. Ethernet over twisted pair also defines a medium dependent interface crossover (MDIX) interface. Auto-MDIX ports on newer network interfaces detect if the connection would require a crossover, and automatically chooses the MDI or MDIX configuration to properly match the other end of the link. |
|
| Store-and-forward |
|
| Duplex system A duplex communication system is a point-to-point system composed of two connected parties or devices that can communicate with one another in both directions, simultaneously. | Full |
| Ports & interfaces | |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 1 |
| Fiber ports quantity The number of sockets (ports) for fibers (cables). | 1 |
| Fiber optic connector This terminates the end of an optical fiber, and enables quicker connection and disconnection than splicing. The connectors mechanically couple and align the cores of fibers so light can pass. Better connectors lose very little light due to reflection or misalignment of the fibers. In all there have been about 100 types of optic fiber connectors produced. | SC |
| Performance | |
| Maximum transfer distance The greatest distance over which the data/signal can be transferred. | 550 m |
| Wavelength The distance over which a wave repeats itself. The wavelength determines the characteristics of the wave e.g. red light has a different wavelength to blue light. | 850 nm |
| Wavelength-division multiplexing (WDM) |
 |
| Fiber mode structure | Multi-mode |
| Mean time between failures (MTBF) Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism. | 50000 h |
| Design | |
| Internal The product is built in. |
|
| LED indicators | Activity,Link,Power |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Housing material What the casing of the product is made of. | Steel |
| RoHS compliance The Restriction of Hazardous Substances (RoHS) Directive aims to restrict certain dangerous substances commonly used in electrical and electronic equipment. Any RoHS compliant product is tested for the presence of Lead (Pb), Cadmium (Cd), Mercury (Hg), Hexavalent chromium (Hex-Cr), Polybrominated biphenyls (PBB), and Polybrominated diphenyl ethers (PBDE). PBB and PBDE are flame retardants used in several plastics. For Cadmium and Hexavalent chromium, there must be less than 0.01% of the substance by weight at raw homogeneous materials level. For Lead, PBB, and PBDE, there must be no more than 0.1% of the material, when calculated by weight at raw homogeneous materials. Any RoHS compliant component must have 100 ppm or less of mercury and the mercury must not have been intentionally added to the component. In the EU, some military and medical equipment are exempt from RoHS compliance. |
|
| Certification | CE, FCC, REACH |
| Power | |
| Input voltage The voltage (V) which is required to power the product. | 100 - 240 V |
| Input current | 0.5 A |
| Output voltage | 5 V |
| Output current | 2.6 A |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 5 W |
| External power adapter |
|
| Power plug type | Type N |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 97 mm |
| Depth The distance from the front to the back of something. | 70 mm |
| Height The measurement of the product from head to foot or from base to top. | 26 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 200 g |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 50 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -10 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 280 mm |
| Package depth The distance from the front to the back of the packaging. | 133 mm |
| Package height The distance from the top to the bottom of the packaging. | 66 mm |
| Package weight Weight of the packaged product. | 564 g |
| Packaging content | |
| AC adapter included |
|
| Quick installation guide |
|
| Logistics data | |
| Master (outer) case width | 59.5 cm |
| Master (outer) case length | 37.5 cm |
| Master (outer) case height | 32 cm |
| Quantity per master (outer) case | 20 pc(s) |
| SKU | 263487 |
| MPN | MCMGBSCMM055 |
