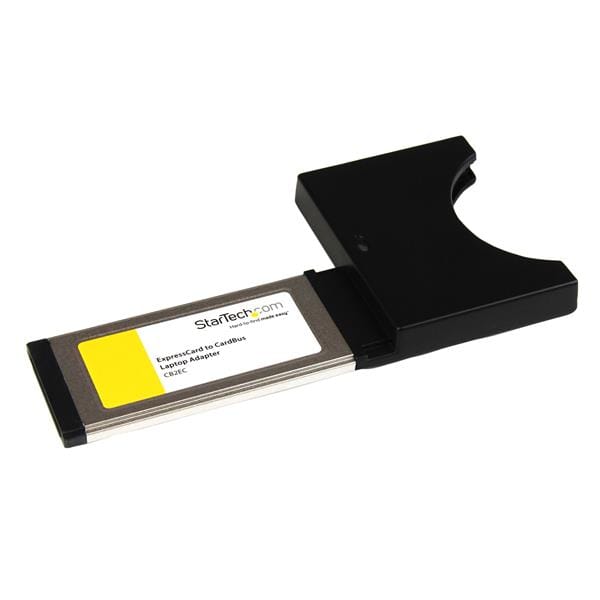

The CB2EC CardBus to ExpressCard Adapter converts a laptop ExpressCard port into a CardBus port, enabling you to use older CardBus cards with a newer (ExpressCard-capable) laptop computer.
Ideal for use with Ethernet LAN, Broadband, Modem, and other CardBus expansion cards, this adapter eliminates the expense of replacing your existing CardBus cards for the sake of compatibility with a newer laptop computer.
The CardBus to ExpressCard adapter supports common operating systems including Windows® XP, Vista™, and Mac OS X and up, and is backed by StarTech.com's 2-year warranty.
| Connector(s) | |
| Connector Type(s) | ExpressCard (34mm) |
| External Ports | PC Card (Type II, Cardbus) Slot |
| Hardware | |
| Bus Type | ExpressCard |
| Card Type | 34mm ExpressCard |
| Chipset ID | Texas Instruments - XIO2000A |
| Interface | CardBus (PCMCIA) |
| Packaging Information | |
| Shipping (Package) Weight | 0.2 kg [0.4 lb] |
| Physical Characteristics | |
| Product Height | 12 mm [0.5 in] |
| Product Length | 128 mm [5 in] |
| Product Weight | 41 g [1.4 oz] |
| Product Width | 64 mm [2.5 in] |
| Software | |
| OS Compatibility | OS Independent; No additional drivers or software required |
| Special Notes / Requirements | |
| Note | Supports 32-bit, Type I/II CardBus cards only |
| What's in the Box | |
| Included in Package | ExpressCard to CardBus Adapter |
| Instruction Manual | |
| Ports & interfaces | |
| Host interface Interface that enables a host controller to communicate with a driver. | ExpressCard |
| Output interface The socket (port) where the output connectors are connected. | Type I/II CardBus |
| Design | |
| Internal The product is built in. |
 |
| Product colour The colour e.g. red, blue, green, black, white. | Black,Metallic |
| RoHS compliance The Restriction of Hazardous Substances (RoHS) Directive aims to restrict certain dangerous substances commonly used in electrical and electronic equipment. Any RoHS compliant product is tested for the presence of Lead (Pb), Cadmium (Cd), Mercury (Hg), Hexavalent chromium (Hex-Cr), Polybrominated biphenyls (PBB), and Polybrominated diphenyl ethers (PBDE). PBB and PBDE are flame retardants used in several plastics. For Cadmium and Hexavalent chromium, there must be less than 0.01% of the substance by weight at raw homogeneous materials level. For Lead, PBB, and PBDE, there must be no more than 0.1% of the material, when calculated by weight at raw homogeneous materials. Any RoHS compliant component must have 100 ppm or less of mercury and the mercury must not have been intentionally added to the component. In the EU, some military and medical equipment are exempt from RoHS compliance. |
 |
| Certification | CE, FCC |
| Features | |
| Chipset Set of electronic components in an integrated circuit that manages the data flow between the processor, memory and peripherals. It is usually found in the motherboard of a computer. Chipsets are usually designed to work with a specific family of microprocessors. Because it controls communications between the processor and external devices, the chipset plays a crucial role in determining system performance. | XIO2000A |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 64 mm |
| Depth The distance from the front to the back of something. | 128 mm |
| Height The measurement of the product from head to foot or from base to top. | 12 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 41 g |
| Packaging data | |
| Manual |
|
| Package width The distance from one side of the packaging to the other. | 160 mm |
| Package depth The distance from the front to the back of the packaging. | 220 mm |
| Package height The distance from the top to the bottom of the packaging. | 48 mm |
| Package weight Weight of the packaged product. | 160 g |
| Other features | |
| Compatible operating systems List of desktop operating systems tested as compatible with this product. | Windows XP(32/64bit)/ Vista(32/64bit)/ 7(32/64bit)/ Server 2008 R2, Linux, Mac OS X |
| Package length | 8.66 |
| SKU | 240219 |
| MPN | CB2EC |
| Brand | Startech |
| Product Condition | Brand New/Unused |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://www.startech.com/ |
