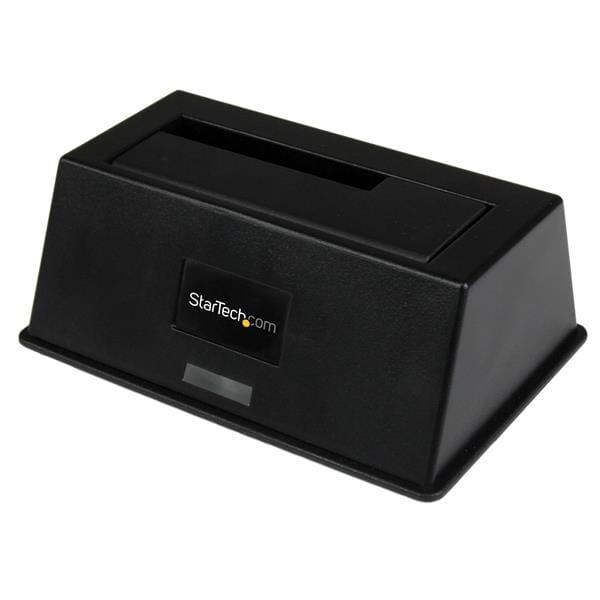

The versatile SDOCKU33EBV UASP-enabled USB 3.0 / eSATA docking station makes it easy for you to connect and swap 2.5in or 3.5in SATA III hard drives (HDD) and solid state drives (SSD), with the option to connect through either USB or eSATA.
For convenient compatibility and time-saving performance, the SDOCKU33EBV docking station can be connected through USB 3.0, with support for full USB 3.0 bandwidth (5 Gbps) as well as UASP, which delivers performance up to 70% faster than conventional USB 3.0 when paired with a UASP-enabled host controller. For fast performance and efficient data transfers, the dock also supports the full SATA III bandwidth of 6 Gbps when connected through eSATA. See our UASP testing results below for further details.
With support for large capacity SATA I/II/III drives (tested up to 6TB), as well as 2.5in or 3.5in drives, this HDD/SSD docking station makes it easy to maximize the storage/backup capabilities of your computer using virtually any SATA drive.
Extend the value of this hard drive docking station further with the addition of our SATA to IDE Hard Drive Adapter (SAT2IDEADP), allowing easy insertion of any 2.5 or 3.5in IDE hard drive into a SATA hard drive dock.
To ensure compatibility with your computer system, the SDOCKU33EBV supports all of the leading operating systems, including: Microsoft Windows® (8/7/Vista/XP/Server 2008/Server 2003), Apple® OSX (10.9/10.8/10.7/10.6), Linux, and Google Chrome OS™.
The SDOCKU33EBV is backed by a 2-year StarTech.com warranty and free lifetime technical support.
Improved Performance with UASP
UASP is supported in Windows 8, Mac OSX (10.8 or above), and Linux. In testing, UASP performs with a 70% faster read speed and 40% faster write speed over traditional USB 3.0 at peak performance.
At the same peak in testing UASP also shows an 80% reduction in required processor resources.
Testing results were obtained using an Intel® Ivy Bridge system, a UASP-enabled StarTech.com Enclosure, and a SATA III solid state drive.
| Connector(s) | |
| Drive Connectors | SATA Data & Power Combo (7+15 pin) Receptacle |
| Host Connectors | eSATA (7 pin, Data) Female |
| USB Type-B (9 pin) USB 3.0 Female | |
| Environmental | |
| Humidity | 20%RH ~ 80%RH |
| Operating Temperature | 5?C to 35?C (41?F to 95?F) |
| Storage Temperature | -20?C to 50?C (-4?F to 122?F) |
| Hardware | |
| Bus Type | USB 3.0 & eSATA |
| Chipset ID | JMicron ? JMS561 |
| Compatible Drive Types | SATA |
| Drive Installation | Removable |
| Drive Size | 2.5in & 3.5in |
| Fan(s) | No |
| Interface | USB 3.0 & eSATA |
| Number of Drives | 1 |
| Indicators | |
| LED Indicators | Power/Activity |
| Packaging Information | |
| Shipping (Package) Weight | 0.8 kg [1.7 lb] |
| Performance | |
| Hot Swap Capability | Yes |
| Max Drive Capacity | Currently tested with hard drives up to 6TB 7200 RPM |
| Maximum Data Transfer Rate | 6 Gbps (eSATA) 5 Gbps (USB 3.0) |
| Type and Rate | SATA III (6 Gbps) |
| USB 3.0 - 5 Gbit/s | |
| UASP Support | Yes |
| Physical Characteristics | |
| Color | Black |
| Product Height | 53 mm [2.1 in] |
| Product Length | 139 mm [5.5 in] |
| Product Weight | 325 g [11.5 oz] |
| Product Width | 92 mm [3.6 in] |
| Power | |
| Input Current | 0.8 A |
| Input Voltage | 100 ~ 240 AC |
| Output Current | 2.0 A |
| Output Voltage | 12 DC |
| Plug Type | M |
| Power Consumption (In Watts) | 24 |
| Power Source | AC Adapter Included |
| Software | |
| OS Compatibility | OS independent; No software or drivers required |
| What's in the Box | |
| Included in Package | eSATA Cable |
| Instruction Manual | |
| Universal Power Adapter (NA / EU / UK) | |
| USB 3.0 Cable | |
| USB 3.0/eSATA to SATA III Hard Drive Dock w/UASP | |
| Hard drive | |
| Number of storage drives supported How many storage drives can be fit into the product at once. | 1 |
| Maximum storage capacity The maximum amount of data that can be stored in the device. | 6 TB |
| Ports & interfaces | |
| eSATA ports quantity The number of ports (interfaces) for eSATA. eSATA is a a computer bus interface that connects host bus adapters to mass storage devices such as hard disk drives and optical drives. | 1 |
| Features | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Hot-swap |
 |
| Plug and Play Indicates whether this product supports is "plug and play". Plug and play is hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration. |
|
| LED indicators | Activity,Power |
| UASP support |
|
| Chipset Set of electronic components in an integrated circuit that manages the data flow between the processor, memory and peripherals. It is usually found in the motherboard of a computer. Chipsets are usually designed to work with a specific family of microprocessors. Because it controls communications between the processor and external devices, the chipset plays a crucial role in determining system performance. | JMicron - JMS561 |
| RoHS compliance The Restriction of Hazardous Substances (RoHS) Directive aims to restrict certain dangerous substances commonly used in electrical and electronic equipment. Any RoHS compliant product is tested for the presence of Lead (Pb), Cadmium (Cd), Mercury (Hg), Hexavalent chromium (Hex-Cr), Polybrominated biphenyls (PBB), and Polybrominated diphenyl ethers (PBDE). PBB and PBDE are flame retardants used in several plastics. For Cadmium and Hexavalent chromium, there must be less than 0.01% of the substance by weight at raw homogeneous materials level. For Lead, PBB, and PBDE, there must be no more than 0.1% of the material, when calculated by weight at raw homogeneous materials. Any RoHS compliant component must have 100 ppm or less of mercury and the mercury must not have been intentionally added to the component. In the EU, some military and medical equipment are exempt from RoHS compliance. |
|
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 92 mm |
| Depth The distance from the front to the back of something. | 139 mm |
| Height The measurement of the product from head to foot or from base to top. | 53 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 325 g |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 5 - 35 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 50 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Packaging content | |
| Cables included | eSATA,USB |
| Manual |
|
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 162 mm |
| Package depth The distance from the front to the back of the packaging. | 171 mm |
| Package height The distance from the top to the bottom of the packaging. | 93 mm |
| Package weight Weight of the packaged product. | 755 g |
| SKU | 245175 |
| MPN | SDOCKU33EBV |
| Brand | Startech |
| Product Condition | Brand New/Unused |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://www.startech.com/ |
