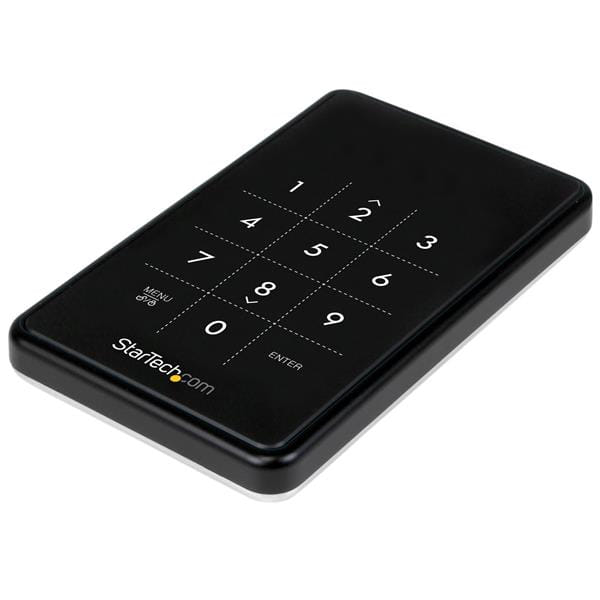

The S2510BU33PW USB 3.0 encrypted hard drive enclosure lets you to turn your 2.5-inch SATA hard drive (HDD) or solid state drive (SSD) into an AES-encrypted external drive.
To ensure all of the data on your drive is protected from unauthorized access, the secure enclosure uses an Advanced Encryption Standard Algorithm (256-bit AES). Once your encryption is set, access to the content is only authorized through a customized PIN that you set and enter using the sleek built-in touchpad. The encryption is hardware based, eliminating the hassle of complicated software installation and configuration.
The hard drive enclosure ensures maximum performance, with support for USB 3.0 transfer speeds up to 5 Gbps. The enclosure also supports SATA III drives, ensuring you can still achieve high performance while accessing your SATA 6 Gbps SSD externally.
The S2510BU33PW is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Connector(s) | |
Drive Connectors | SATA Data & Power Combo (7+15 pin) Receptacle |
Host Connectors | USB 3.0 Micro-B (10 pin, SuperSpeed) Female |
Environmental | |
Humidity | > 70% RH |
Operating Temperature | 0?C to 40?C (32?F to 104?F) |
Storage Temperature | -20?C to 70?C (-4?F to 158?F) |
Hardware | |
Bus Type | USB 3.0 |
Chipset ID | MOLU03 / RENESAAS |
Compatible Drive Types | SATA |
Drive Installation | Fixed |
Drive Size | 2.5in |
Fan(s) | No |
Interface | USB 3.0 |
Number of Drives | 1 |
Indicators | |
LED Indicators | OLED readout display |
Packaging Information | |
Shipping (Package) Weight | 0.3 kg [0.7 lb] |
Performance | |
General Specifications | 256-bit AES Hardware Encryption |
Hot Swap Capability | No |
Max Drive Capacity | Currently tested with up to 1TB 5400 RPM hard drives |
Type and Rate | SATA III (6 Gbps) |
USB 3.0 - 5 Gbit/s | |
UASP Support | No |
Physical Characteristics | |
Color | Black |
Enclosure Type | Steel and Plastic |
Max Drive Height | 9.5 mm [0.4 in] |
Product Height | 14 mm [0.6 in] |
Product Length | 123 mm [4.8 in] |
Product Weight | 94 g [3.3 oz] |
Product Width | 77 mm [3 in] |
Power | |
Power Source | USB-Powered |
Software | |
OS Compatibility | OS independent; No software or drivers required |
Special Notes / Requirements | |
Note | It is recommended that you use this enclosure as additional storage for important files and not as a backup (Unless also regularly backed up) |
What's in the Box | |
Included in Package | Drive case |
Drive installation screws | |
Instruction manual | |
Mini screw driver | |
USB 3.0 Cable | |
USB 3.0 to 2.5" SATA III Enclosure w/Encryption |
Storage | |
Number of storage drives supported How many storage drives can be fit into the product at once. | 1 |
Storage drive size The size of the storage drive, given in inches (''). | 2.5" |
Supported storage drive interfaces | Serial ATA,Serial ATA II,Serial ATA III |
Supported storage drive heights | 7,9.5 mm |
Hot-swap |
![]() |
Maximum storage capacity The maximum amount of data that can be stored in the device. | 1 TB |
Ports & interfaces | |
USB connectivity The product has USB connector. |
![]() |
USB version Universal Serial Bus (USB) is an industry standard developed in the mid-1990s that defines the interface used for connection, communication and power supply between computers and electronic devices. Every new version - for example 1.1, 2.0, 3.0 - is much faster than the previous one. | 3.2 Gen 1 (3.1 Gen 1) |
USB connector type The type of USB connector/port that this product has. | Micro-USB B |
USB connector gender | Female |
USB ports quantity | 1 |
Design | |
Product type The sub-category of the product. | HDD/SSD enclosure |
Product colour The colour e.g. red, blue, green, black, white. | Black |
Material The material from which a thing is or can be made e.g. wood, plastic. | Plastic,Steel |
LED indicators |
![]() |
Built-in display A display which is part of the product, so you do not need to attach another display. |
![]() |
Display type Type of display (screen) e.g. LCD. | OLED |
RoHS compliance The Restriction of Hazardous Substances (RoHS) Directive aims to restrict certain dangerous substances commonly used in electrical and electronic equipment. Any RoHS compliant product is tested for the presence of Lead (Pb), Cadmium (Cd), Mercury (Hg), Hexavalent chromium (Hex-Cr), Polybrominated biphenyls (PBB), and Polybrominated diphenyl ethers (PBDE). PBB and PBDE are flame retardants used in several plastics. For Cadmium and Hexavalent chromium, there must be less than 0.01% of the substance by weight at raw homogeneous materials level. For Lead, PBB, and PBDE, there must be no more than 0.1% of the material, when calculated by weight at raw homogeneous materials. Any RoHS compliant component must have 100 ppm or less of mercury and the mercury must not have been intentionally added to the component. In the EU, some military and medical equipment are exempt from RoHS compliance. |
![]() |
Certification | CE, FCC |
Performance | |
Data transfer rate Rate at which data can be transferred. Usually expressed in units per second. May vary with network configurations. | 6 Gbit/s |
Chipset Set of electronic components in an integrated circuit that manages the data flow between the processor, memory and peripherals. It is usually found in the motherboard of a computer. Chipsets are usually designed to work with a specific family of microprocessors. Because it controls communications between the processor and external devices, the chipset plays a crucial role in determining system performance. | MOLU03 / RENESAAS |
Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product. | 256-bit AES |
UASP support |
![]() |
Hardware encryption |
![]() |
Plug and Play Indicates whether this product supports is "plug and play". Plug and play is hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration. |
![]() |
Power | |
Power source type What the power source is. | USB |
Operational conditions | |
Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 70 °C |
Weight & dimensions | |
Width The measurement or extent of something from side to side. | 77 mm |
Depth The distance from the front to the back of something. | 123 mm |
Height The measurement of the product from head to foot or from base to top. | 14 mm |
Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 94 g |
Package width The distance from one side of the packaging to the other. | 151 mm |
Package depth The distance from the front to the back of the packaging. | 218 mm |
Package height The distance from the top to the bottom of the packaging. | 53 mm |
Package weight Weight of the packaged product. | 326 g |
Packaging content | |
Cables included | USB |
Screws included |
![]() |
Screwdriver included |
![]() |
Manual |
![]() |
SKU | 217581 |
MPN | S2510BU33PW |
Brand | Startech |
Product Condition | Brand New/Unused |
Product Features | Portable |
Warranty Period | 2 Years Warranty |
Warranty Contact | https://www.startech.com/ |
