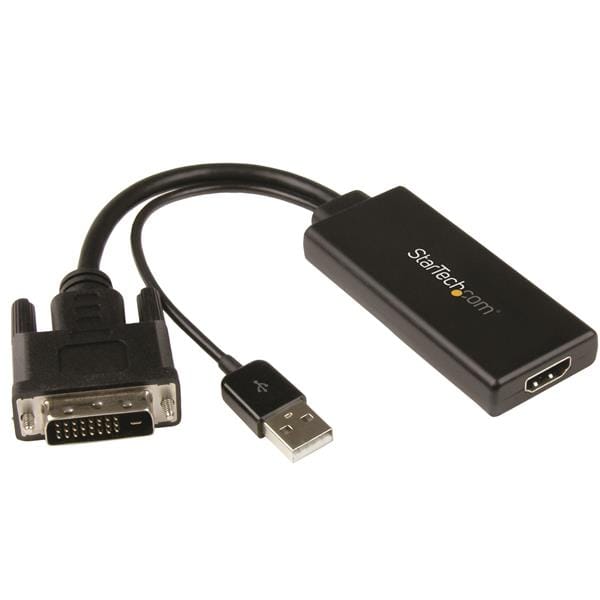

This DVI to HDMI® adapter lets you connect your DVI laptop or desktop computer to an HDMI display or projector. The adapter works with any DVI output, but when you connect it to your Windows® computer, the adapter also supports native USB audio, allowing you to add your computer's audio to the HDMI output signal.
Hassle-free setup
The DVI to HDMI adapter is easy to use. The adapter features plug-and-play installation, so you won't need to load or download any special software, ensuring a fast and easy installation. The adapter also features a small footprint, ensuring it discreetly blends into your desktop setup, unlike bulky DVI adapter boxes that take up a lot of desk space.
If you want to transmit video only, you can just use the DVI connection. If you want to transmit audio as well as video, you can also plug in the USB connector. With no external power adapter needed, you have everything that you need in one compact solution.
Crystal-clear high-definition video
This adapter ensures that you're harnessing HD video quality from your DVI output, with support for resolutions up to 1080p.
The DVI2HD is backed by a StarTech.com 2-year warranty and free lifetime technical support.
| Connector(s) | |
| Connector A | DVI-D (25 pin) Male Input |
| Connector B | HDMI (19 pin) Female Output |
| Environmental | |
| Humidity | 40%-50%RH |
| Operating Temperature | 0?C to 70?C (32?F to 158?F) |
| Storage Temperature | -10?C to 55?C (14?F to 131?F) |
| Hardware | |
| Adapter Style | Adapters |
| Audio | Yes |
| Chipset ID | LT8522EX - CM108AH |
| Converter Type | Active |
| Output Signal | HDMI |
| Packaging Information | |
| Shipping (Package) Weight | 0.1 kg [0.3 lb] |
| Performance | |
| Audio Specifications | 2-channel stereo audio |
| Maximum Digital Resolutions | 1920 x 1080p at 60Hz |
| Supported Resolutions | 1920x1080 (1080p) 1680x1050 (WSXGA+) 1600x1200 1600x900 1440x900 1400x1050 (SXGA+) 1366x768 1360x768 1280x1024 1280x960 1280x800 1280x768 (WXGA) 1280x720p (720p) 1280x600 1152x864 1024x768 800x600 (SVGA) 640x480 (480p) |
| Wide Screen Supported | Yes |
| Physical Characteristics | |
| Color | Black |
| Enclosure Type | Plastic |
| Product Height | 14 mm [0.6 in] |
| Product Length | 257 mm [10.1 in] |
| Product Weight | 64 g [2.3 oz] |
| Product Width | 35 mm [1.4 in] |
| What's in the Box | |
| Included in Package | DVI to HDMI adapter |
| quick install guide | |
| Video | |
| Maximum video resolution This is the maximum resolution of video images. Resolution is a measure of the degree of detail visible. | 1920 x 1080 pixels |
| Video resolutions The amount of detail that can be seen in the video image. | 640 x 480,800 x 600,1024 x 768,1280 x 1024,1280 x 720,1280 x 768,1280 x 800,1280 x 960,1366 x 768,1600 x 1200,1680 x 1050,1920 x 1080 |
| Supported video modes The video modes that can be displayed by the device. | 480p,720p,1080p |
| Maximum refresh rate | 60 Hz |
| Audio | |
| Audio output channels An audio output channel is an electric circuit which acts as a path for a signal produced by a device. A device may have several audio output channels. | 2.0 channels |
| Other features | |
| Converter type | Active video converter |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Housing material What the casing of the product is made of. | Plastic |
| Plug and Play Indicates whether this product supports is "plug and play". Plug and play is hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration. |
 |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 1920 x 1080 pixels |
| Supported resolutions | 1680x1050 (WSXGA+) 1600x1200 1600x900 1440x900 1400x1050 (SXGA+) 1366x768 1360x768 1280x1024 1280x960 1280x800 1280x768 (WXGA) 1280x720p (720p) 1280x600 1152x864 1024x768 800x600 (SVGA) 640x480 (480p) |
| Chipset Set of electronic components in an integrated circuit that manages the data flow between the processor, memory and peripherals. It is usually found in the motherboard of a computer. Chipsets are usually designed to work with a specific family of microprocessors. Because it controls communications between the processor and external devices, the chipset plays a crucial role in determining system performance. | LT8522EX - CM108AH |
| RoHS compliance The Restriction of Hazardous Substances (RoHS) Directive aims to restrict certain dangerous substances commonly used in electrical and electronic equipment. Any RoHS compliant product is tested for the presence of Lead (Pb), Cadmium (Cd), Mercury (Hg), Hexavalent chromium (Hex-Cr), Polybrominated biphenyls (PBB), and Polybrominated diphenyl ethers (PBDE). PBB and PBDE are flame retardants used in several plastics. For Cadmium and Hexavalent chromium, there must be less than 0.01% of the substance by weight at raw homogeneous materials level. For Lead, PBB, and PBDE, there must be no more than 0.1% of the material, when calculated by weight at raw homogeneous materials. Any RoHS compliant component must have 100 ppm or less of mercury and the mercury must not have been intentionally added to the component. In the EU, some military and medical equipment are exempt from RoHS compliance. |
|
| Certification | REACH, CE, FCC |
| Ports & interfaces | |
| Host interface Interface that enables a host controller to communicate with a driver. | DVI-D |
| Output interface The ports (sockets) where the device is connected via connectors and cables to external devices. | HDMI |
| Power | |
| USB powered The device can be powered via a USB connection. |
|
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 70 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -10 - 55 °C |
| Operating relative humidity (H-H) | 40 - 50% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 35 mm |
| Depth The distance from the front to the back of something. | 257 mm |
| Height The measurement of the product from head to foot or from base to top. | 14 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 50.1 g |
| Packaging data | |
| Quick installation guide |
|
| Package width The distance from one side of the packaging to the other. | 147 mm |
| Package depth The distance from the front to the back of the packaging. | 172 mm |
| Package height The distance from the top to the bottom of the packaging. | 32 mm |
| Package weight Weight of the packaged product. | 126 g |
| SKU | 240926 |
| MPN | DVI2HD |
| Brand | Startech |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Warranty Period | 3 Years Warranty |
| Warranty Contact | https://www.startech.com/ |
