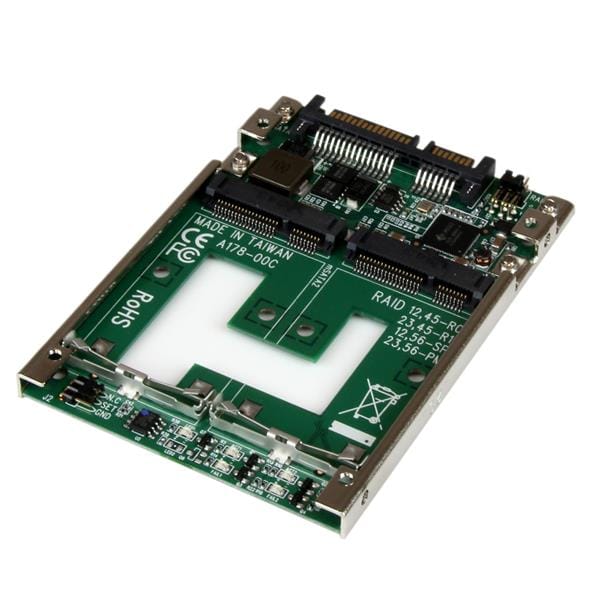

Vastly increase system performance by adding a dual mSATA SSD RAID array into any 2.5" SATA HDD application with the 25SAT22MSAT mSATA to SATA adapter.
Utilize the full potential of your SATA III controller, with mSATA SSDs reducing your data transfer bottleneck with file transfer speeds up to 6 Gbps. mSATA SSDs also save you money by reducing your power consumption over regular platter drives.
You can achieve greater SSD capacity, or data redundancy with the Dual SSD controller supporting multiple RAID modes (RAID 0, 1, BIG). The SSD adapter also supports non-RAID operation (JBOD) when paired with a port-multiplying SATA controller, so both drives can be used independent of one another.
Help protect the health of your drive with an open-frame design ensuring maximum heat dissipation.
The 25SAT22MSAT is backed by a StarTech.com 2-year warranty, and lifetime technical support.
| Connector(s) | |
| Drive Connectors | mSATA (52 pin, Mini SATA) Receptacle |
| Host Connectors | SATA Data & Power Combo (7+15 pin) Receptacle |
| Environmental | |
| Operating Temperature | -40?C to 85?C (-40?F to 185?F) |
| Hardware | |
| Chipset ID | JMicron JMS562 |
| Compatible Drive Types | mSATA (Mini SATA) |
| Drive Installation | Fixed |
| Drive Size | mSATA (Full Size & Half Size) |
| Interface | SATA |
| Number of Drives | 2 |
| Indicators | |
| LED Indicators | Drive #1 Activity |
| Drive #1 Failure | |
| Drive #2 Activity | |
| Drive #2 Failure | |
| Packaging Information | |
| Shipping (Package) Weight | 108 g [3.8 oz] |
| Performance | |
| Hot Swap Capability | No |
| Maximum Data Transfer Rate | 6 Gbps |
| MTBF | 5,101,299 Hours |
| Port Multiplier | Yes |
| RAID | Yes |
| Supported RAID Modes | BIG (Spanning or Concatenation) |
| JBOD - (Just a Bunch of Disks) | |
| RAID 0 (Striped Disks) | |
| RAID 1 (Mirrored Disks) | |
| Type and Rate | SATA III (6 Gbps) |
| Physical Characteristics | |
| Enclosure Type | Steel, Aluminum and Plastic |
| Product Height | 7 mm [0.3 in] |
| Product Length | 97 mm [3.8 in] |
| Product Weight | 39 g [1.4 oz] |
| Product Width | 70 mm [2.8 in] |
| Software | |
| OS Compatibility | OS independent; No software or drivers required |
| What's in the Box | |
| Included in Package | Dual mSATA to 2.5in SATA Adapter |
| Install Guide | |
| Mounting screw kit | |
| Ports & interfaces | |
| Host interface Interface that enables a host controller to communicate with a driver. | SATA |
| Output interface The socket (port) where the output connectors are connected. | mSATA |
| SATA revision | 3.0 |
| Port multiplier |
 |
| Design | |
| Internal The product is built in. |
|
| Product colour The colour e.g. red, blue, green, black, white. | Black,Green |
| Mean time between failures (MTBF) Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism. | 5101299 h |
| Hot-swap |
 |
| RoHS compliance The Restriction of Hazardous Substances (RoHS) Directive aims to restrict certain dangerous substances commonly used in electrical and electronic equipment. Any RoHS compliant product is tested for the presence of Lead (Pb), Cadmium (Cd), Mercury (Hg), Hexavalent chromium (Hex-Cr), Polybrominated biphenyls (PBB), and Polybrominated diphenyl ethers (PBDE). PBB and PBDE are flame retardants used in several plastics. For Cadmium and Hexavalent chromium, there must be less than 0.01% of the substance by weight at raw homogeneous materials level. For Lead, PBB, and PBDE, there must be no more than 0.1% of the material, when calculated by weight at raw homogeneous materials. Any RoHS compliant component must have 100 ppm or less of mercury and the mercury must not have been intentionally added to the component. In the EU, some military and medical equipment are exempt from RoHS compliance. |
|
| Certification | CE, FCC |
| Features | |
| Chipset Set of electronic components in an integrated circuit that manages the data flow between the processor, memory and peripherals. It is usually found in the motherboard of a computer. Chipsets are usually designed to work with a specific family of microprocessors. Because it controls communications between the processor and external devices, the chipset plays a crucial role in determining system performance. | JMicron JMS562 |
| Data transfer rate (max) | 6 Gbit/s |
| RAID levels RAID is a storage technology that combines multiple disk drive components into a logical unit for the purposes of data redundancy and performance improvement. Data is distributed across the drives in one of several ways, referred to as RAID levels, depending on the specific level of redundancy and performance required. | 0,1,BIG,JBOD |
| Plug and Play Indicates whether this product supports is "plug and play". Plug and play is hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration. |
|
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -40 - 85 °C |
| System requirements | |
| Windows operating systems supported Windows vesions wich can be used with the device. |
|
| Mac operating systems supported Mac operating systems e.g. OS X can be used with the device. |
|
| Linux operating systems supported 8 RT. Linux (9.4, 9.5), Red Hat Enterprise Linux 5.0 (supported with a pre-built package); SUSE Linux (10.3, 11.0, 11, 11.1, 11.2), Fedora (9, 9.0, 10, 10.0, 11.0, 11, 12, 12.0), Ubuntu (8.04, 8.04.1, 8.04.2, 8.10, 9.04, 9.10, 10.04), Debian (5.0, 5.0.1, 5.0.2, 5.0.3) |
|
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 70 mm |
| Depth The distance from the front to the back of something. | 97 mm |
| Height The measurement of the product from head to foot or from base to top. | 7 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 39 g |
| Packaging data | |
| Mounting brackets included |
|
| Quick installation guide |
|
| Package width The distance from one side of the packaging to the other. | 174 mm |
| Package depth The distance from the front to the back of the packaging. | 145 mm |
| Package height The distance from the top to the bottom of the packaging. | 32 mm |
| Package weight Weight of the packaged product. | 107 g |
| Other features | |
| Compatible operating systems List of desktop operating systems tested as compatible with this product. | Windows XP (32/64-bit)/ Server 2003 (32/64-bit)/ Server 2008 R2/ Server 2012/ Vista (32/64-bit)/ 7 (32/64-bit)/ 8/8.1 (32/64-bit) Mac OS X Linux |
| Package length | 5.59 |
| SKU | 239050 |
| MPN | 25SAT22MSAT |
| Brand | Startech |
| Product Condition | Brand New/Unused |
| Warranty Period | 2 Years Warranty |
