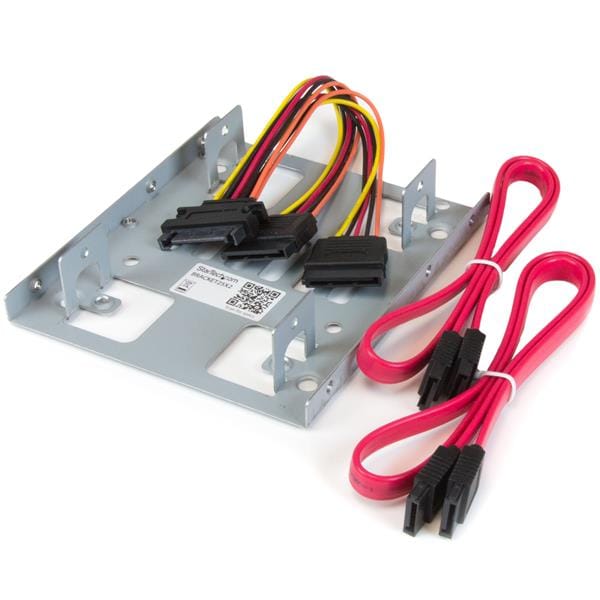

Startech Dual 2.5 SATA Hard Drive/SSD to 3.5 Bay Mounting Bracket Adapter

Item No:
210441
MPN:
BRACKET25X2
$21.00

Startech Dual 2.5 SATA Hard Drive/SSD to 3.5 Bay Mounting Bracket Adapter

$21.00
Payment options
Shipping Information
  • Available for shipping
  • Usually leaves our partner warehouse in 1-2 business days
Store Availability
  • 2-3 business days at Bankstown
  • 2-3 business days at Blacktown
  • 2-3 business days at Castle Hill
Shipping Estimate
Steel Construction, SATA Data & Power Cable Included

The BRACKET25X2 Dual hard drive mounting bracket kit lets you install two 2.5in SATA hard drives (HDD) or solid state drives (SSD) into a single 3.5in mounting bay -- enabling you to significantly increase the performance of your desktop by adding the speed of a 2.5in SSD.

Maximize the internal mounting space of your computer, by installing two 2.5in hard drives in the same 3.5in bay. The bracket can be used with SATA hard drives and solid states

For a hassle-free installation, the hard drive mounting kit includes all required data and power cabling for both SATA drives. Plus, the bracket can support IDE drives when using our 2.5in to 3.5in IDE Hard Drive cable adapter (IDE4044).

The BRACKET25X2 features solid steel construction, and is backed by a StarTech.com lifetime warranty and free lifetime technical support.

SSD drive installation



Hardware
InterfaceSATA
Packaging Information
Shipping (Package) Weight210 g [7.4 oz]
Physical Characteristics
Enclosure TypeSteel
Product Height22 mm [0.9 in]
Product Length116 mm [4.6 in]
Product Weight150 g [5.3 oz]
Product Width102 mm [4 in]
What's in the Box
Included in Package6-32 Screws (case mount)
Drive mounting screw kit
Dual 2.5" mounting bracket
Flat screws and washers (bottom drive)
M3x5mm screws (top drive)
quick-start guide
SATA data cables
SATA Power Y cable
Features
Size (imperial) Physical dimension. 8.89 cm (3.5")
Type Characteristics of the device. Carrier panel
Number of HDDs supported The total number of hard drives that can be used in/with this product. 2
HDD size The amount of data that the hard drive can store. 2.5"
Product colour The colour e.g. red, blue, green, black, white. Stainless steel
Material The material from which a thing is or can be made e.g. wood, plastic. Steel
Certification REACH, CE, TAA
RoHS compliance The Restriction of Hazardous Substances (RoHS) Directive aims to restrict certain dangerous substances commonly used in electrical and electronic equipment. Any RoHS compliant product is tested for the presence of Lead (Pb), Cadmium (Cd), Mercury (Hg), Hexavalent chromium (Hex-Cr), Polybrominated biphenyls (PBB), and Polybrominated diphenyl ethers (PBDE). PBB and PBDE are flame retardants used in several plastics. For Cadmium and Hexavalent chromium, there must be less than 0.01% of the substance by weight at raw homogeneous materials level. For Lead, PBB, and PBDE, there must be no more than 0.1% of the material, when calculated by weight at raw homogeneous materials. Any RoHS compliant component must have 100 ppm or less of mercury and the mercury must not have been intentionally added to the component. In the EU, some military and medical equipment are exempt from RoHS compliance.
Weight & dimensions
Width The measurement or extent of something from side to side. 102 mm
Depth The distance from the front to the back of something. 116 mm
Height The measurement of the product from head to foot or from base to top. 22 mm
Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. 73 g
Packaging data
Package dimensions (WxDxH) Dimensions of the packaged product (Width x Depth x Height). 140 x 165 x 38 mm
Package width The distance from one side of the packaging to the other. 140 mm
Package depth The distance from the front to the back of the packaging. 165 mm
Package height The distance from the top to the bottom of the packaging. 38 mm
Package weight Weight of the packaged product. 190 g
Packaging content
Quick start guide Instructions, either online, as a computer program or in paper form, to allow you to set up and start using the product quickly.
Cables included SATA
Screws included
Number of lock keys included 13 pc(s)
More Information
SKU 210441
MPN BRACKET25X2
Brand Startech
Product Condition Brand New/Unused
Adapter Type IDE Adapter
Stock Availability Available for Shipping
Warranty Period Limited Lifetime Warranty
Warranty Contact https://www.startech.com/
