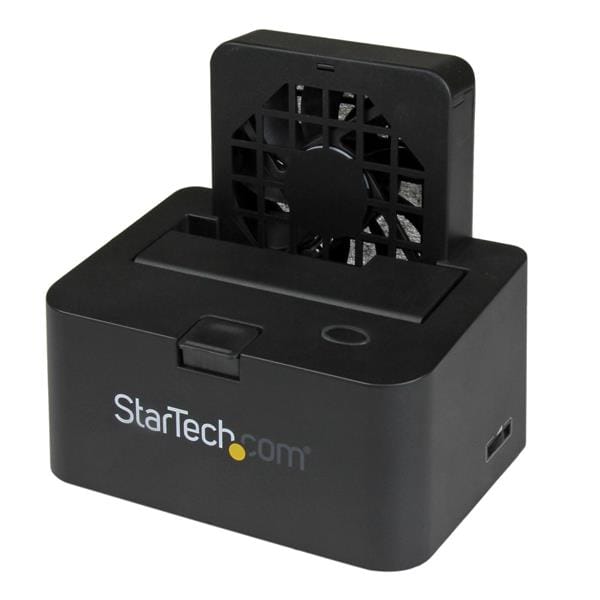

This USB 3.0 and eSATA docking station makes it easy for you to connect and swap your 2.5in or 3.5in SATA hard drives (HDD) and solid-state drives (SSD). The docking station also has a built-in fan that keeps your drives running at an optimal temperature for peak performance and longer drive lifespan.
Maximize compatibility
With support for either USB 3.0 or eSATA host connections, this versatile drive dock gives you the freedom to connect to your computer through either port. Because USB is available on virtually any computer, you can rest assured that this docking station will work with your desktop or laptop. Plus, the added benefit of eSATA ensures you can achieve SATA 6 Gpbs performance on computers with an available eSATA port.
To ensure all your drives are supported, the docking station features a sleek slot-loading design that supports both 2.5in and 3.5in drives. The docking station has also been rigorously tested for support with large capacity drives (tested up to 6TB).
You can extend the compatibility of this dock even further by adding IDE support using our SATA to IDE Hard Drive Adapter (SAT2IDEADP), which allows for easy insertion of any 2.5 or 3.5in IDE hard drive into a SATA hard drive dock.
Protect the health of your drives
For optimal performance, the docking station has a built-in 80mm fan that helps keep your drives running cooler. The fan offers variable speed control which enables you to make adjustments on the fly, in order to reduce power consumption and noise when your drives aren't being accessed. The HDD dock will also power down your SATA drives after a period of inactivity (USB mode only) or when the computer is turned off, to help reduce power consumption and noise when not being accessed.
Improve Performance
To save you time, this docking station is loaded with high-performance features on both interface connections.
For the fastest possible performance, this dock supports full SATA III bandwidth of 6 Gbps when connected through eSATA, ensuring you can get the most out of your solid-state drives.
With USB 3.0 the dock ensures high-bandwidth transfer speeds up to 5 Gbps. The USB host interface connection also supports UASP, which delivers performance up to 70% faster than conventional USB 3.0 when paired with a compatible host controller. UASP is supported in Windows 8, Mac OSX (10.8 or above), and Linux. In testing, UASP performs with a 70% faster read speed and 40% faster write speed over traditional USB 3.0 at peak performance.
At the same peak in testing UASP also shows an 80% reduction in required processor resources.
Testing results were obtained using an Intel® Ivy Bridge system, a UASP-enabled StarTech.com enclosure, and a SATA III solid state drive.
The SDOCKU33EF is backed by a 2-year StarTech.com warranty and free lifetime technical support.
| Connector(s) | |
| Drive Connectors | SATA Data & Power Combo (7+15 pin) Receptacle |
| Host Connectors | eSATA (7 pin, Data) Female |
| USB Type-B (9 pin) USB 3.0 Female | |
| Other Interface(s) | eSATA (7 pin, Data) Male |
| USB Type-A (4 pin) USB 2.0 Male | |
| USB Type-A (9 pin) USB 3.0 Male | |
| Environmental | |
| Humidity | 8~90% RH |
| Operating Temperature | 5?C to 80?C (41?F to 176?F) |
| Storage Temperature | -40?C to 70?C (-40?F to 158?F) |
| Hardware | |
| Bus Type | USB 3.0 & eSATA |
| Chipset ID | JMicron - JMS561 |
| Compatible Drive Types | SATA |
| Drive Installation | Removable |
| Drive Size | 2.5in & 3.5in |
| Fan(s) | Yes |
| Fans | 80 mm |
| Interface | USB 3.0 & eSATA |
| Number of Drives | 1 |
| Indicators | |
| LED Indicators | Drive Power/Activity |
| Power | |
| Packaging Information | |
| Shipping (Package) Weight | 1 kg [2.2 lb] |
| Performance | |
| Hot Swap Capability | Yes |
| Max Drive Capacity | Currently tested with up to 6TB 7200 RPM 3.5" hard drives and 2TB 7200 RPM 2.5" hard drives |
| Maximum Data Transfer Rate | eSATA - 6 Gbps USB 3.0 - 5 Gbps |
| Type and Rate | SATA III (6 Gbps) |
| USB 3.0 - 5 Gbit/s | |
| UASP Support | Yes |
| Physical Characteristics | |
| Color | Black |
| Enclosure Type | Plastic |
| Product Height | 134 mm [5.3 in] |
| Product Length | 126 mm [5 in] |
| Product Weight | 477 g [16.8 oz] |
| Product Width | 95 mm [3.7 in] |
| Power | |
| Center Tip Polarity | Positive |
| Input Current | 0.8 A |
| Input Voltage | 110V-240V AC |
| Output Current | 2 A |
| Output Voltage | 12 DC |
| Plug Type | M |
| Power Consumption (In Watts) | 24 |
| Power Source | AC Adapter Included |
| Software | |
| OS Compatibility | OS independent; No software or drivers required |
| What's in the Box | |
| Included in Package | 1m eSATA Cable |
| 1m USB 3.0 Cable | |
| eSATA / USB 3.0 SATA HDD DOCK | |
| Instruction Manual | |
| Universal Power Adapter (NA/UK/EU/AUS) | |
| Hard drive | |
| Storage media type Type of storage medium, like flash, hard disk drive, etc. | HDD,SSD |
| Storage drive interface Where the storage device links with other parts of the product, or an external device. | Serial ATA |
| Storage drive sizes supported The sizes of storage drives that can be used with the product. | 2.5,3.5" |
| Number of storage drives supported How many storage drives can be fit into the product at once. | 1 |
| Maximum storage capacity The maximum amount of data that can be stored in the device. | 6 TB |
| Ports & interfaces | |
| Host interface Interface that enables a host controller to communicate with a driver. | USB 3.2 Gen 1 (3.1 Gen 1) Type-B + eSATA |
| USB 3.2 Gen 1 (3.1 Gen 1) ports quantity The number of USB 3.0 ports (sockets). USB 3.0 was released in November 2008. The standard defines a new SuperSpeed mode with a signaling speed of 5 Gbit/s and a usable data rate of up to 4 Gbit/s. A USB 3.0 port is usually colored blue, and is backwards compatible with USB 2.0. | 1 |
| eSATA ports quantity The number of ports (interfaces) for eSATA. eSATA is a a computer bus interface that connects host bus adapters to mass storage devices such as hard disk drives and optical drives. | 1 |
| DC-in jack The socket/plug where the DC electricity supply connects to the device. |
 |
| Features | |
| Maximum data transfer rate | 6 Gbit/s |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Material The material from which a thing is or can be made e.g. wood, plastic. | Plastic |
| Hot-swap |
|
| Plug and Play Indicates whether this product supports is "plug and play". Plug and play is hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration. |
|
| LED indicators | Activity,Power |
| UASP support |
|
| Chipset Set of electronic components in an integrated circuit that manages the data flow between the processor, memory and peripherals. It is usually found in the motherboard of a computer. Chipsets are usually designed to work with a specific family of microprocessors. Because it controls communications between the processor and external devices, the chipset plays a crucial role in determining system performance. | JMircon - JMS561 |
| Certification | CE, FCC |
| Cooling | |
| Built-in fan |
|
| Number of fans The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation). | 1 fan(s) |
| Fan diameter The size of the fan, measured by the distance from one side of the fan to the other, via a straight line going through the middle of the fan. | 8 cm |
| Power | |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 110-240 V |
| Input current | 0.8 A |
| Output voltage | 12 V |
| Output current | 2 A |
| Power plug type | Type M |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 95 mm |
| Depth The distance from the front to the back of something. | 126 mm |
| Height The measurement of the product from head to foot or from base to top. | 134 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 477 g |
| Packaging content | |
| AC adapter included |
|
| Cables included | eSATA,USB |
| Manual |
|
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 5 - 80 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 70 °C |
| Operating relative humidity (H-H) | 8 - 90% |
| Packaging data | |
| Package dimensions (WxDxH) Dimensions of the packaged product (Width x Depth x Height). | 117 x 185 x 210 mm |
| Package width The distance from one side of the packaging to the other. | 187 mm |
| Package depth The distance from the front to the back of the packaging. | 121 mm |
| Package height The distance from the top to the bottom of the packaging. | 211 mm |
| Package weight Weight of the packaged product. | 957 g |
| SKU | 245182 |
| MPN | SDOCKU33EF |
| Brand | Startech |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://www.startech.com/ |
