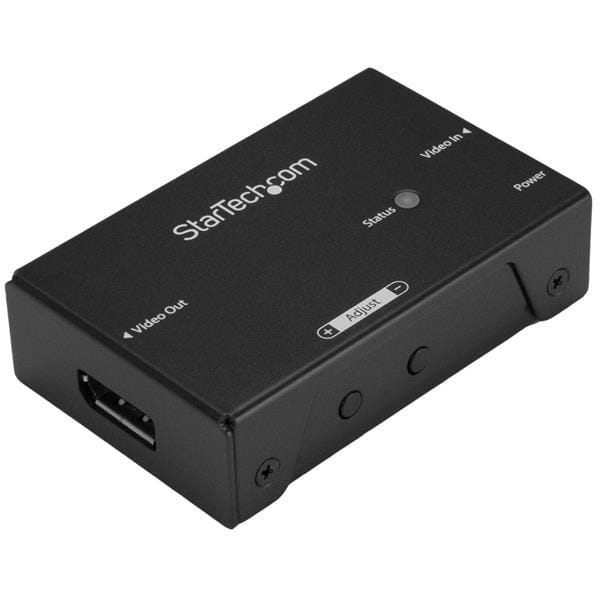

This DisplayPort signal booster lets you increase the signal strength of your DP video source using standard DisplayPort cables. You can achieve resolutions up to 4K at 60Hz, and depending on your desired resolution, the booster supports varying distances up to 65 ft. (20 m) away at 1080p 60Hz resolution. For inline installations, you can place the booster between two DisplayPort cables, up to 50 ft. in length at the video input, and up to 15 ft. in length at the video output.
Maintains Ultra HD 4K video signals
When extending DisplayPort over long distances using standard video cabling, higher resolutions can become unavailable. Using the DP signal booster ensures that you can depend on UHD resolutions up to 4K at 60Hz at up to 22 ft. (7 m). You can achieve even greater distances with lower resolution support -- up to 4K at 30Hz, at up to 42 ft. (13 m), and 1080p at 60Hz at up to 65 ft. (20 m).
Easy and discreet installation
With its small form factor, the DisplayPort booster is easy to hide, for a discreet installation. It includes mounting hardware, so installing it is hassle-free. By extending your video signal using standard DP cables, the DisplayPort booster is a cost-effective alternative to more expensive extension systems that require the installation of a CAT5 or CAT6 cabling infrastructure.
Compatible with varying distances
The booster makes it easy to adjust your DisplayPort signal strength based on the distance of your cables, with equalization adjustment buttons. This means that you can adjust the amplification of your DisplayPort signal, to ensure your DisplayPort signal will be flawless even at distances up to 65 ft. (20 m). Support for varying distances makes the booster perfect for multi-device deployment across large institutions, such as boardrooms in corporate offices, classrooms in schools, or waiting rooms in hospitals, as these applications may require varied distances in different rooms.
The DPBOOST is backed by a 2-year StarTech.com warranty and free lifetime technical support.
| Connector(s) | |
| Connector A | DisplayPort (20 pin) Female Input |
| Connector B | DisplayPort (20 pin) Female Output |
| Environmental | |
| Humidity | 0% ~ 80% |
| Operating Temperature | 0?C to 40?C (32?F to 104?F) |
| Storage Temperature | -10?C to 60?C (14?F to 140?F) |
| Hardware | |
| Audio | Yes |
| Cabling | DisplayPort |
| Rack-Mountable | Yes |
| Indicators | |
| LED Indicators | status LED |
| Packaging Information | |
| Shipping (Package) Weight | 0.4 kg [0.9 lb] |
| Performance | |
| Max Distance | 20 m / 66 ft |
| Maximum Cable Length | 20 m [65.6 ft] |
| Maximum Digital Resolutions | At 7 m Up to 4K at 60Hz At 13 m Up to 4K at 30Hz At 15m Up to 2560x1600 at 60Hz At 20 m Up to 1080p |
| Supported Resolutions | 3840x2160 (4K), 2560x1600, 1920x1200, 1920x1080 (1080p), 1280x720 (720p) |
| Wide Screen Supported | Yes |
| Physical Characteristics | |
| Product Height | 21 mm [0.8 in] |
| Product Length | 80 mm [3.1 in] |
| Product Weight | 152 g [5.4 oz] |
| Product Width | 50 mm [2 in] |
| Power | |
| Center Tip Polarity | Positive |
| Input Current | 0.3A |
| Input Voltage | 100 ~ 240 AC |
| Output Current | 1 A |
| Output Voltage | 5 DC |
| Power Consumption (In Watts) | 5 |
| Power Source | AC Adapter Included |
| What's in the Box | |
| Included in Package | DisplayPort signal booster |
| power adapter | |
| rubber feet | |
| USB power cable | |
| Features | |
| Type Characteristics of the device. | AV repeater |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 3840 x 2160 pixels |
| Maximum transfer distance The greatest distance over which the data/signal can be transferred. | 20 m |
| Audio system System used to play music or speech. | Multichannel |
| Audio output channels An audio output channel is an electric circuit which acts as a path for a signal produced by a device. A device may have several audio output channels. | 7.1 channels |
| Supported video modes The video modes that can be displayed by the device. | 720p,1080p,2160p |
| Supported graphics resolutions The graphic resolutions that can be displayed by the device. The graphic resolution describes the width and height dimensions of a display, such as a computer monitor, measured in pixels. | 1280 x 720 (HD 720),1920 x 1200 (WUXGA),2560 x 1600 (WQXGA),3840 x 2160 |
| Rack mounting The type of mounting that can position devices in a shelving system (rack). |
 |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| RoHS compliance The Restriction of Hazardous Substances (RoHS) Directive aims to restrict certain dangerous substances commonly used in electrical and electronic equipment. Any RoHS compliant product is tested for the presence of Lead (Pb), Cadmium (Cd), Mercury (Hg), Hexavalent chromium (Hex-Cr), Polybrominated biphenyls (PBB), and Polybrominated diphenyl ethers (PBDE). PBB and PBDE are flame retardants used in several plastics. For Cadmium and Hexavalent chromium, there must be less than 0.01% of the substance by weight at raw homogeneous materials level. For Lead, PBB, and PBDE, there must be no more than 0.1% of the material, when calculated by weight at raw homogeneous materials. Any RoHS compliant component must have 100 ppm or less of mercury and the mercury must not have been intentionally added to the component. In the EU, some military and medical equipment are exempt from RoHS compliance. |
|
| Certification | CE, FCC |
| Ports & interfaces | |
| Video in | DisplayPort |
| Video out | DisplayPort |
| Power | |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100-240 V |
| Operating voltage Defines the range of operating voltages available | 5 V |
| Input current | 0.3 A |
| Output current | 1 A |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 5 W |
| External power adapter |
|
| Weight & dimensions | |
| Dimensions (WxDxH) Dimensions of the product (Width x Depth x Height). | 50 x 80 x 21 mm |
| Width The measurement or extent of something from side to side. | 50 mm |
| Depth The distance from the front to the back of something. | 80 mm |
| Height The measurement of the product from head to foot or from base to top. | 21 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 152 g |
| Packaging data | |
| Package dimensions (WxDxH) Dimensions of the packaged product (Width x Depth x Height). | 143 x 168 x 63 mm |
| Package width The distance from one side of the packaging to the other. | 142 mm |
| Package depth The distance from the front to the back of the packaging. | 168 mm |
| Package height The distance from the top to the bottom of the packaging. | 70 mm |
| Package weight Weight of the packaged product. | 398 g |
| Packaging content | |
| AC adapter included |
|
| Cables included | USB |
| Technical details | |
| Audio support |
|
| SKU | 240891 |
| MPN | DPBOOST |
| Brand | Startech |
| Product Condition | Brand New/Unused |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://www.startech.com/ |
