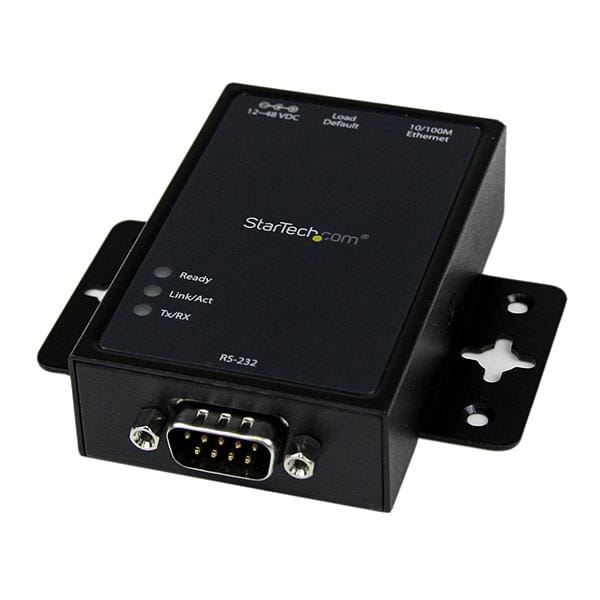

This 1-port serial device server is an effective serial-over-IP solution that lets you connect to, configure, and remotely manage an RS232 serial device over a LAN (Local Area Network).
For more control options, the device server is compatible with the free, StarTech.com Serial Device Application Software (NETRSAPP). When coupled with the NETRS2321P, this handy application for iOS, Android, and Chrome Browser lets you build a custom serial control interface that?s tailored to your specific application.
Access your serial devices remotely
The versatile device server is designed to function seamlessly with your integrated serial ports, while offering baud rates faster than many other device servers (up to 460.8Kbps).The device server provides the tools you need to communicate with remote RS-232 devices as if they were directly connected.
Flexible setup and operation
It offers versatile browser-based or Virtual COM port software configuration for customizing the device to suit your application. Plus, the software communicates directly with the device server, so it can be used in Virtual Machine (VM) environments if you have multiple VMs sharing the same set of hardware.
The device server also offers remote Telnet configuration and support for IP, HTTP, ICMP, DHCP, ARP, TCP and UDP protocols.
Aluminum housing provides durability you can count on
With a sturdy aluminum housing and DIN rail or surface mounting brackets, the serial device server provides a durable remote serial interface for industrial automation, security, Point of Sale and many other applications.
Download the application software and manage your serial devices with ease
Download the StarTech.com serial control software from the Apple App Store, the Google Play™ Store, or the Chrome Web Store.
|
|
|
|
The NETRS2321P is backed by a StarTech.com 2-year warranty and free lifetime technical support.
| Connector(s) | |
| External Ports | DB-9 (9 pin, D-Sub) Male |
| RJ-45 Female | |
| Environmental | |
| Humidity | 0~90% RH (Non-condensing) |
| Operating Temperature | 0?C to 60?C (32?F to 140?F) |
| Storage Temperature | -10?C to 70?C (14?F to 158?F) |
| Hardware | |
| Interface | Serial |
| Ports | 1 |
| Indicators | |
| LED Indicators | Link / Act |
| Ready | |
| Tx / Rx | |
| Packaging Information | |
| Shipping (Package) Weight | 430 g [15.2 oz] |
| Performance | |
| Auto MDIX | Yes |
| Compatible Networks | 10/100 Mbps |
| Data Bits | 5, 6, 7, 8 |
| Flow Control | RTS/CTS, None |
| Max Baud Rate | 460.8 Kbps |
| Parity | Even, Odd, None |
| Serial Protocol | RS-232 |
| Stop Bits | 1, 1.5, 2 |
| Supported Protocols | DHCP, TCP/IP, UDP, HTTP, ICMP, ARP, Telnet |
| Physical Characteristics | |
| Color | Black |
| Enclosure Type | Aluminum |
| Product Height | 23 mm [0.9 in] |
| Product Length | 86 mm [3.4 in] |
| Product Weight | 90 g [3.2 oz] |
| Product Width | 53 mm [2.1 in] |
| Power | |
| Center Tip Polarity | Positive |
| Input Current | 0.36 A |
| Input Voltage | 100 ~ 240 AC |
| Output Current | 1.6 A |
| Output Voltage | 12 DC |
| Plug Type | M |
| Power Consumption (In Watts) | 19.2 |
| Power Source | AC Adapter Included |
| Software | |
| OS Compatibility | Windows? 2000, XP, Vista, 7, 8, 8.1, 10 Windows Server? 2003, 2008 R2, 2012, 2012 R2, 2016 Linux: The included software does not support Linux to emulate a local COM port. Linux users would need to use Telnet. |
| What's in the Box | |
| Included in Package | DIN Rail Kit |
| Instruction Manual | |
| Serial over IP Device Server | |
| Software CD | |
| Universal Power Adapter (NA/EU/UK/AU) | |
| SKU | 244041 |
| MPN | NETRS2321P |
| Brand | Startech |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://www.startech.com/ |
