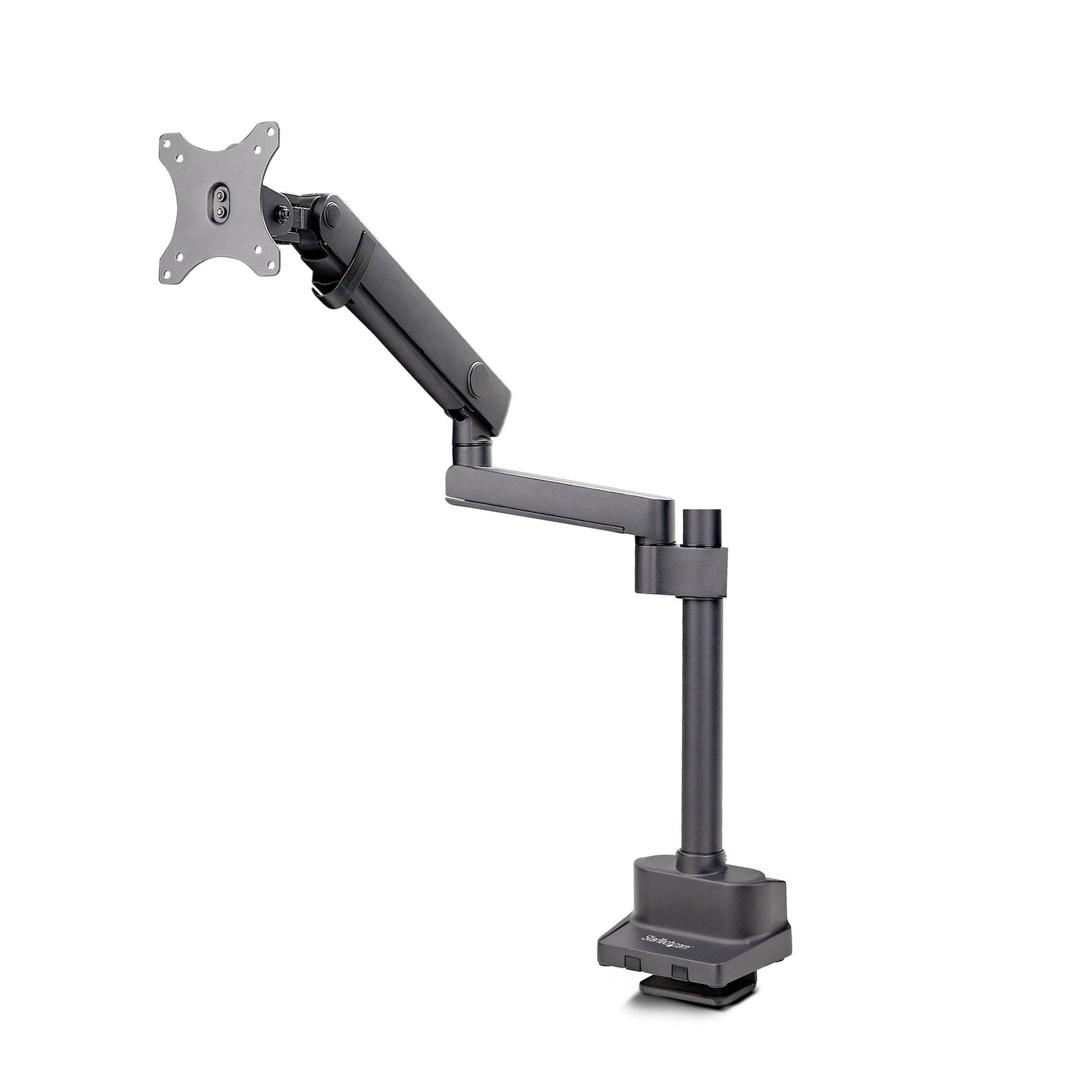

StarTech.com Desk Mount Monitor Arm, Up to 40-inch Screen/17.6lb (8kg), Mechanical Spring-Assisted Arm, C-Clamp/Grommet, Top-Down Installation, Toolless Adjustment, 8 kg, 43.2 cm (17"), 101.6 cm (40"), 100 x 100 mm, Height adjustment, Black
Monitor desk mount with support for up to 40" monitor with height adjustable spring arm
This monitor desk mount creates an ergonomic workspace for productivity and supports up to a 40-inch monitor and a maximum weight of 17.6lb (8kg). The robust mechanical spring ensures long-term durability and allows for smooth arm adjustment to suit different ergonomic needs.
Top-Down Installation
The uniquely design desk clamp simplifies installation by enabling users to tighten the clamp from above using a hex key or a hand drill, eliminating the need to go under the desk. In addition, the desk clamp is designed with a C-clamp and grommet mount to accommodate desks up to 2 inches (50mm) thick, providing flexibility for different desk configurations.
Height Adjustment with One Smooth Motion
Mechanical spring-assisted arm enables a height adjustment range of up to 17.3in (44cm) to a maximum height of 24.4in (62cm) with effortless one-touch motion. The monitor arm can extend up to 23.3in (59.4cm) from the base of the desktop mount.
Range of Motion
Articulating arm enables 180Deg pan, and the quick-release VESA plate features tool-less adjustments of +/-90Deg horizontal swivel, +/-90Deg tilt, and 360Deg screen rotation for portrait or landscape orientations. This flexibility enables users to customize the screen placement for maximum productivity and comfort.
Cable Management
Features a cable management channel along the underside of the swivel arm to keep cables out of sight. Additionally, multiple cable clips help reduce clutter and contribute to a tidy setup.
This monitor desk mount creates an ergonomic workspace for productivity and supports up to a 40-inch monitor and a maximum weight of 17.6lb (8kg). The robust mechanical spring ensures long-term durability and allows for smooth arm adjustment to suit different ergonomic needs.
Top-Down Installation
The uniquely design desk clamp simplifies installation by enabling users to tighten the clamp from above using a hex key or a hand drill, eliminating the need to go under the desk. In addition, the desk clamp is designed with a C-clamp and grommet mount to accommodate desks up to 2 inches (50mm) thick, providing flexibility for different desk configurations.
Height Adjustment with One Smooth Motion
Mechanical spring-assisted arm enables a height adjustment range of up to 17.3in (44cm) to a maximum height of 24.4in (62cm) with effortless one-touch motion. The monitor arm can extend up to 23.3in (59.4cm) from the base of the desktop mount.
Range of Motion
Articulating arm enables 180Deg pan, and the quick-release VESA plate features tool-less adjustments of +/-90Deg horizontal swivel, +/-90Deg tilt, and 360Deg screen rotation for portrait or landscape orientations. This flexibility enables users to customize the screen placement for maximum productivity and comfort.
Cable Management
Features a cable management channel along the underside of the swivel arm to keep cables out of sight. Additionally, multiple cable clips help reduce clutter and contribute to a tidy setup.
| Mounting | |
| Maximum weight capacity The maximum weight that the product is designed to hold/store. | 8 kg |
| Minimum screen size The minimum screen size which can be used with this product. | 43.2 cm (17") |
| Number of displays supported The number of displays that can be used with this product. | 1 |
| Maximum weight capacity (per display) | 8 kg |
| Maximum screen size The maximum screen size which can be used with this product. | 101.6 cm (40") |
| Minimum VESA mount | 75 x 75 mm |
| Maximum VESA mount | 100 x 100 mm |
| Desk thickness (min) | 1 cm |
| Desk thickness (max) | 5 cm |
| Ergonomics | |
| Height adjustment The part of the device that can be adjusted to change the height. |
 |
| Height adjustment range | 180 - 620 mm |
| Depth adjustment range | 419 - 594 mm |
| Tilt adjustment The tilt, which means the angle at which the device is pointing (up or down), can be changed. |
|
| Tilt angle range | -90 - 90° |
| Swivelling |
|
| Swivel angle range | -180 - 180° |
| Rotating Capability to rotate device. |
|
| Angle of rotation | 360° |
| Cable management Description of improved cable management |
|
| Design | |
| Housing material What the casing of the product is made of. | Plastic, Steel |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Anti-theft function |
 |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 115 mm |
| Depth The distance from the front to the back of something. | 703 mm |
| Height The measurement of the product from head to foot or from base to top. | 607 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 3.6 kg |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 435 mm |
| Package depth The distance from the front to the back of the packaging. | 240 mm |
| Package height The distance from the top to the bottom of the packaging. | 117 mm |
| Package weight Weight of the packaged product. | 3.7 kg |
| Packaging content | |
| VESA mount included |
|
| Number of cable clips | 1 |
| Screws included |
|
| Number of screws | 9 |
| Number of washers included | 4 |
| Grommet plate included |
|
| Logistics data | |
| Master (outer) case width | 420 mm |
| Master (outer) case length | 370 mm |
| Master (outer) case height | 335 mm |
| Products per master (outer) case | 4 pc(s) |
| SKU | 829880 |
| MPN | ARMPIVOT2 |
| Brand | Startech |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.startech.com/ |
